10
CAUTION: Before doing any work on the brush cutter, always switch off the motor
and pull the spark plug connector off the spark plug.
Always wear protective gloves.
CAUTION: Start the brush cutter only after having assembled it completely.

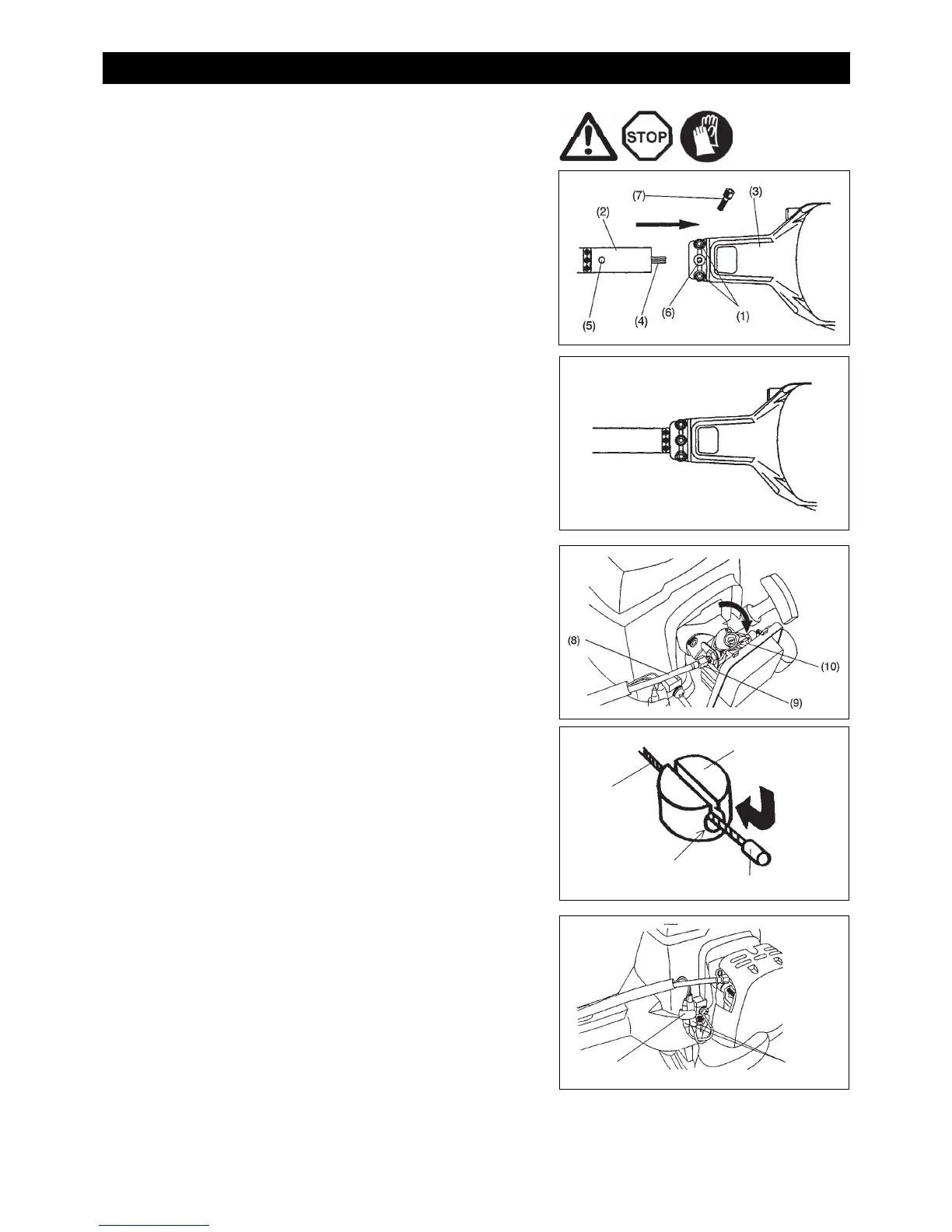

- Loosen the two bolts (1) and insert the main pipe (2) into the case clutch (3).
- Insert it up to the arrow-mark position. (Refer to the sketch on the right.) If it is
difficult to insert, turn the spline (4) a little and re-insert.
- Match the hole (5) of the main pipe (2) with the bolt hole (6) of the case clutch, and
tighten the attached bolts (7).
- Tighten the two bolts (1) uniformly on the right and left by Allen wrench supplied.
How to mount the control cable
- Remove the air cleaner cover.
- Put the control cable (8) into the adjusting cable (9). Shift the swivel (10) and put
the cable into the swivel. At this time, be careful that the round hole in the swivel is
oriented toward the fitting at the inner wire end.
- Release the swivel and make sure that the inner wire fitting is placed in the hole.
- Mount the air cleaner cover.
Connection of the switch cord
Connect the switch cords to the two cords from the engine by inserting one into the
other.
- Fix the cord connector by clamp.
ASSEMBLY OF ENGINE AND SHAFT
