Removing and installing the timing case
113

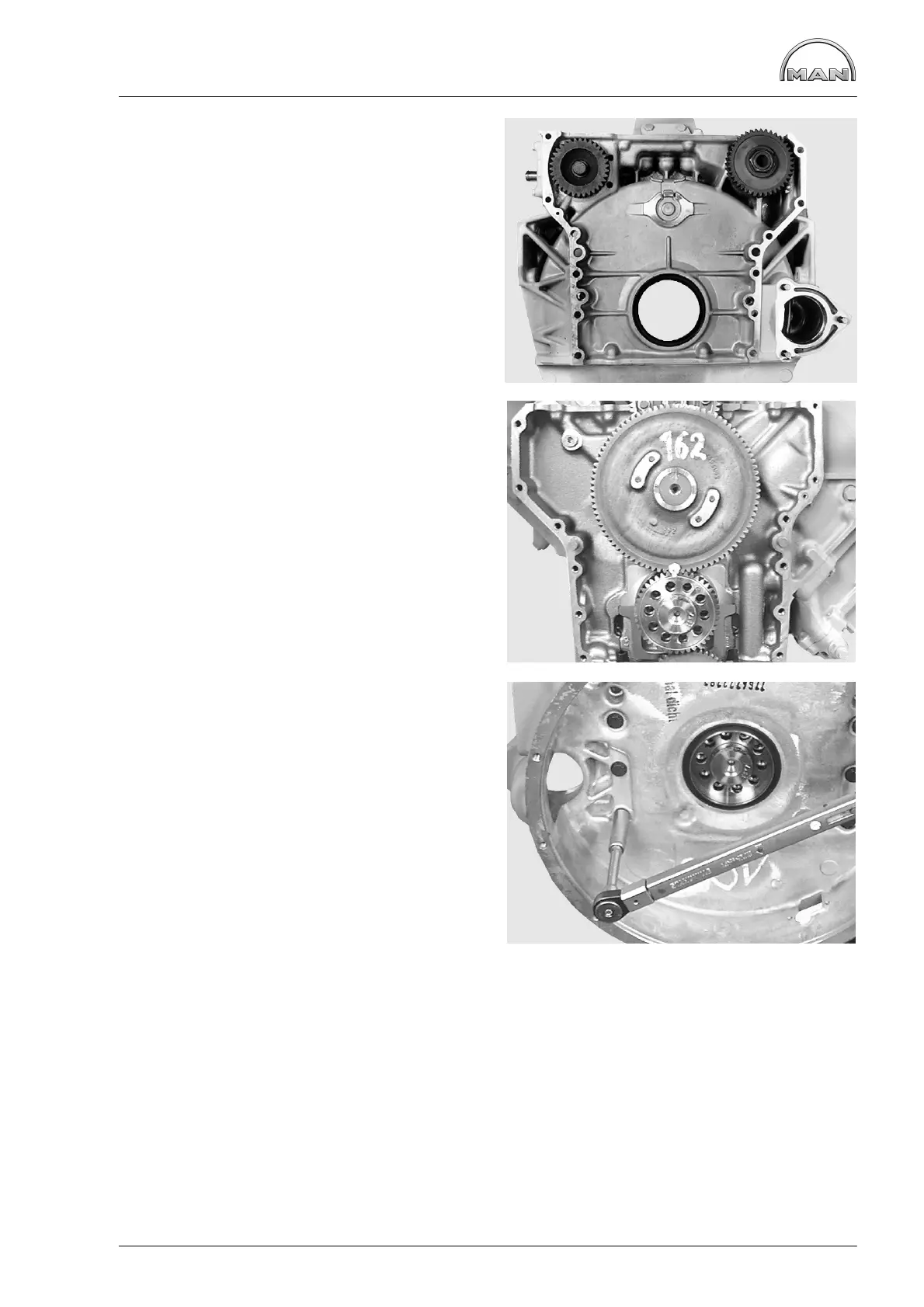

Fig. 5
Remove the timing case.
Fitting the timing case
Fig. 6
Clean residues of seals from the seating surface
on the crankcase.
Stick the new seal on with a little grease.
Guide timing case on to the alignment pins and
bolt it into place.
In doing so, examine the oil pan seal; replace if
necessary.
Fig. 7
Tighten the timing case bolts.
Tightening torque: 75 Nm
Tighten the mounting bolts of the oil pan.
Tightening torque: 30 Nm
Clean gasket residues from the sealing surface of
the timing case cover.
Screw the timing case cover on with a new seal.
Coat seal on both sides with “Loctite 5900” liquid
sealing agent.
Secure the timing case cover with the prescribed
torque and tightening sequence (see “Service
Data”).
Secure the oil and coolant lines.
Fit all removed components.
