Removing and installing the oil cooler
62
D Drain off coolant, see Page 39
D Drain engine oil, see page 64

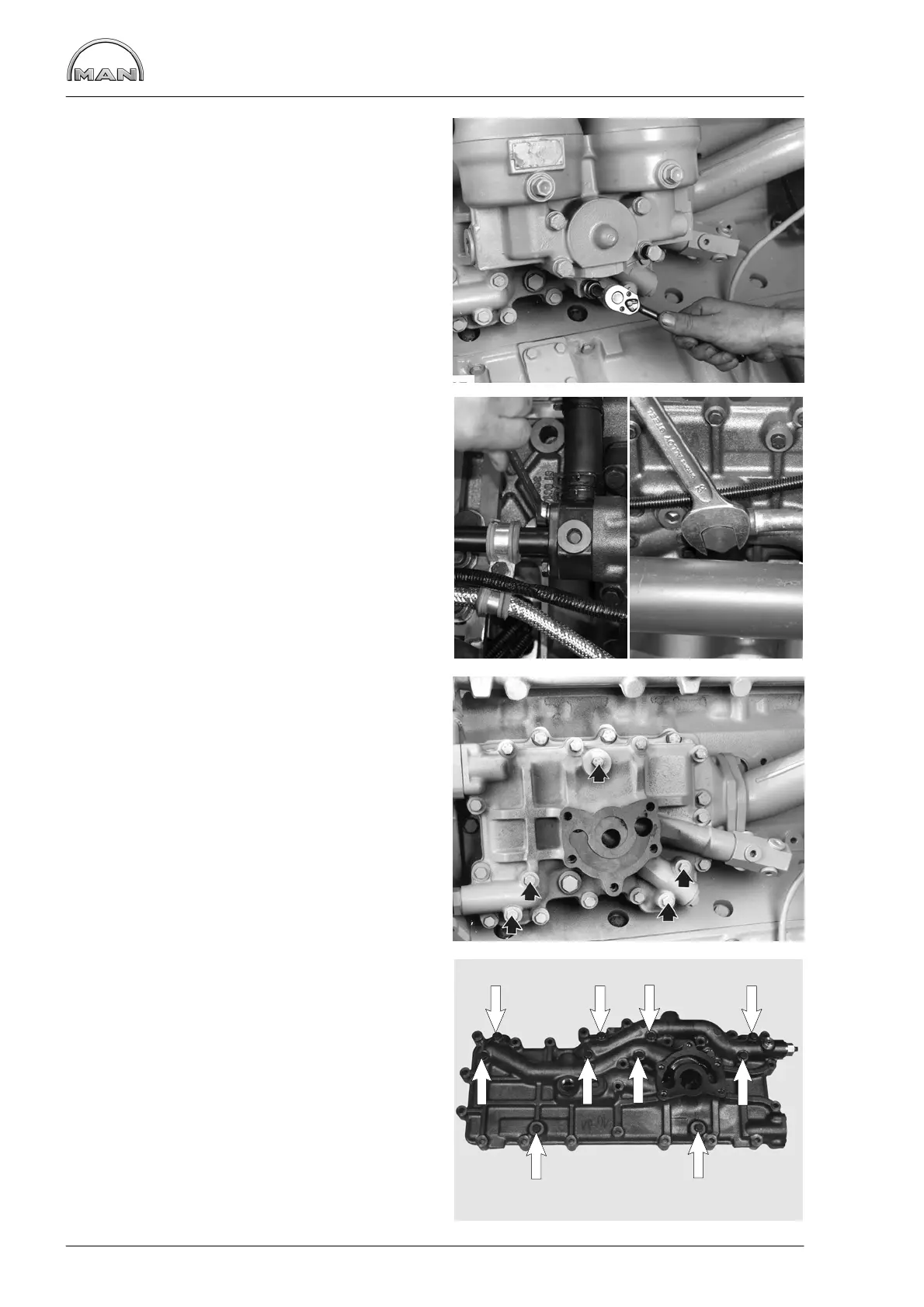

Fig. 1
Remove the oil filter (WAF 17). Remove filter head
seal.
Fig. 2
Pipes that lead to the oil cooler housing cover or
go over the cover and obstruct removal are to be
unscrewed.
Fig. 3
10-cylinder-engine
Remove oil cooler housing cover with fitted oil coo-
ler(WAF 13).
The 5 marked screws hold the oil cooler. Only loo-
sen these screws after removing the housing co-
ver.
Fig. 4
12-cylinder-engine
The 10 marked bolts hold the oil cooler in place.
Only loosen these screws after removing the hous-
ing cover.
