Removing and installing speed pickup
147

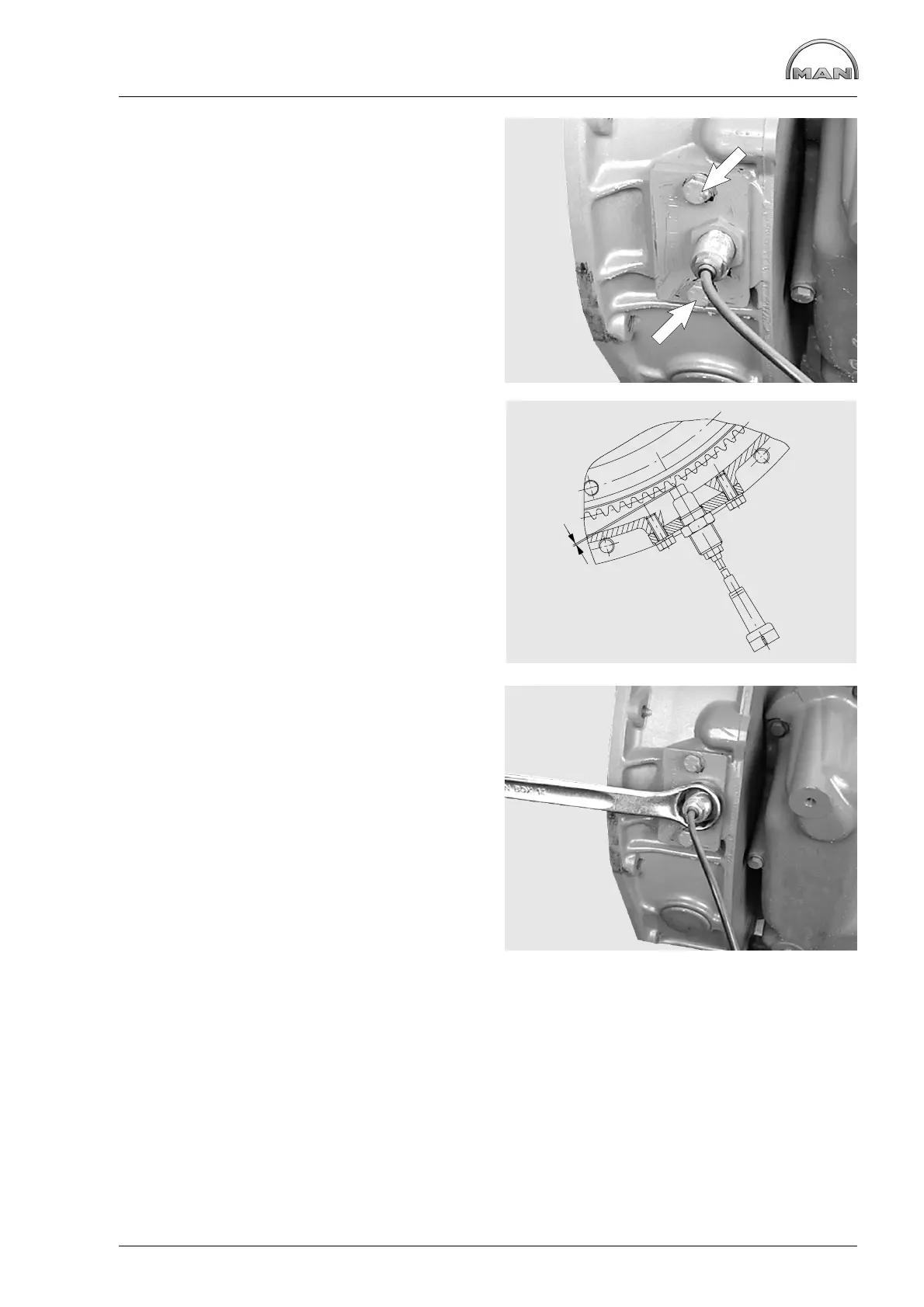

Fig. 1
The speed pickup is fitted to the bottom right-hand
side of the flywheel housing.
To remove it, disconnect cable from terminal,
remove the mounting bolts from the retaining plate
and take it off together with the speed pickup.
Fig. 2
After the installation, distance ādā between the
speed pickup and the gear ring of the flywheel
must be checked and, if necessary, readjusted.
Fig. 3
To do so, proceed as follows:
D Loosen counter nut and unscrews speed pickup
D Turn gear ring so that one tooth is in centre
position relative to the thread bore
D Screw in speed pickup until it stops
D Turn it back by one revolution and fit counter
nut
