Removing and installing turbocharger
87
Removing turbocharger
D Drain off coolant, see Page 39

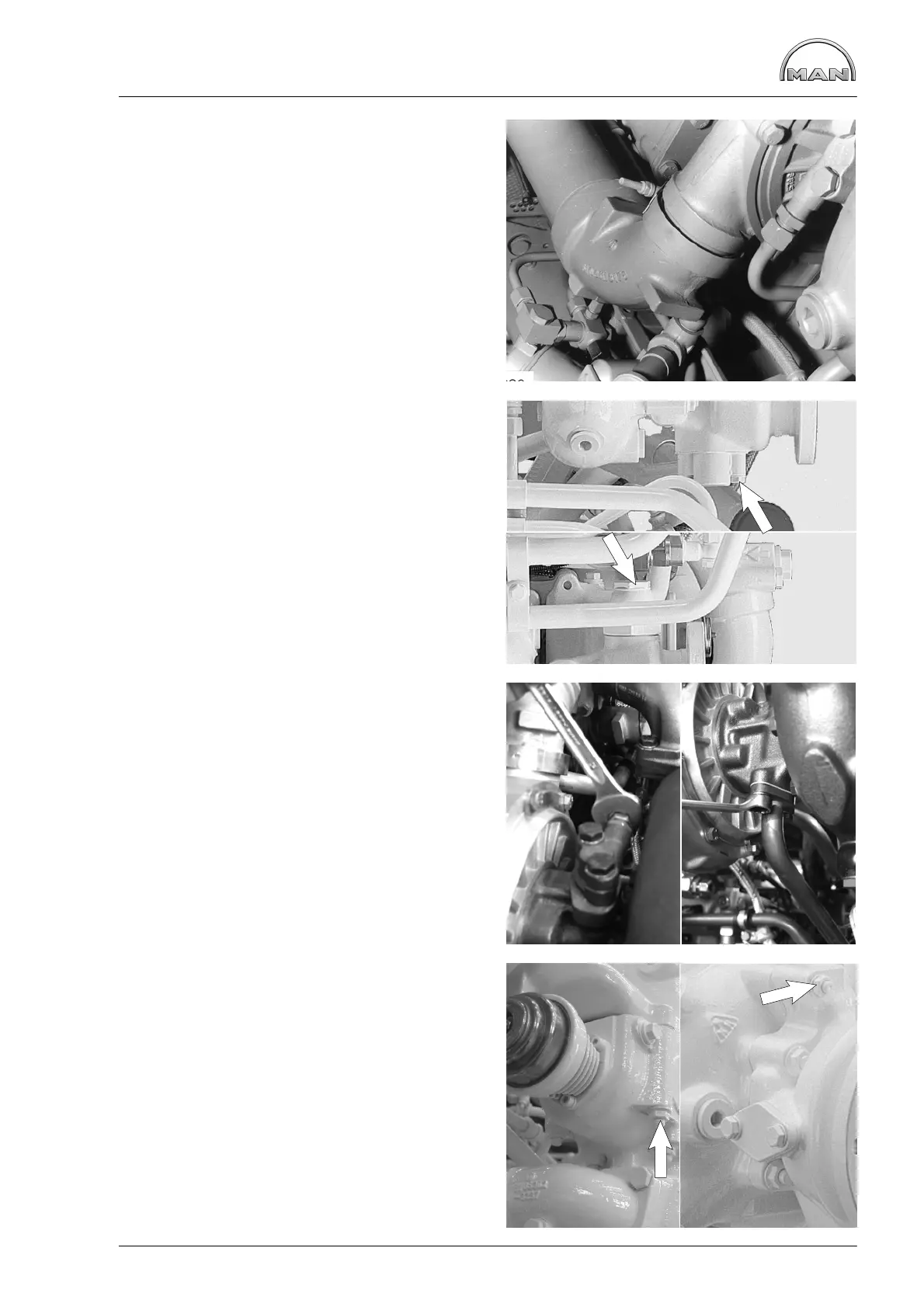

Fig. 1
Remove the venting line and intake neck.
Fig. 2
Remove the coolant lines.
Fig. 3
Unscrew the oil supply line and oil return line.
Fig. 4
Remove diffuser from exhaust manifold and turbo-
charger.
