Ø
Limit values
Service Data
Dimensions
156

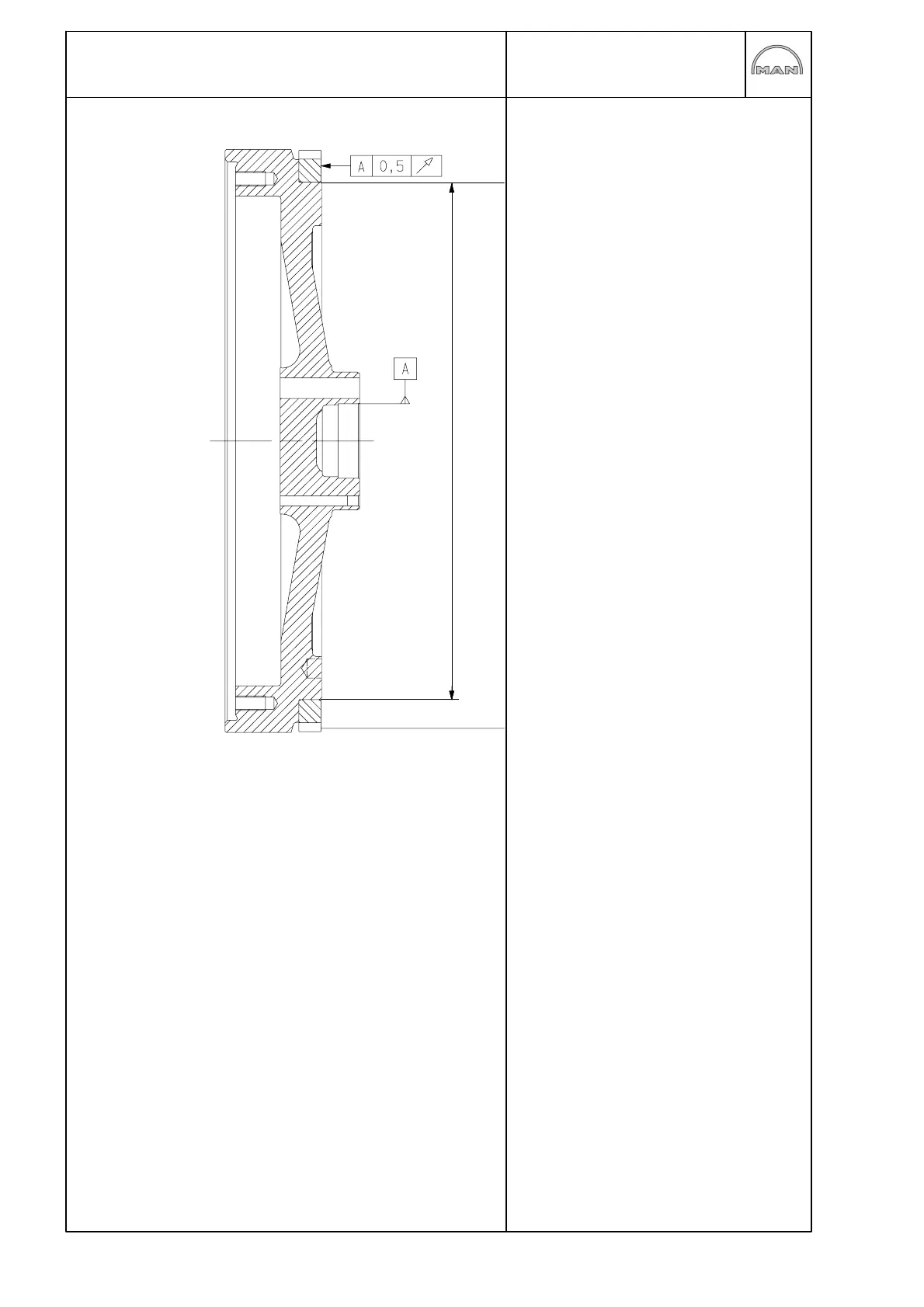

Flywheel and starter gear ring
Ø Flywheel: 432,490−432,645 mm
Internal gear ring Ø: 432,000−432
,155 mm
Interference: 0,335−0,645 mm
Installation temperature: 200−230_C
m = 60,554 kg (with gear ring)
J = 2,392 kgm
2
Number of teeth: Z = 160, module 3
Matching gear: Starter pinion (Z = 9)
Gear ratio: i = 17,78
Backlash: 0,6−0,9 mm
