Removing and installing cylinder head
93
Removing cylinder head
D Drain coolant, see page 39
D Remove injection lines, see page 27
D Remove injectors, see page 31
Note:
The intake and exhaust pipes need not be
detached for removing the cylinder head.

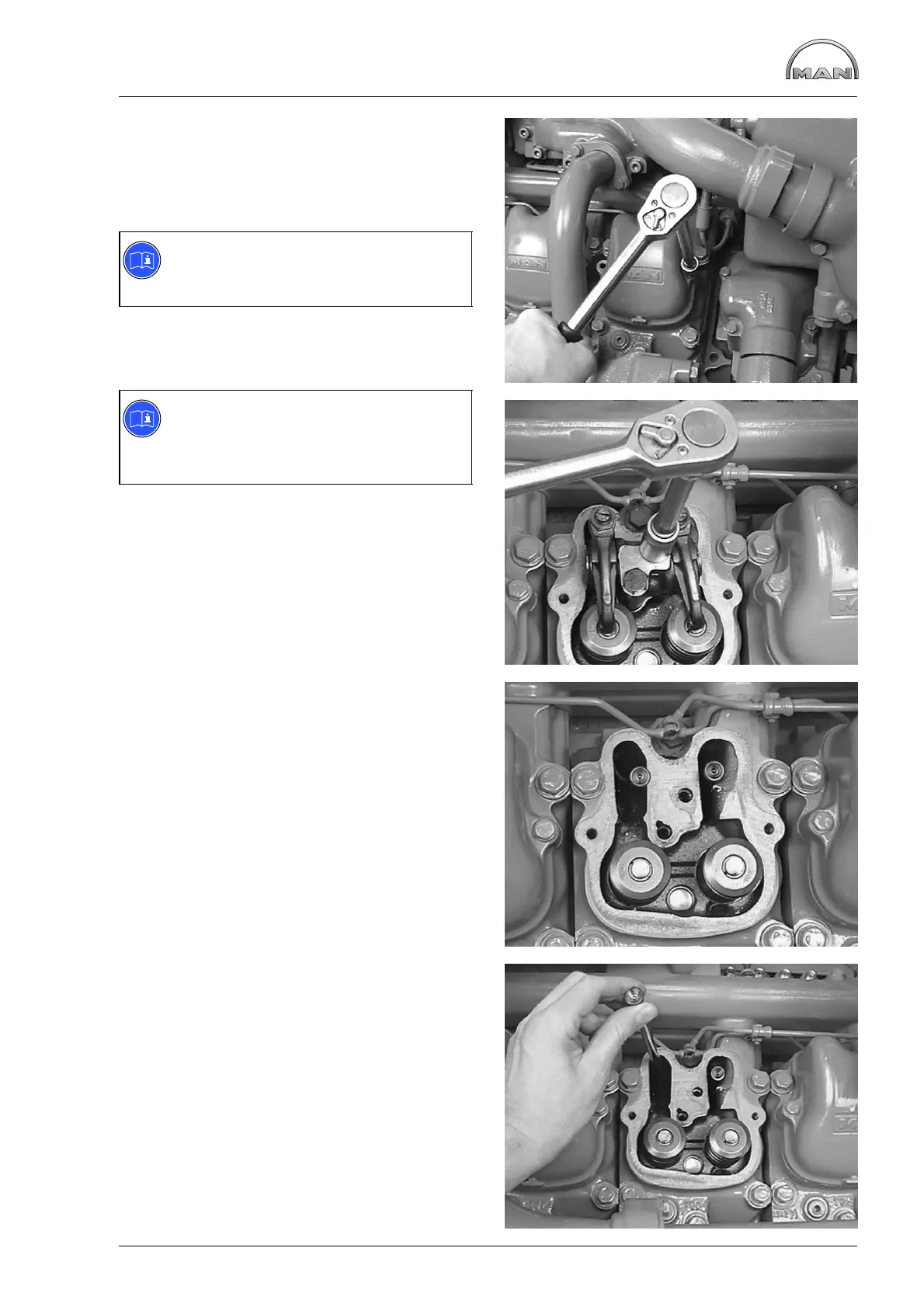

Fig. 1
Take off the cylinder head covers.
Note:
On engines recently manufactured the
valve covers are fastened with Torx bolts
for which an E12 − ½” wrench is required.
Fig. 2
Back off valve adjusting screws.
Loosen mounting bolts of rocker arm bracket.
Fig. 3
Remove rocker arm bracket.
Fig. 4
Take out push rods.
