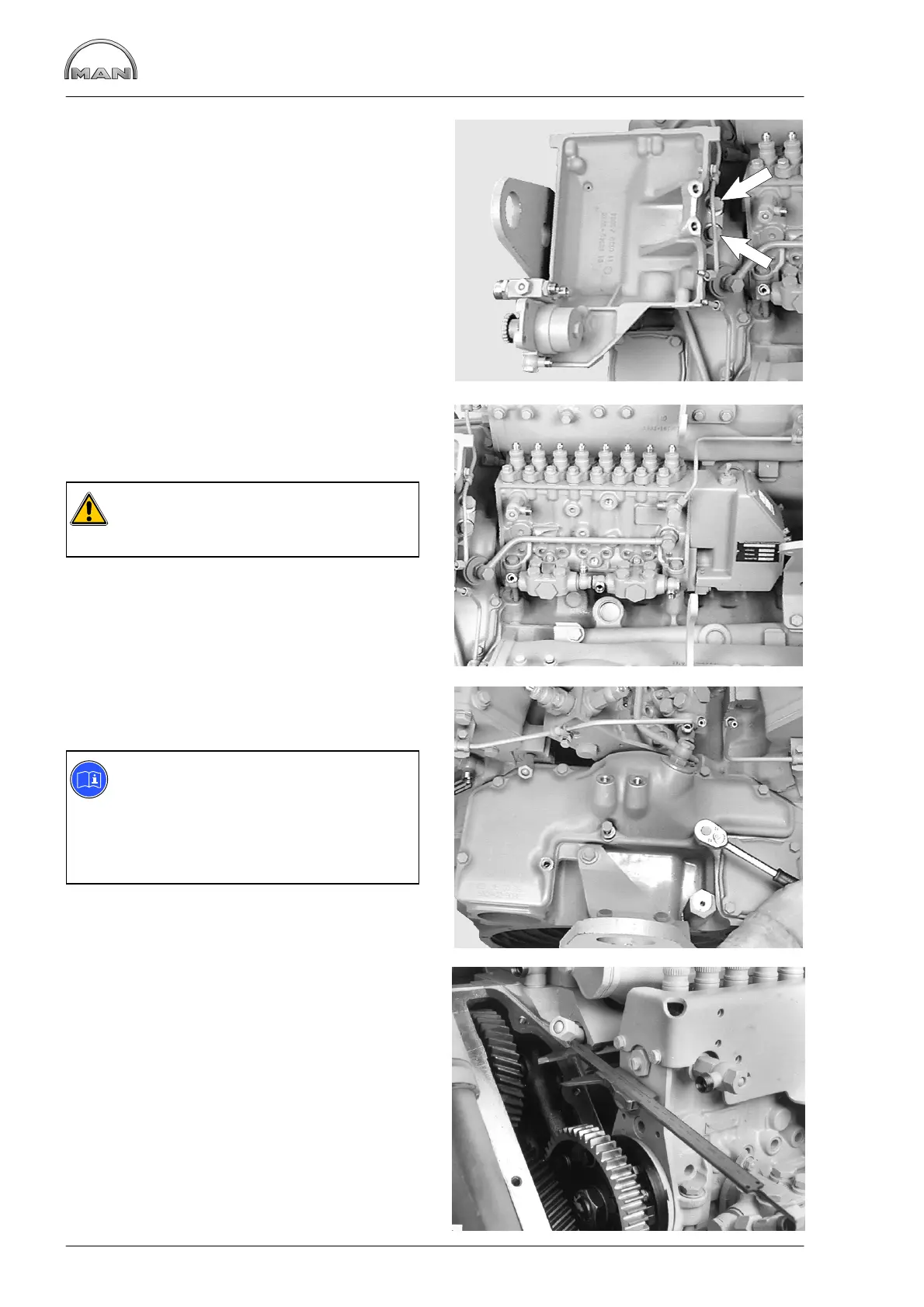

Removing and installing injection pump
28
Fig. 5
Remove container together with fuel hand pump
too.
Fig. 6
Remove all fuel connections from injection pump.
Remove oil return line from crankcase.
Caution:
The lines contain fuel.
Catch emerging fuel in a container.
Fig. 7
Remove timing case cover.
Note:
Pipes are attached to the timing case
cover.
To facilitate reassembly, note down the
positions of the brackets, pipe clamps,
spacer sleeves etc.
Fig. 8
Measure and note down distance between injec-
tion pump and crankcase.
Maintaining this distance in the assembly later on
ensures that the oil supply bore of the injection
pump will remain clear.
