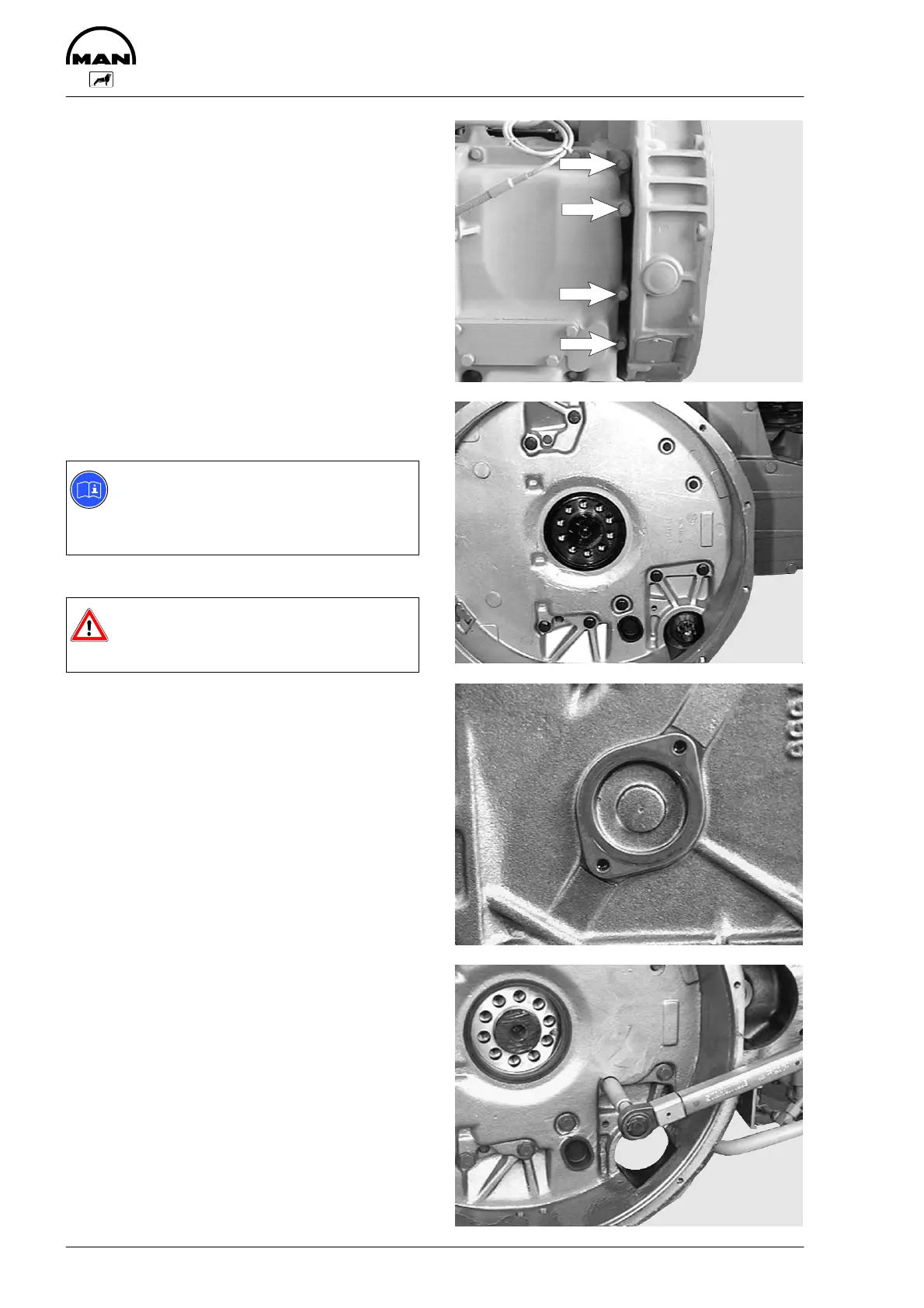

Removing and installing the gear case
102
Removing the gear case
D Removing the starter motor, see page 124
D Removing flywheel, see page 72
Fig. 1
Remove pipes.
The timing case is bolted to the oil pan at the bot-
tom.
Fig. 2
Release the mounting bolts.
Note:
To facilitate assembly, two bolts on oppo-
site sides can be replaced by guide pins
M12x1.
Remove the gear case.
Danger:
The gear case is heavy!
Use lifting gear.
Remove the timing case gasket and fit a new gas-
ket.
Clean contact face on timing case and crankcase
of sealing residues.
Fig. 3
Check the contact washer on the camshaft for
wear, in necessary fitting a new one.
Fitting the gear case
Fig. 4
Stick the new gasket on with a little grease.
Fit the flywheelhousing.
Check the oil pan gasket, replacing if necessary.
Lightly oil the threads and contact faces of the
mounting bolts and tighten to specified torque (see
“Service data”).
D Refit timing gear
D Refit starter motor
D Refit pipes
