Man D 2866 LUE 602

Limit values
Service Data
Dimensions
145

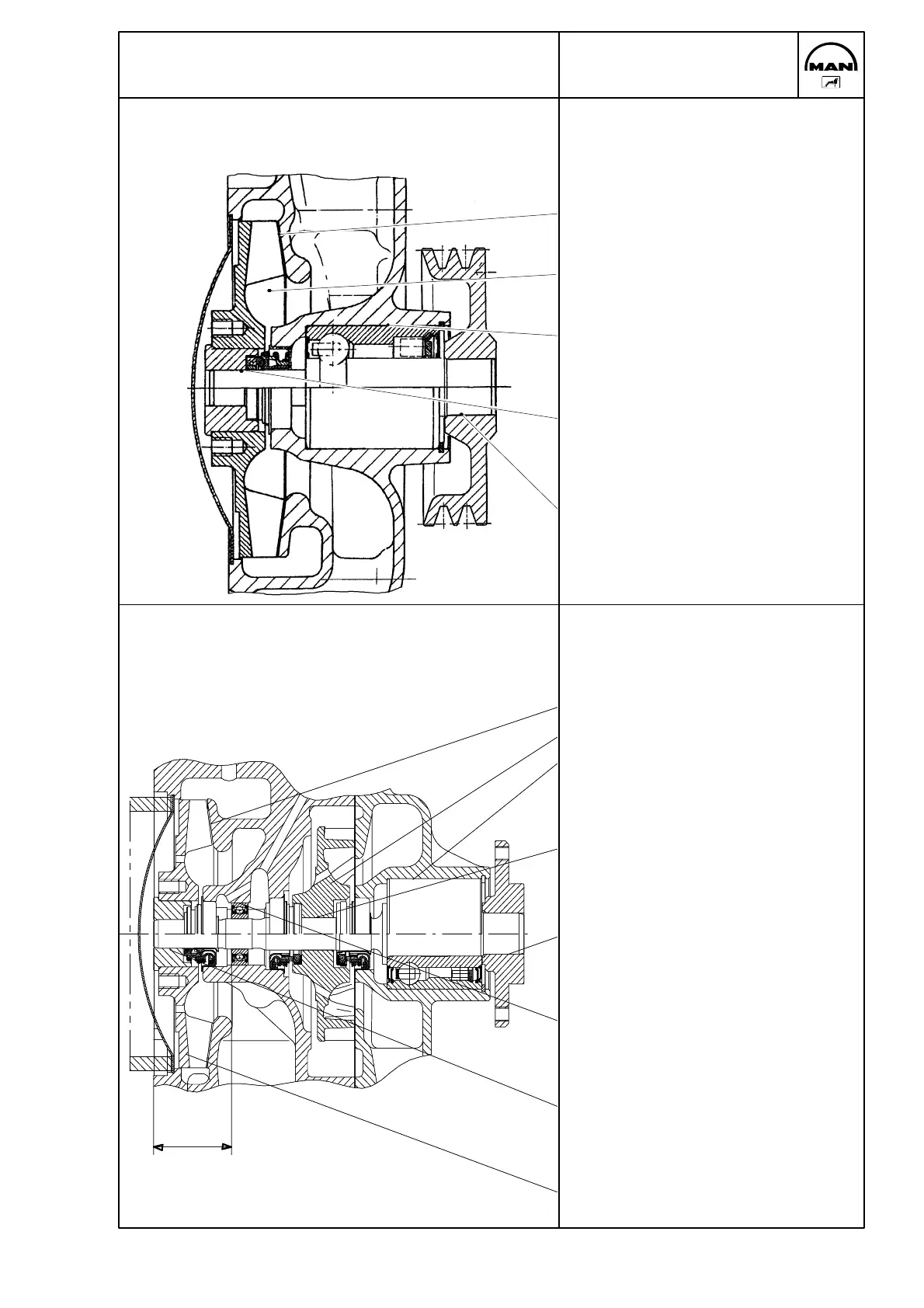

Engine coolant pump D 2866 LUE 602
gap: 0,5-0,9 mm
Minimum: 0.5 mm if impeller is pressed
on.
Ø impeller: 149,5-150 mm
Bearing seat in housing:
54,940-54,970 mm
Ø of bearing: 54,981-54,994 mm
Interference: 0,021-0,064 mm
Bore for bearing shaft in impeller:
15,992-16,010 mm (Ø 16 J7)
Ø of bearing shaft: 16,043-16,056 mm
Interference: 0,033-0,064 mm
Bore in hub / belt pulley:
25,007-25,020 mm (Ø 25 G6)
Ø of bearing shaft: 25,048-25,061 mm
Interference: 0,028-0,054 mm
Coolant pump with high-temperature and
low-temperature parts D 2866 LUE 605
gap: 0,7-0,8 mm
Ø impeller: 120 mm
Bearing seat in housing:
Ø 61,976-61,995 mm
Ø of bearing: 61,987-62,000 mm
Interference: 0,008-0,024 mm
Bore for bearing shaft in impeller NT:
17,992-18,010 mm
Ø bearing shaft: 18,045-18,056 mm
Interference: 0,035-0,064 mm
Bore in hub / belt pulley:
23,007-23,020 mm
Ø bearing shaft: 23,048-23,061 mm
Interference: 0,028-0,054 mm
Bearing seat in housing HT:
35,994-35,010 mm
Ø of bearing: 34,989-35,000 mm
Interference: 0,006-0,021 mm
Bore for bearing shaft in impeller HT:
15,992-16,010 mm
Ø bearing shaft: 16,045-16,056 mm
interference: 0,035-0,064 mm
Ø impeller: 149,5-150 mm
4646
