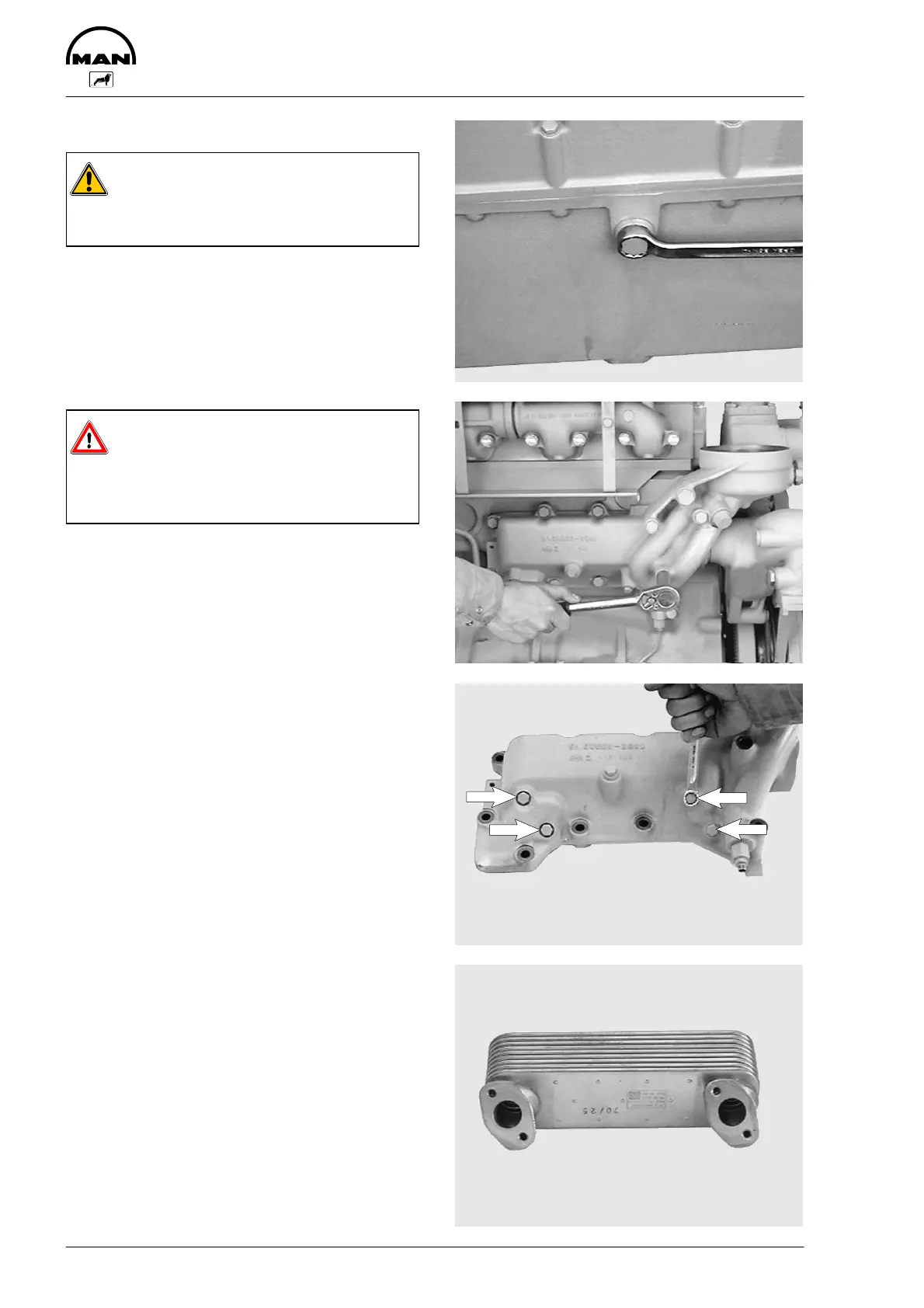

Removing and installing the oil cooler
58
Removing the oil cooler
Caution:
Old oil is hazardous waste.
Observe safety instructions for the preven-
tion of environmental damage.
Fig. 1
Oper oil drain plug and use container to catch the
oil that may emerge.
Use a vessel of sufficient size to ensure that the oil
does not overflow.
Danger:
The oil is hot-risk of scalding. Do not
touch the oil drain plug with bare fingers.
Oil is an environmental hazard. Handle it
with care!
D Draining off coolant, see page 39
D Remove oil filter, see page 57
Fig. 2
Unscrew the mounting bolts from the oil cooler
housing.
Remove the oil cooler housing together with the oil
cooler.
Fig. 3
Remove the oil cooler from the housing.
Fig. 4
Inspect the oil cooler for damage and replace if
necessary.
Fit oil cooler with new gaskets.
