Ø
Limiting values
Service Data
Dimensions
134

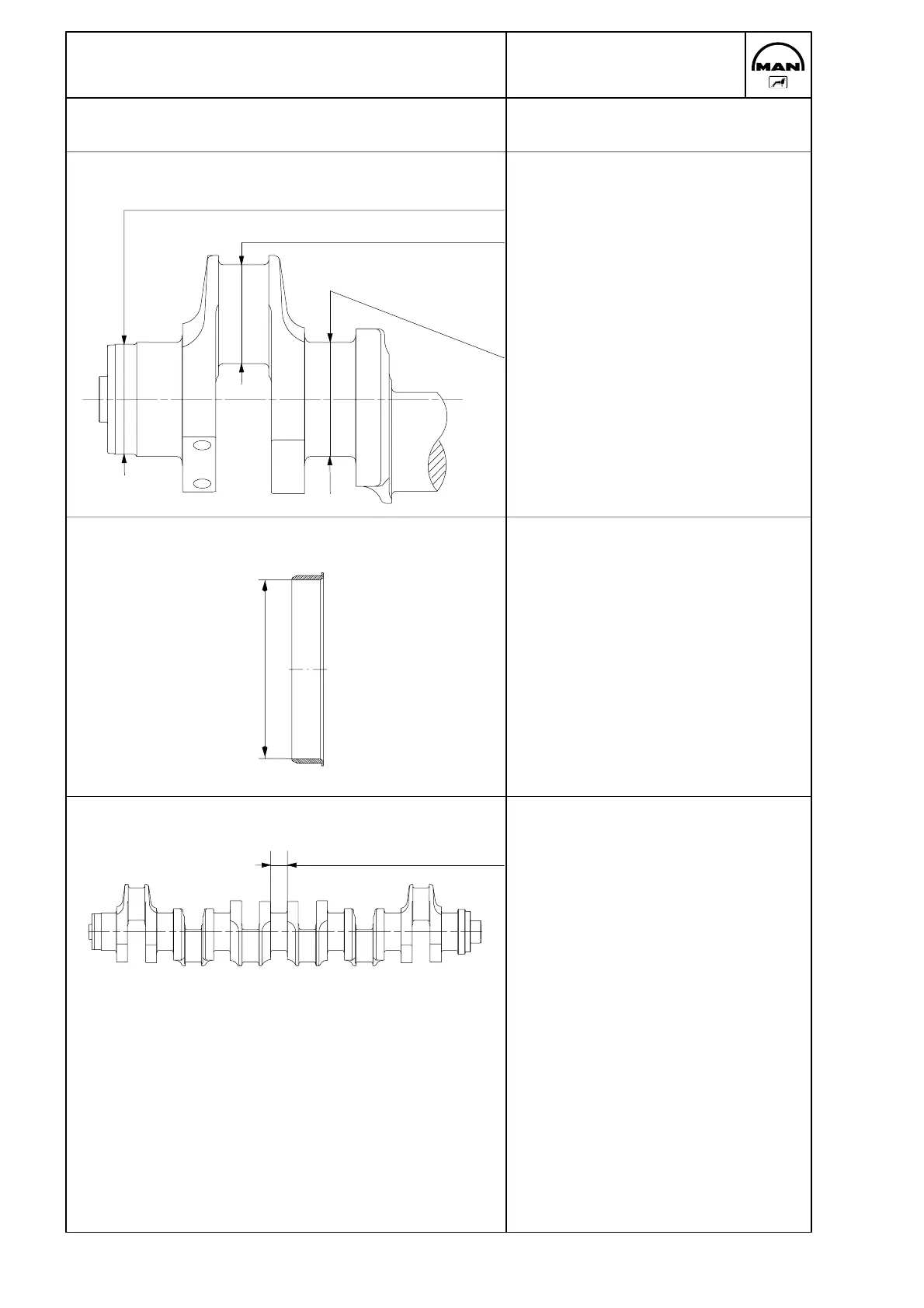

Crankshaft
Crankshaft, front (opposite side to flywheel)
99,985-100,020 mm
standard size: 89,98-90,00 mm
undersize -0,25: 89,73-89,75 mm
undersize -0,50: 89,48-89,50 mm
undersize -0,75: 89,23-89,25 mm
undersize -1,00: 88,98-89,00 mm
standard size: 103,98-104,00 mm
undersize -0,25: 103,73-103,75 mm
undersize -0,50: 103,48-103,50 mm
undersize -0,75: 103,23-103,25 mm
undersize -1,00: 102,98-103,00 mm
Bearing race for crankshaft, front
Inner diameter:
99,907-99,942 mm
Thrust bearing journal
standard size: 46,000-46,062 mm
undersize :
-0,25 and -0,50: 46,500-46,562 mm
-0,75 and -1,00: 47,000-47,062 mm
Ø
Ø
Ø
