Removing and installing valve guides
94
D Removing and installing cylinder head,
see page 85
D Removing and installing valves, see page 91

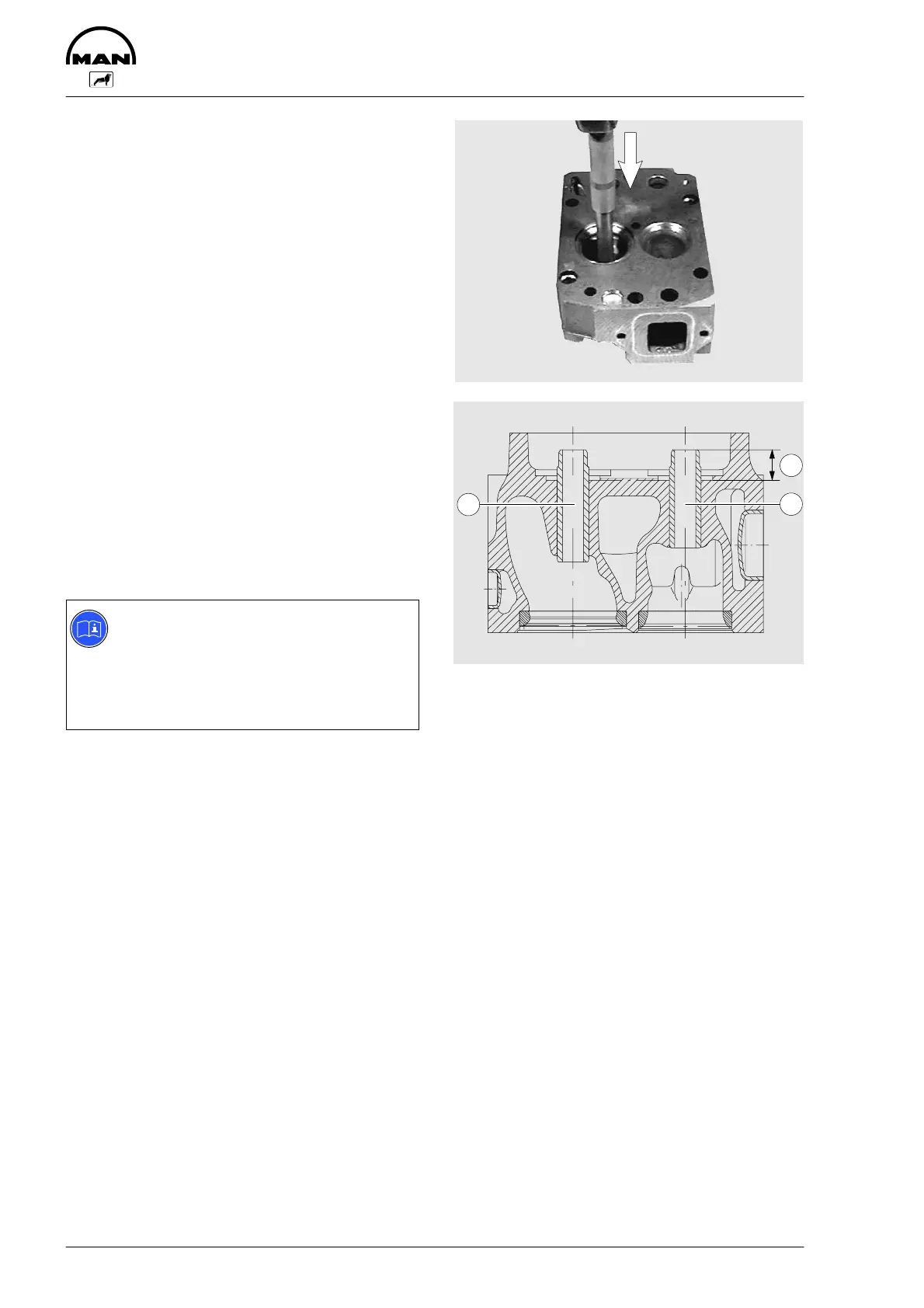

Fig. 1
Press valve guide out of the combustion chamber
side using pressing mandrel (special tool).
Oil new valve guide and drive / press it into the
cylinder head using pressing mandrel and spacer
sleeve (special tool).
Fig. 2
The valve guides vary only in length.
1 Inlet
2 Exhaust
3 Press-in depth (see “Service Data”)
The correct press-in depth is obtained by using the
spacer sleeve.
Afterwards ream valve guide to specified
dimension.
Note:
When the valve guides have been
changed, the valve seats too must be re-
worked (see technical data and manufac-
turers’ instructions for valve seat lathes
found in individual workshops).
1
3
2
