Fuel system diagram
21

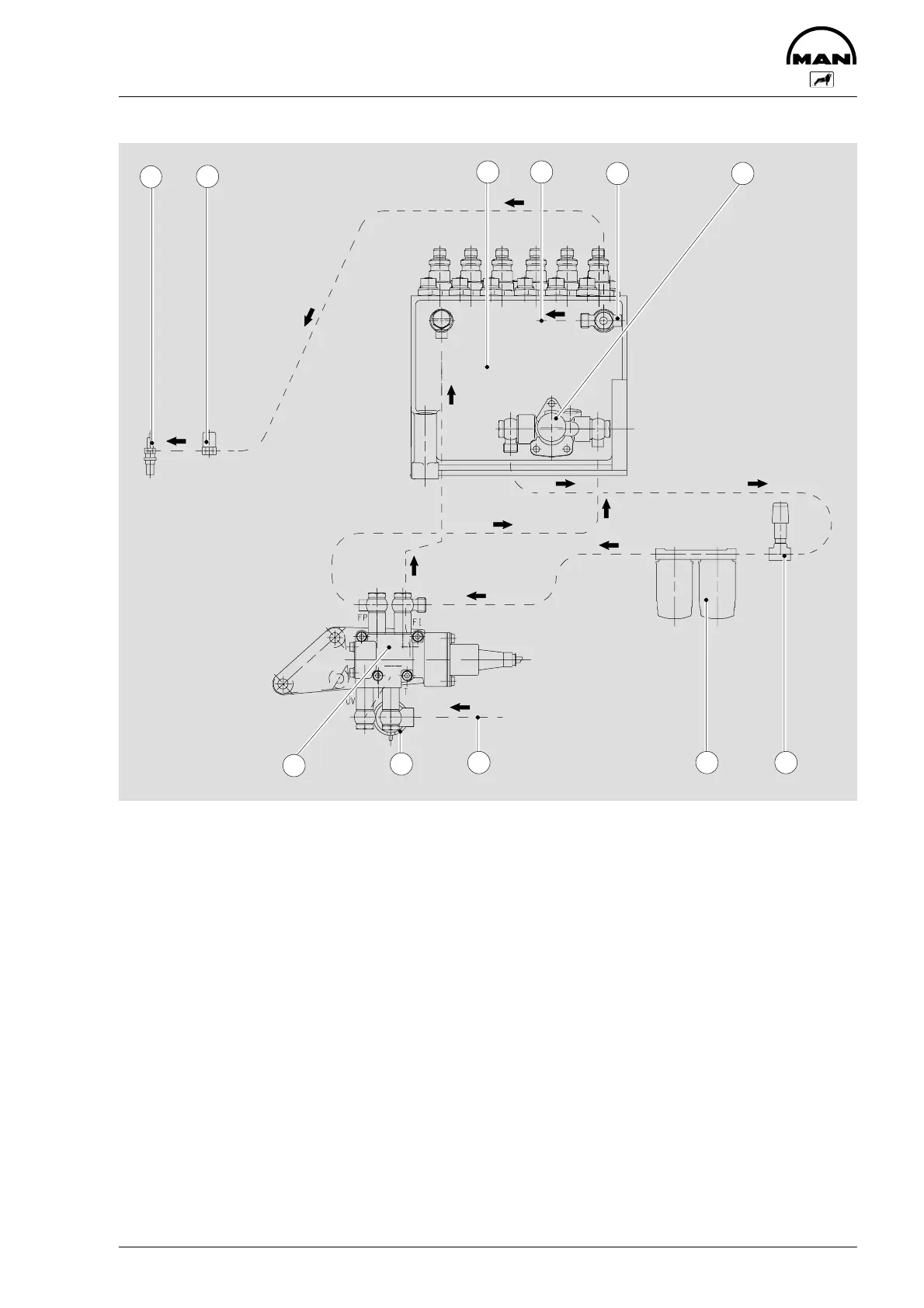

Fuel system - Schematic diagram D 2866 LUE 602
3
43
1
2
5 6
789
10
11
1 Flame-starter sheathed-element glow plug 7 Hand pump
2 Soleniod valve 8 Fuel filter
3 Injection pump 9 Fuel supply from tank
4 Fuel return to tank 10 Fuel pre-filter
5 Leak fuel 11 Electro-hydraulic shut-off (EHAB)
6 Fuel delivery pump
