Fuel system diagram
22

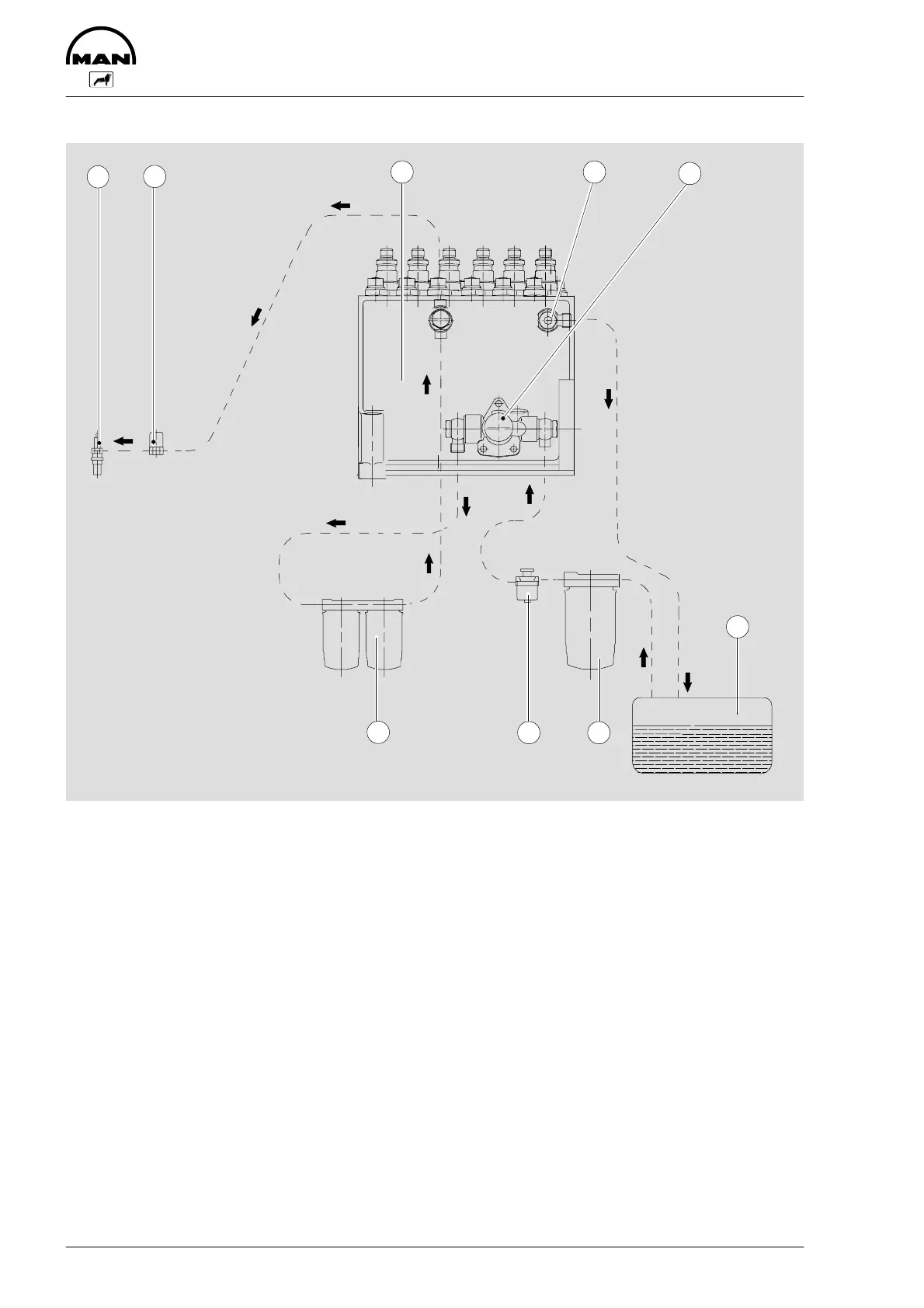

Fuel system - Schematic diagram D 2866 LUE 605
1
2
5
3
3 4
9 8 7
6
1 Flame-starter sheathed-element glow plug 6 Tank
2 Solenoid valve 7 Fuel pre-filter
3 Injection pump 8 Hand pump
4 Fuel return to tank 9 Fuel Filter
5 Fuel delivery pump
