Man D 2866 LUE 602

imit values
Service Data
Dimensions
133

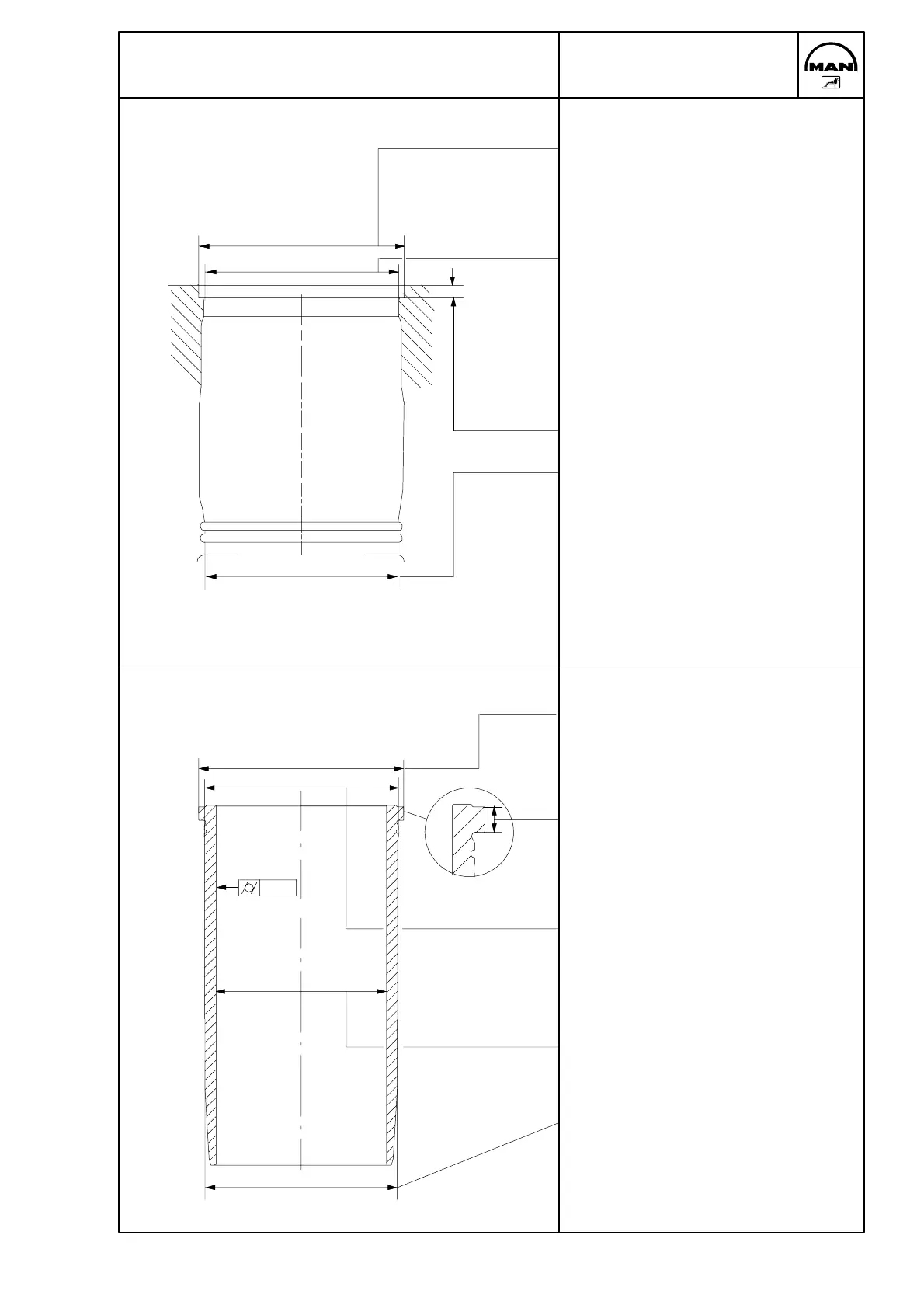

Crankcase
standard size:
153.90-153,94 mm
for cylinder liners with 0,5 und 1,0 mm
larger outside Ø:
154,40-154,44 mm
standard size:
145,80-145,84 mm
for cylinder liners with 0,5 mm larger
outside Ø:
146,30-146,34 mm
for cylinder liners with 1,0 mm larger
outside Ø:
146,80-146,84 mm
9,955-10,025 mm
standard size:
144,50-144,54 mm
for cylinder liners with 0,5 mm larger
outside Ø:
145,00-145,04 mm
for cylinder liners with 1,0 mm larger
outside Ø:
145,50-145,54 mm
Cylinder liner
standard size:
153,694-153,757 mm
with 0,5 and 1,0 mm larger outside Ø:
154,194-154,257 mm
standard size:10,05-10,07 mm
with 0,5 mm more flange height:
10,55-10,57 mm
Liner protrusion above upper deck of
crancase: 0,03-0,08 mm
standard size:
145,761-145,786 mm
with 0,5 mm larger outside Ø:
146,261-146,286 mm
with 1,0 mm larger outside Ø:
146,761-146,786 mm
127,990-128,010
Max. wear limit:
0,15 mm below base dimension
standard size:
144,432-144,457 mm
with 0,5 mm larger outside Ø:
144,932-144,957 mm
with 1,0 mm larger outside Ø:
145,432-145,457 mm
Ø
Ø
Ø
Ø
Ø
Ø
Ø
0,005
