Limiting values
Service Data
Dimensions
135

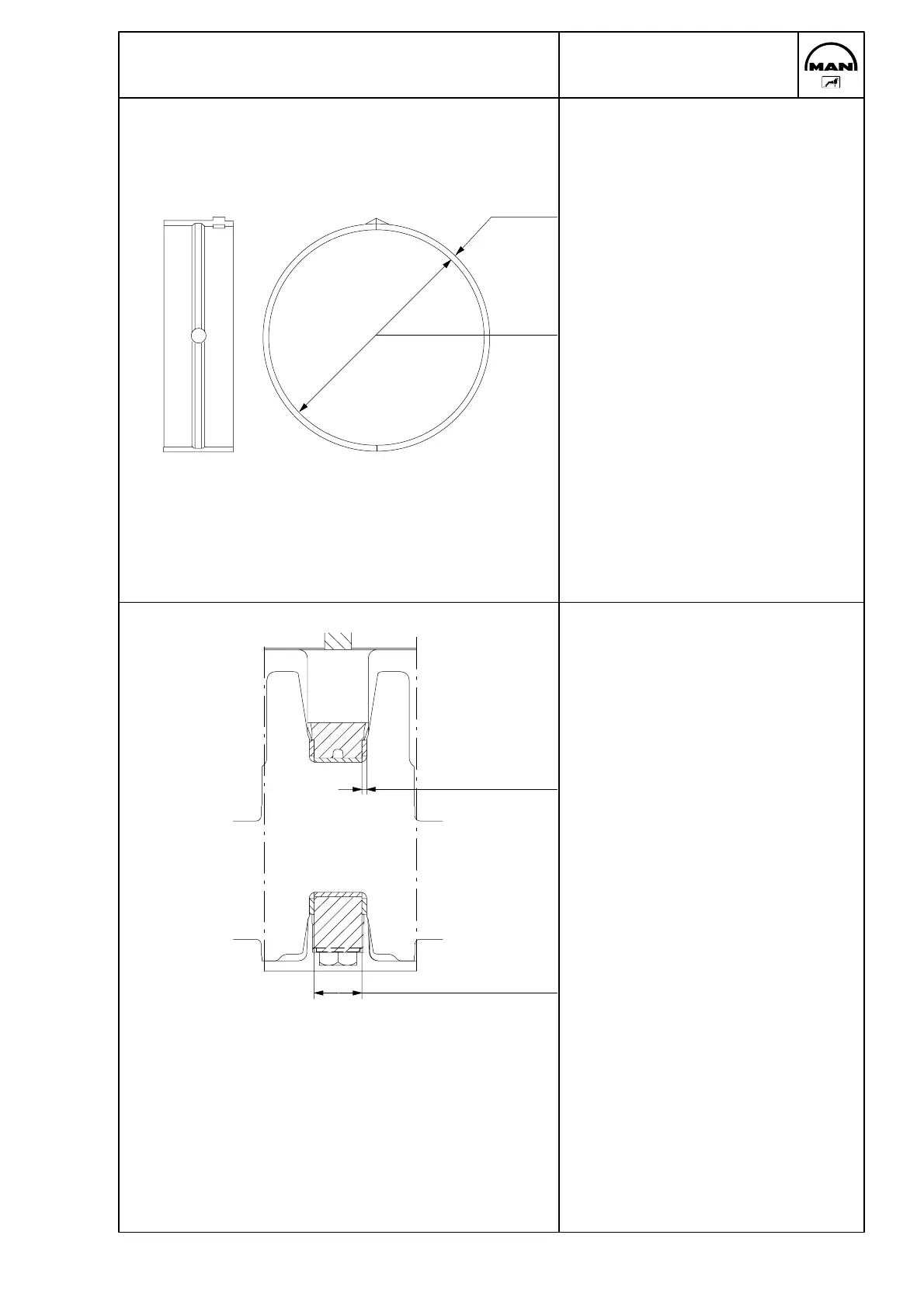

Main bearing
Data for wall thickness and bearing
inner diameter also apply to the align-
ment bearing
standard size: 3,455-3,467 mm
undersize -0,25: 3,580-3,592 mm
undersize -0,50: 3,705-3,717 mm
undersize -0,75: 3,830-3,842 mm
undersize -1,00: 3,955-3,967 mm
Bearing bore in installed condition:
standard size: 104,066-104,112 mm
undersize -0,25: 103,816-103,862 mm
undersize -0,50: 103,566-103,612 mm
undersize -0,75: 103,316-103,362 mm
undersize -1,00: 103,066-103,112 mm
Spread: 0,3 - 1,2 mm
Marking: top / bottom
standard size: 0005 / 0006
undersize -0,25: 0011 / 0012
undersize -0,50: 0013 / 0014
undersize -0,75: 0015 / 0016
undersize -1,00: 0017/ 0018
max. axial clearance of crankshaft:
0,200-0,401 mm:
Width of thrust washer:
standard: 3,350-3,400 mm
oversize1: 3,600-3,650 mm
oversize2: 3,850-3,900 mm
38,961-39,000 mm
