Removing pistons from conrod and fitting,
checking - replacing conrod
116

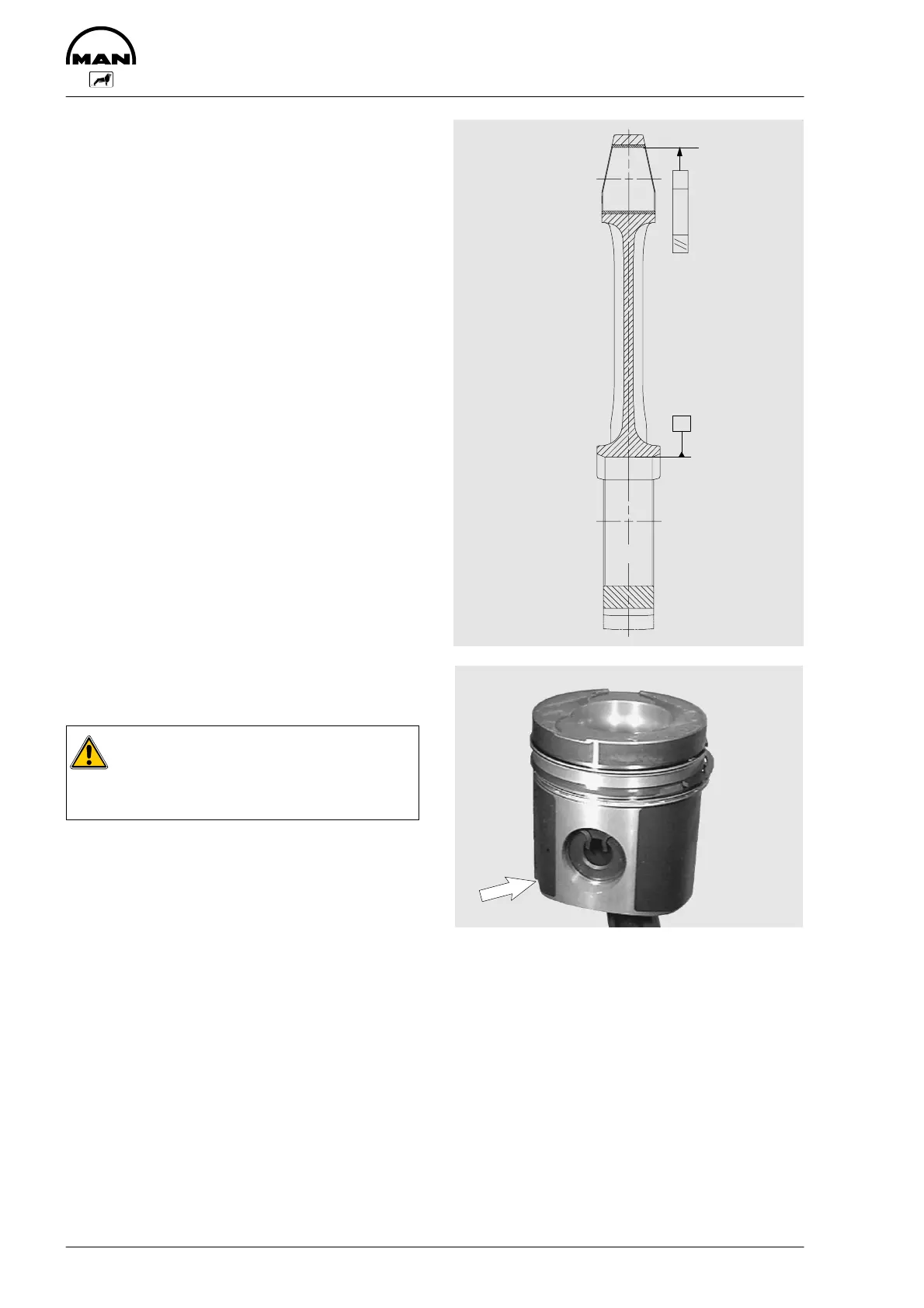

Fig. 5
Clean conrod. Check for externally visible damage;
if necessary, scrap damaged rods.
Check parallel location of conrod and twisting of
piston pin eye to bearing bush bore hole. In the
case of deviations beyond the tolerance range,
replace conrod.
Fig. 6
Place piston on the conrod.
Caution:
The recess for the oil injection nozzle in
the piston shaft (arrow) must lie on the
side of the short conrod foot.
Insert piston pin. Engage fastenings.
Fitting pistons, see page 113.
A
Diameter 0.02A
