Checking and adjusting start of fuel delivery
27
2. Sleeve

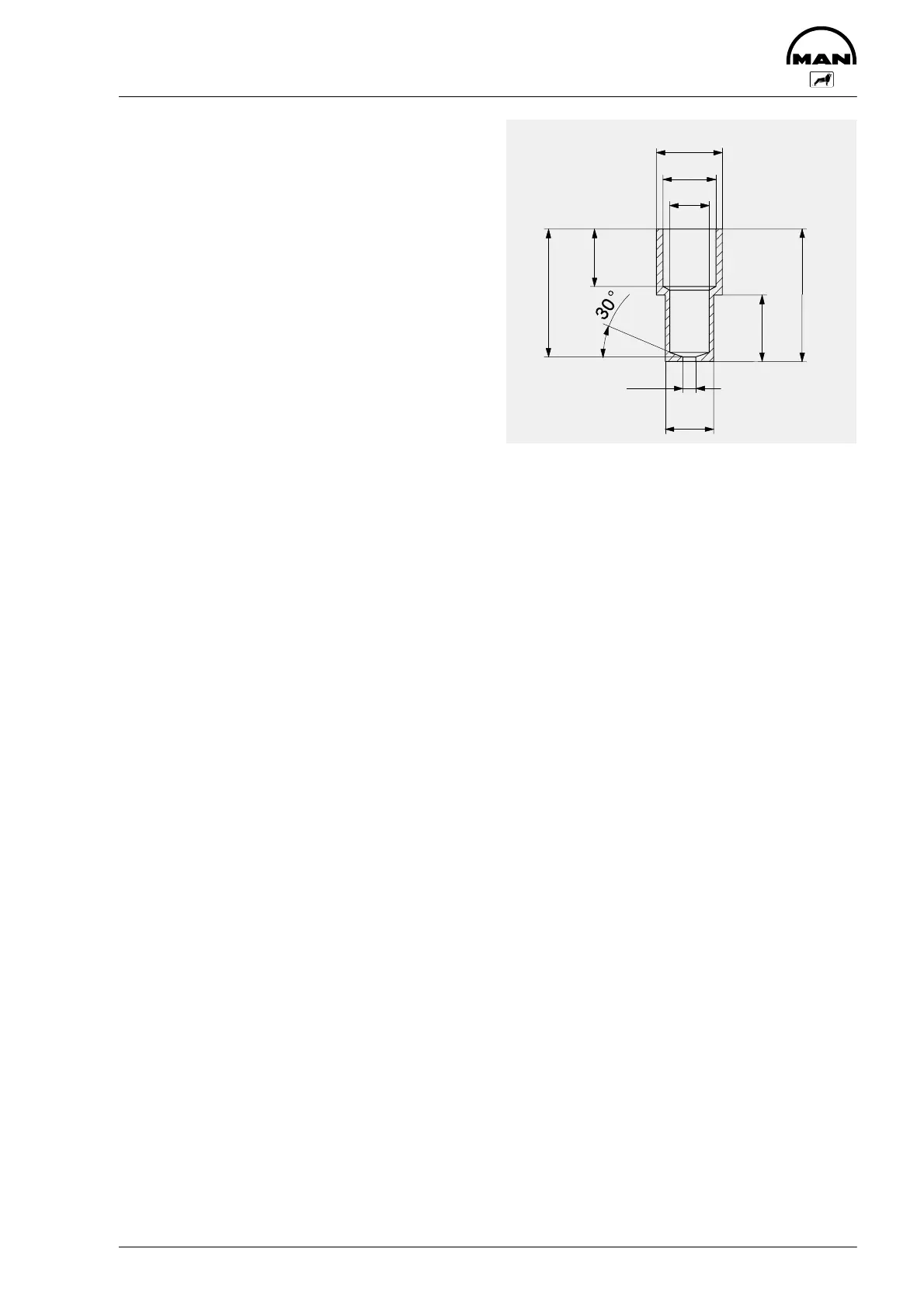

Fig. 8
If a light signal transmitter is not available, good
measurement results can also be achieved with a
plug-in sleeve.
The sleeve is to be made of aluminium or steel.
Set engine to start of delivery as described above.
Insert the sleeve into the governor housing up to
the stop.
The start of delivery is set exactly when the pointer
for start of delivery is in the centre of the 3 mm
bore in the sleeve.
ø9
ø15
ø12
ø11
ø3
29
13
15
30
