Repairing engine water pump
D 2866 LUE 602
46

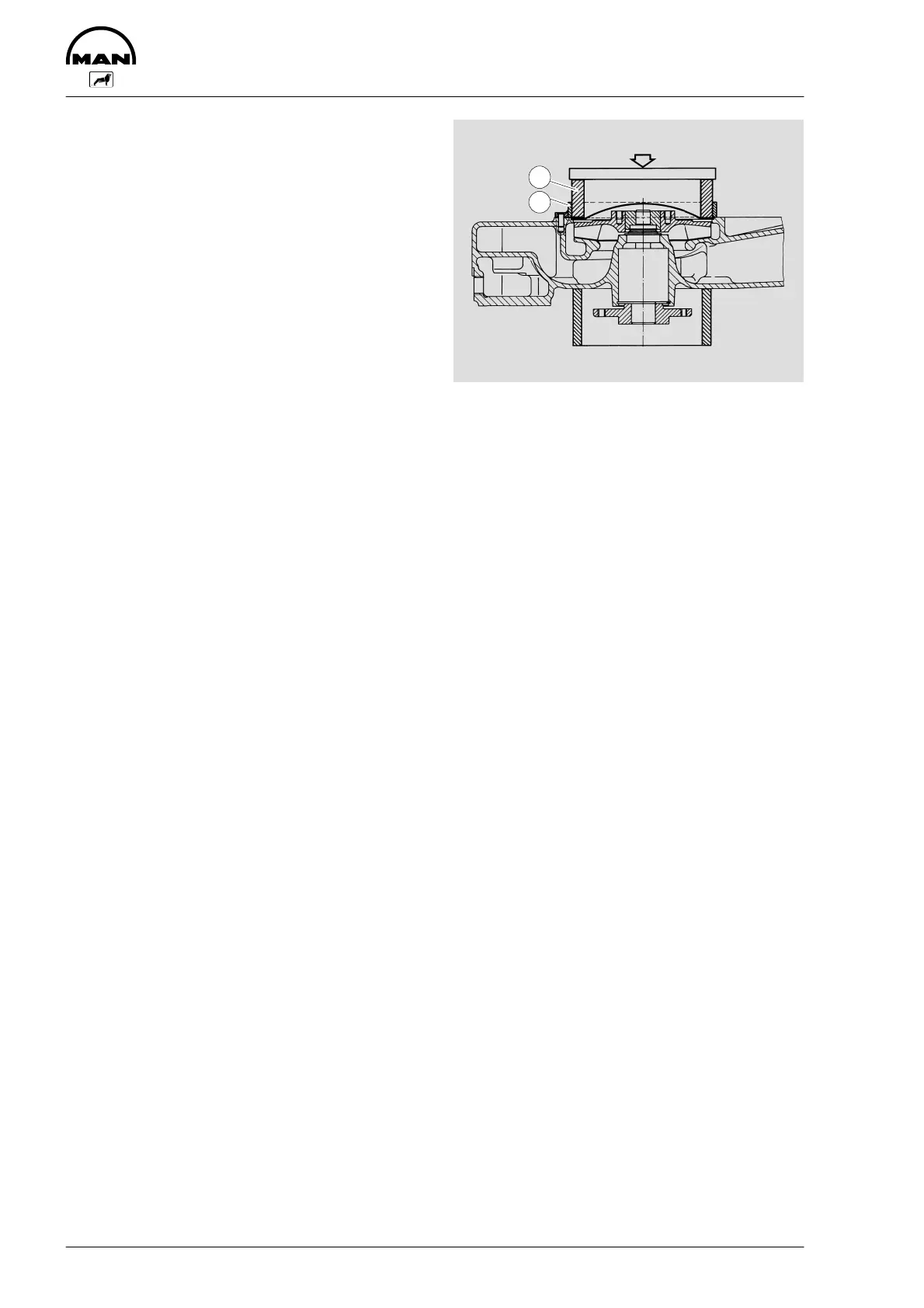

Fig. 13
If no suitable pressing tool is available, you may
use self-made special tools (see chapter “Special
tools”) and proceed as follows:
D Align guide ring Á with the two dowel pins on
the pump housing
D Insert pressing ring À into guide ring
D Place a flat steel (min. thickness: 10 mm) on
the pressing ring
D Press cover into housing using a press
Attach water pump with new seal, see page 41.
