Removing and installing / Repairing Oil Pump
63
Repairing the oil pump

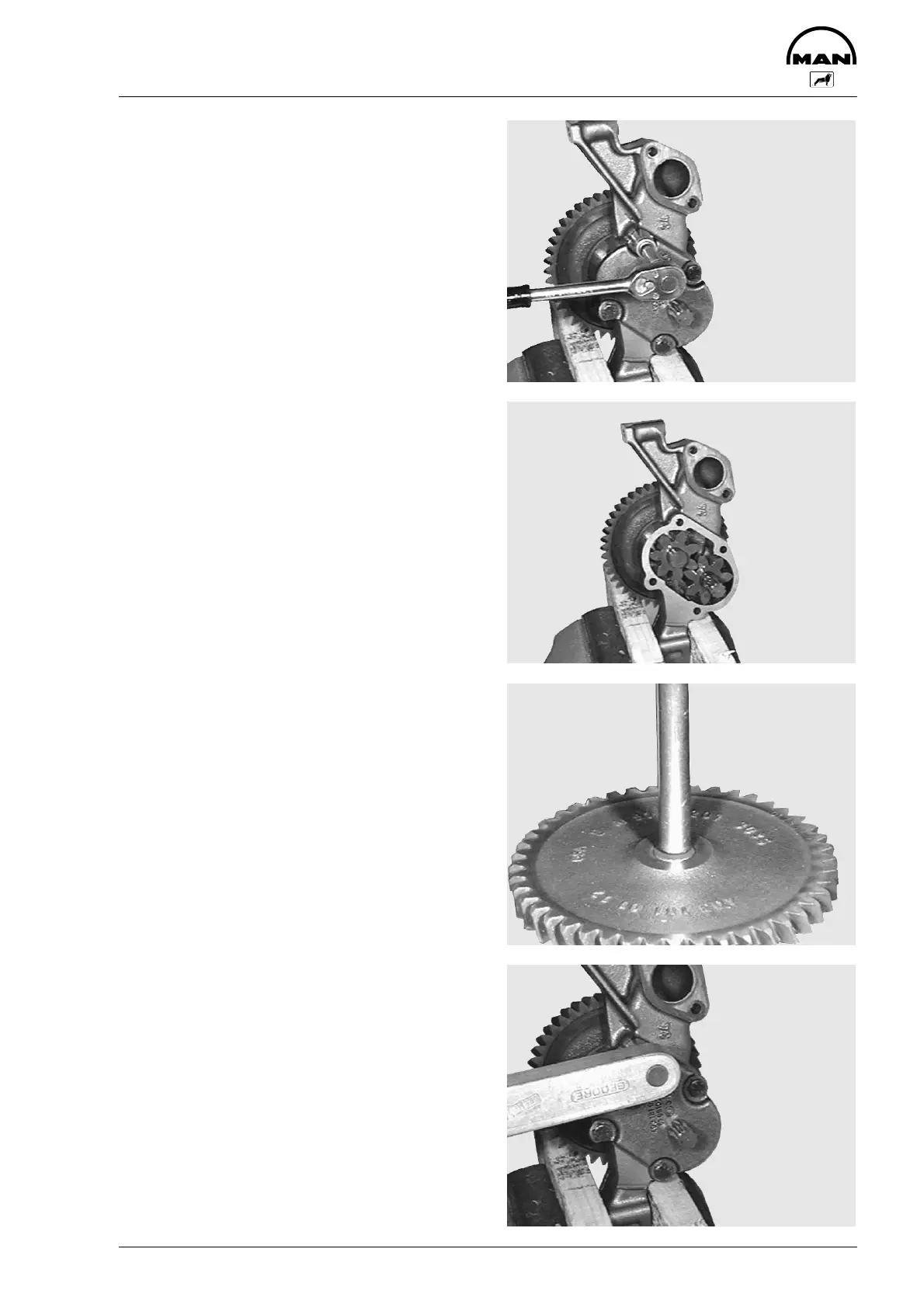

Fig. 5
Clamp the oil pump in a vice (use protective jaws).
Remove the oil pump cover.
Fig. 6
Pull the follower oil pump gear out of the housing.
Check gears and pump housing for wear.
Fig. 7
Remove the oil pump drive gear.
To do this, lay the pump on a suitable surface and
press off the drive gear with a mandrel.
To install, place the drive gear on the shaft, sup-
porting the opposite shaft end in the process.
Press on the drive wheel, observing the prescribed
gap (see “Service Data”).
Fig. 8
Fit the cover.
Tighten the securing bolts with the prescribed tor-
que.
Grind or replace covers with residues.
