Removing and fitting vibration damper,
replacing front crankshaft gasket
68
Replacing front crankshaft gasket

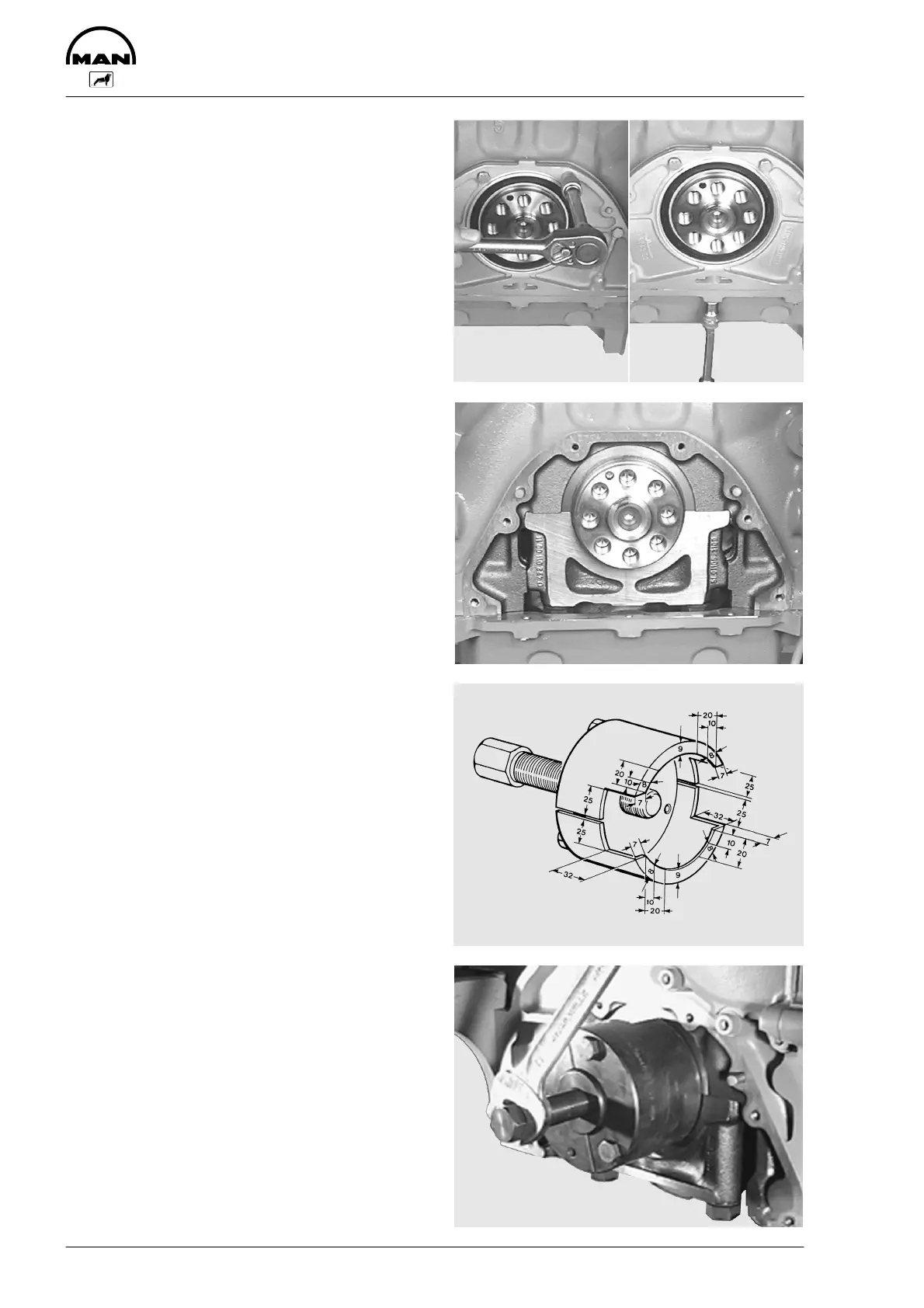

Fig. 3
Loosen the securing screws of the cover.
Fig. 4
Remove the cover.
Only replace the front crankshaft gasket as a com-
plete unit, i.e. replace the bearing race and the
radial shaft sealing ring.
Replacing bearing race
Fig. 5
A stripping device (special tool) is required to re-
move the bearing race.
Fig. 6
Pull off the bearing race.
