Fire damper - FDMRPage 20 Version 2023-06-15
TPM 140/19
400
130
130
110
Ø
D
120
400
Ø
D
110 136
39
120
400
110 180
Ø
D
120

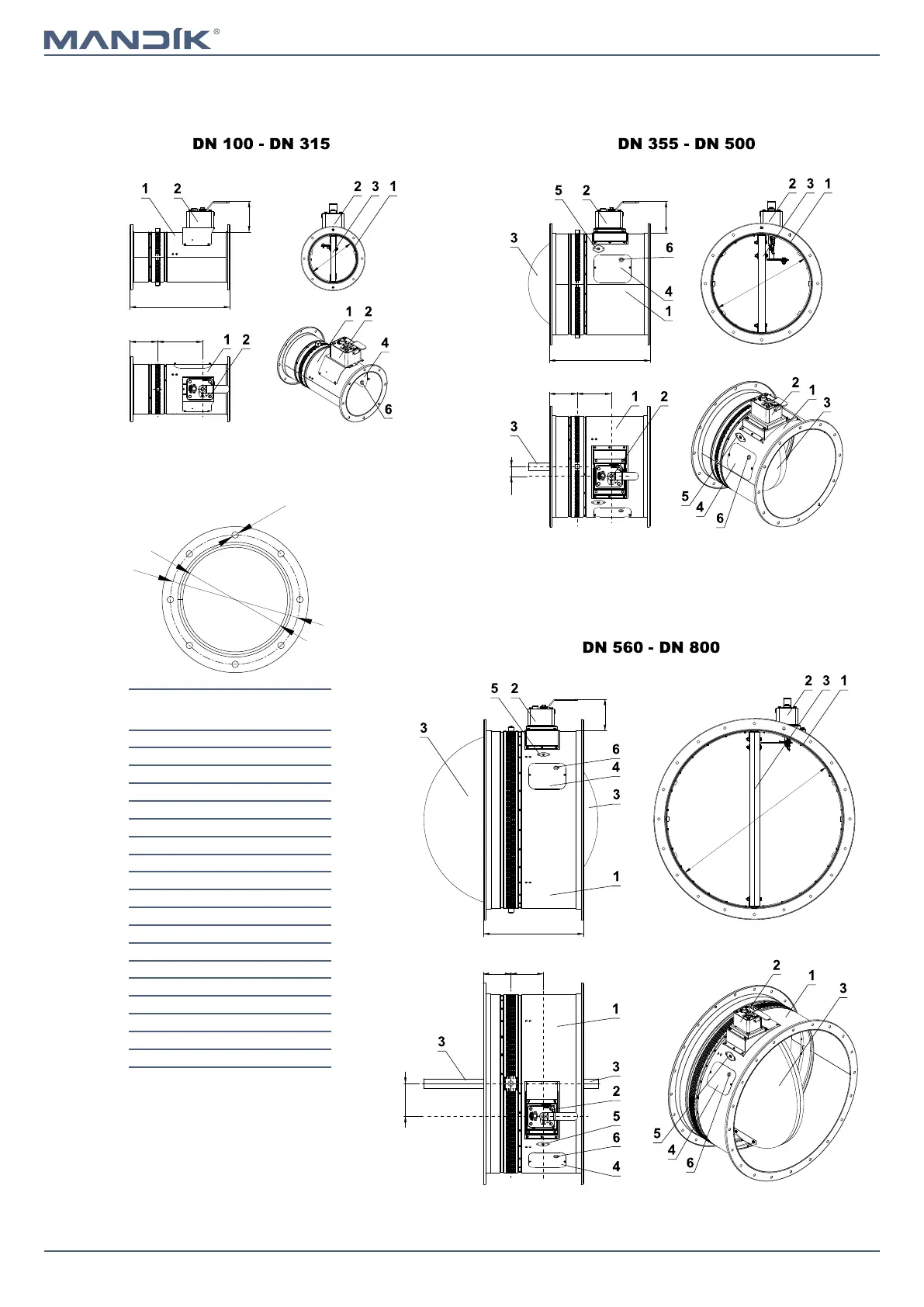

FLANGE design with manual control
1 Damper casing
2 Manual control
3 Damper blade
4
Inspection opening cover
5 Sensor sticker
6 Hole for camera
Ød
[mm]
Ød1
[mm]
Ød2
[mm]
n
number of holes
in the flange
100 130 10 4
125 155 10 8
160 195 10 8
180 215 10 8
200 235 10 8
225 260 10 8
250 285 10 8
280 315 10 8
300 335 10 8
315 350 10 12
355 390 10 12
400 445 12 12
450 495 12 12
500 545 12 16
560 605 12 16
600 650 12 16
630 680 12 16
710 760 12 20
800 860 12 20
Ø
d
Ød1
Ød2/n
