Fire damper - FDMRPage 62 Version 2023-06-15
TPM 140/19

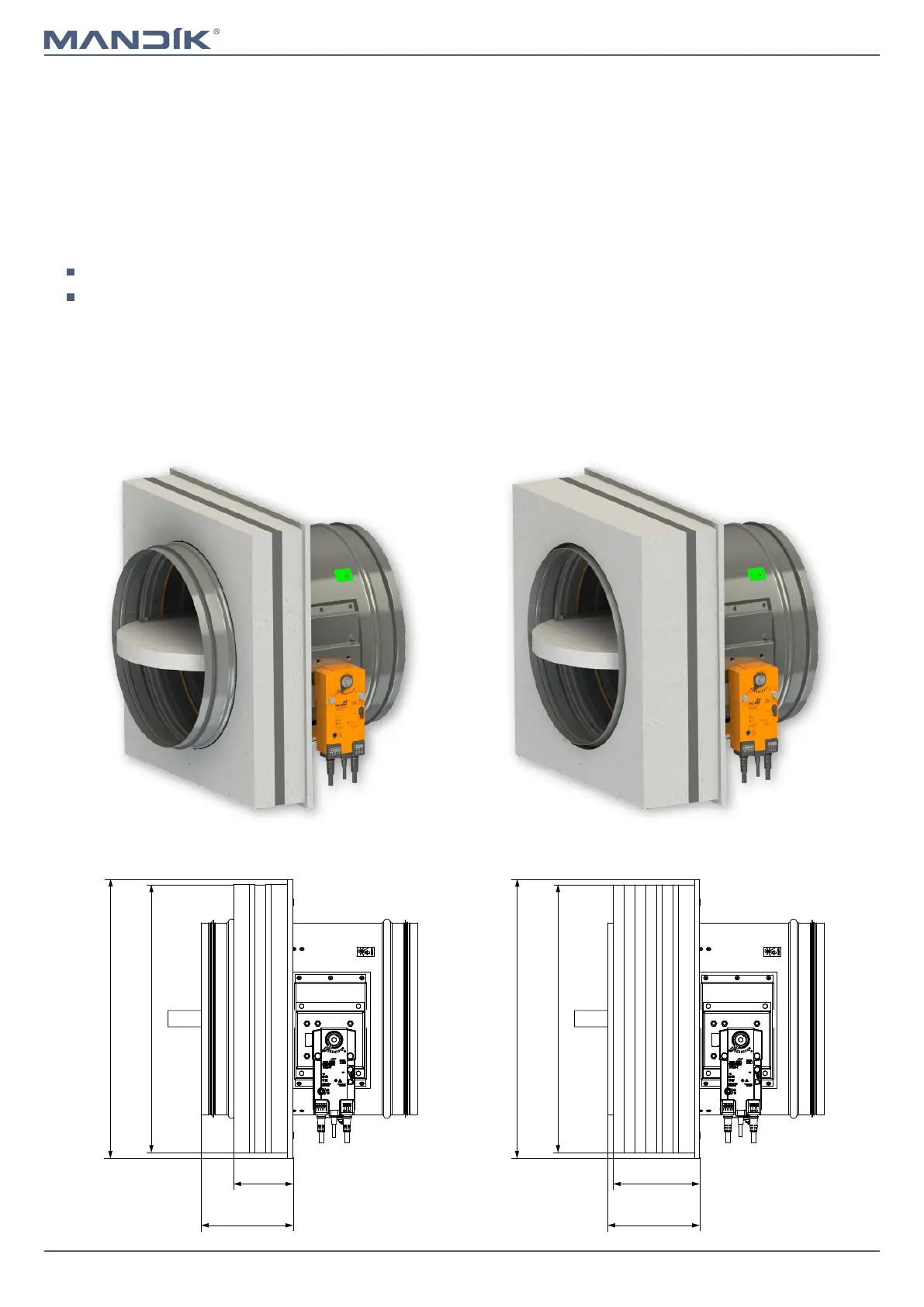

Installation frame R1, R2
■ Installation frames R1, R2 are designed for installation without additional sealing of the penetration into:
■ Solid wall construction
■ Gypsum wall construction
■ Solid ceiling construction
■ Installation frame is equipped with an intumescent sealing on the inside and outside. This sealing fills the gap between the
damper casing and frame and between the frame and construction in the event of a fire
Installation frame R1 - solid wall/gypsum wall th. 100 mm or solid ceiling th. 110 mm
Installation frame R2 - solid wall/gypsum wall th. 150 mm or solid ceiling th. 150 mm
■ Material:
■ Installation frame - cement-lime boards
■ Fasteners - galvanized steel
110
170
ØD+140
ØD+160
160
170
ØD+140
ØD+160
Installation frame R1 Installation frame R2
