Page 43Version 2023-06-15 Fire damper - FDMR
TPM 140/19
X
40...130
X
40...130
Ø
D
min. ØD+80
max. ØD+260
≥ 20
≥ 100
≥ 100
■ For connection of following duct → see page 90
■ Installation is limited to DN 200 mm diameter

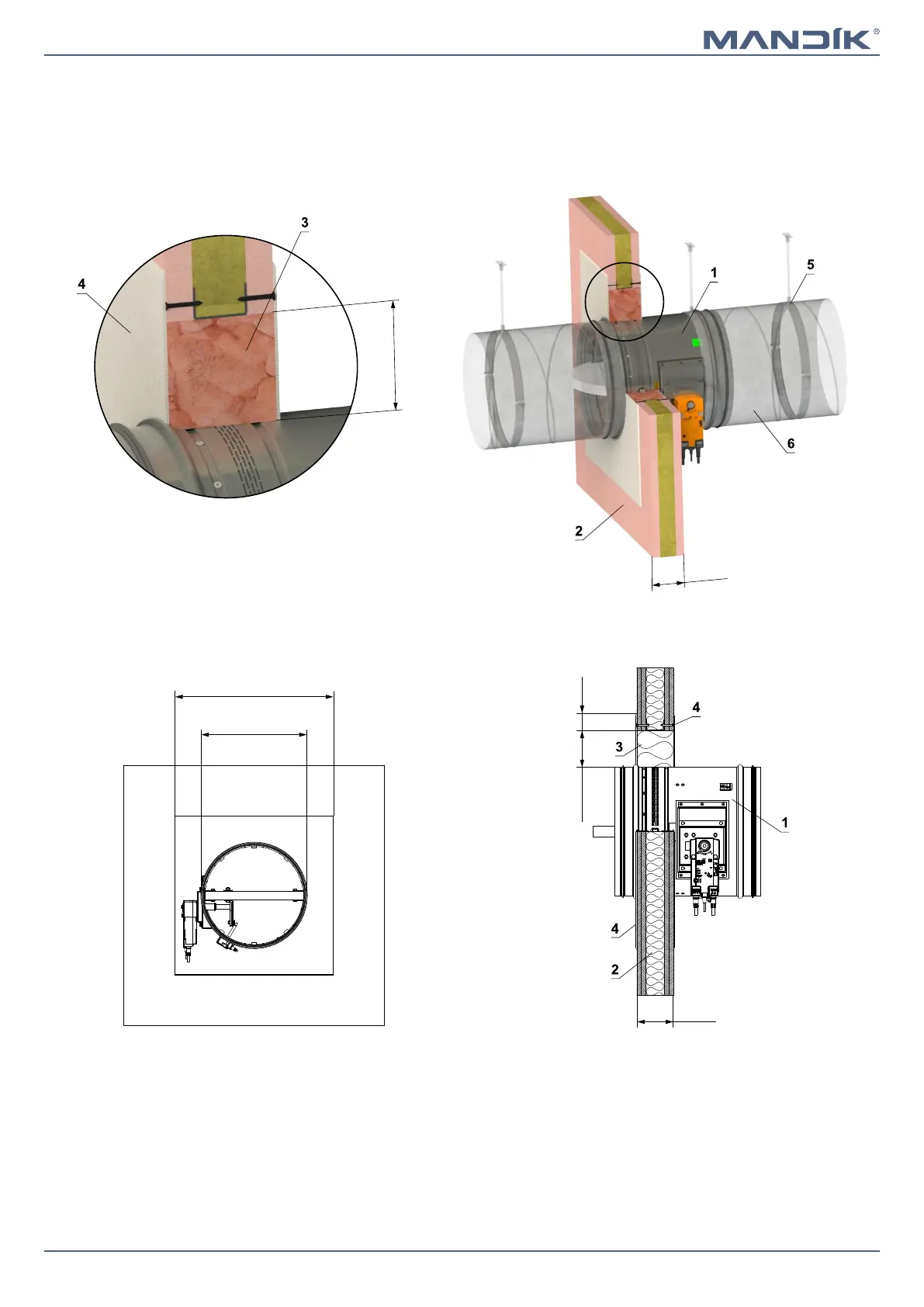

In gypsum wall construction - fire-resistant foam with stucco plaster
EIS 60
1 FDMR
2 Gypsum wall construction
3 Fire-resistant foam HILTI CFS-F FX
4 Stucco plaster
5 Clamp with threaded rod → see pages 87 to 89
6 Duct
