Mandik FDMR - Installation Frames

Page 61Version 2023-06-15 Fire damper - FDMR
TPM 140/19
Installation frames
■ Installation frame can be installed on the
damper or delivered separately
List of installation frames and installation options
Installation
frame
Wall thickness (mm)
Solid wall construction Gypsum wall construction Solid ceiling construction
In
construction
Outside
construction
On
construction
In
construction
Outside
construction
On
construction
In
construction
Outside
construction
On
construction
R1 ≥ 100 – – ≥ 100 – – ≥ 110/125 – –
R2 ≥ 150 – – ≥ 150 – – ≥ 150 – –
R3 ≥ 100 – – ≥ 100 – – ≥ 110/125 – –
R4 ≥ 150 – – ≥ 150 – – ≥ 150 – –
R5* – – ≥ 100 – – ≥ 100 –
≥ 110/125**
≥ 110/125
R6 – ≥ 100 – – – – – ≥ 110/125 –
R7 – – – ≥ 100*** – – – – –
* Only for SPIRO design ** Concreting *** Flexible ceiling

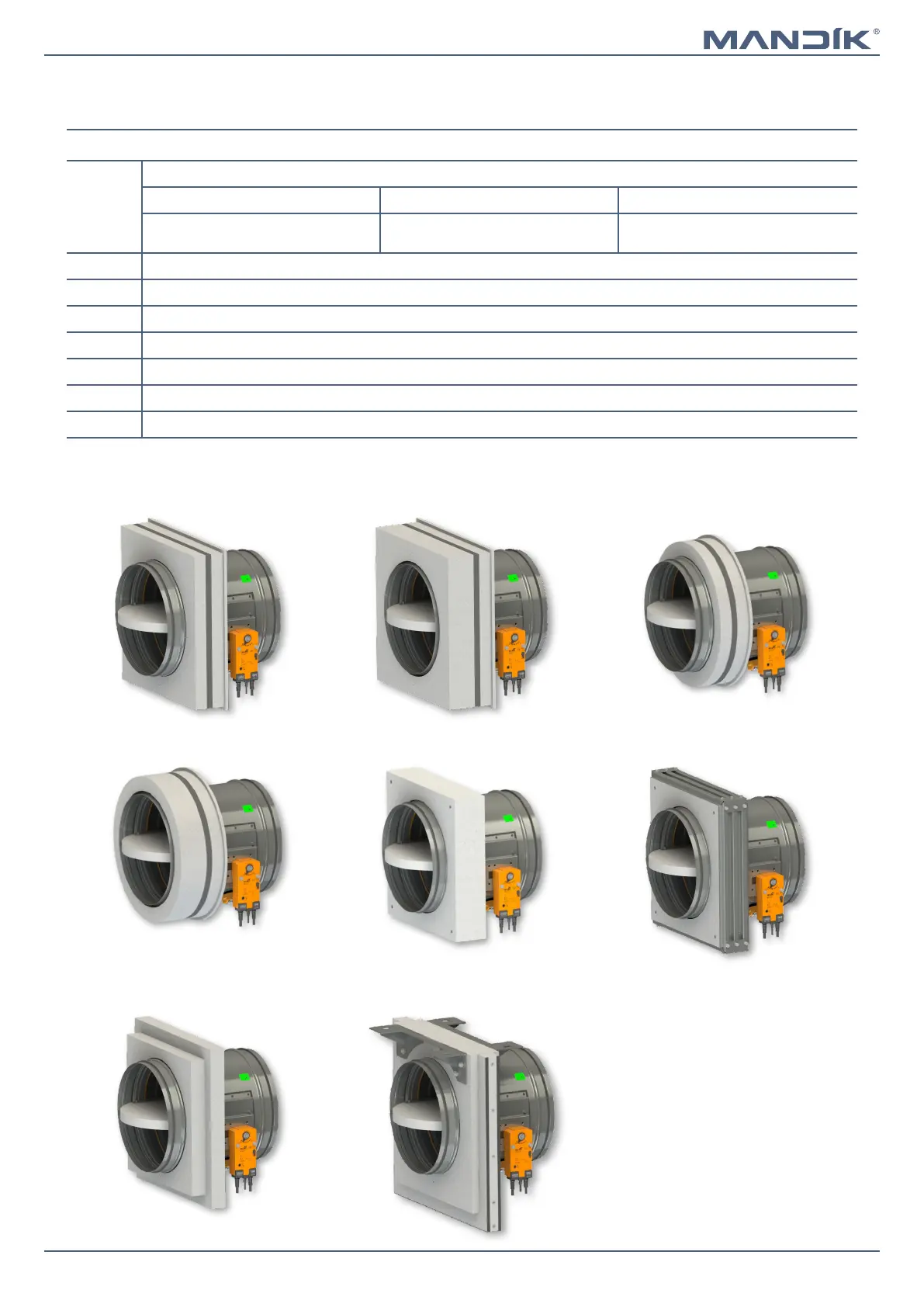

Installation frame R4 Installation frame R5 (DN 225-800)Installation frame R5 (DN 100-200)
Installation frame R1 Installation frame R2 Installation frame R3
Installation frame R7Installation frame R6
