Fire damper - FDMRPage 74 Version 2023-06-15
TPM 140/19
Installation frame R5
■ Installation frames R5 is designed for installation on:
■ Solid wall construction
■ Gypsum wall construction
■ Solid ceiling construction
■ Outside solid ceiling construction with concreting
■ Installation frame R5 is only for SPIRO design
■ Installation frame is equipped with an intumescent sealing on the inside. This sealing fills the gap between the damper
casing and frame in the event of a fire
■ Installation frame R5 for dampers from ØD 225 mm is with sheet metal reinforcements
■ Material:
■ Installation frame - cement-lime boards
■ Fasteners - galvanized steel

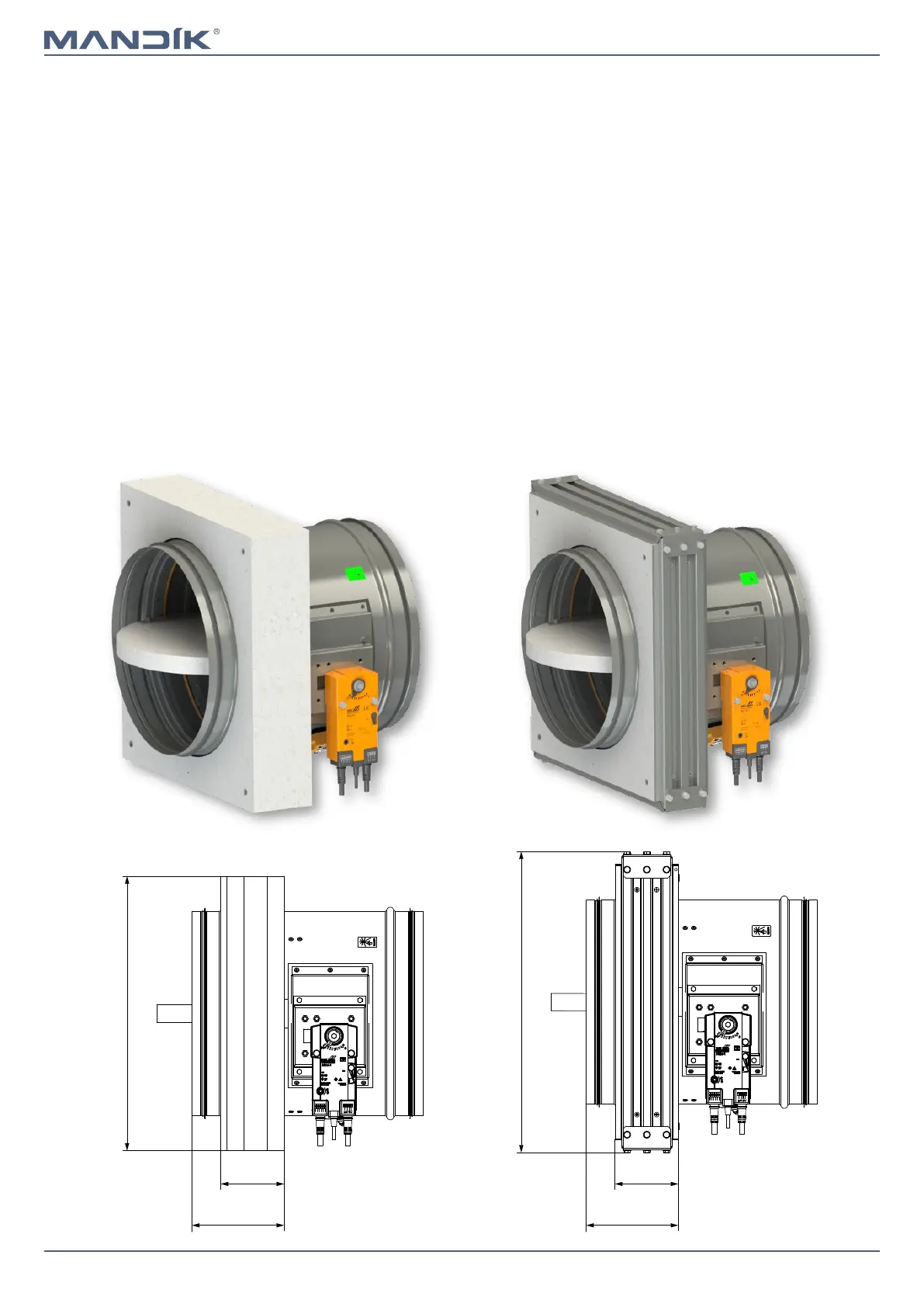

Installation frame R5 (ØD 100-200) Installation frame R5 (ØD 225-800)
110
160
ØD+120
110
160
ØD+167
