Fire damper - FDMRPage 84 Version 2023-06-15
TPM 140/19
Installation frame R7

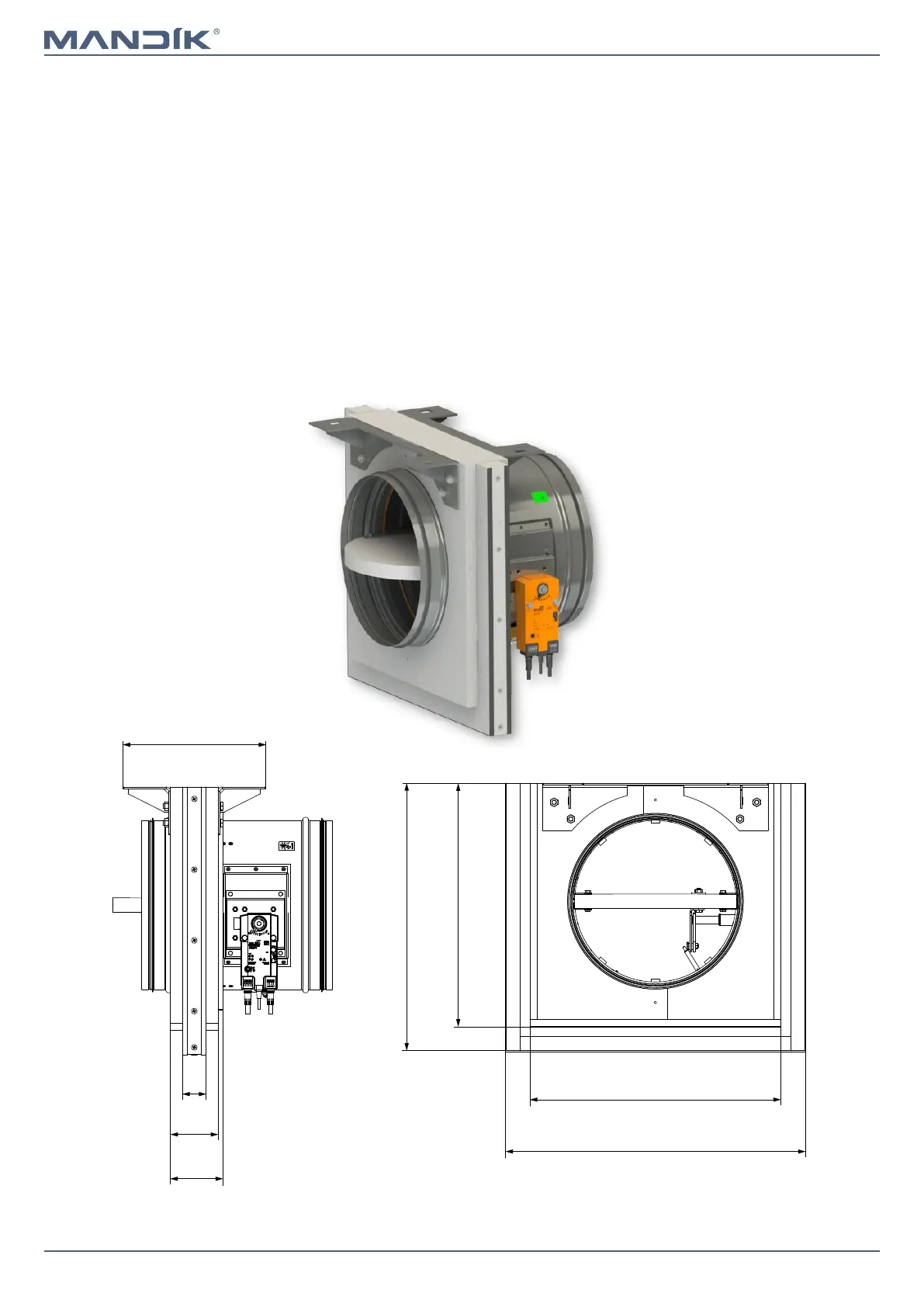

■ Installation frames R7 is designed for installation without additional sealing of the penetration for:
■ Installation in gypsum walls under flexible ceilings with a maximum movement of 40 mm
■ Wall thicknesses 100 to 150 mm
■ Installation frame is equipped with an intumescent sealing on the inside and outside. This sealing fills the gap between the
damper casing and frame and between the frame and construction in the event of a fire
■ Position of the damper can be directly on the ceiling or at a distance of max. 80 mm from the ceiling
■ Material:
■ Installation frame - cement-lime boards
■ Fasteners - galvanized steel
100
50
ØD+276
(from promaseal)
ØD+170
ØD+155
ØD+208
(from promaseal)
110
300
Installation frame R7
