Mandik FDMR - Installation in Solid Walls

Fire damper - FDMRPage 28 Version 2023-06-15
TPM 140/19

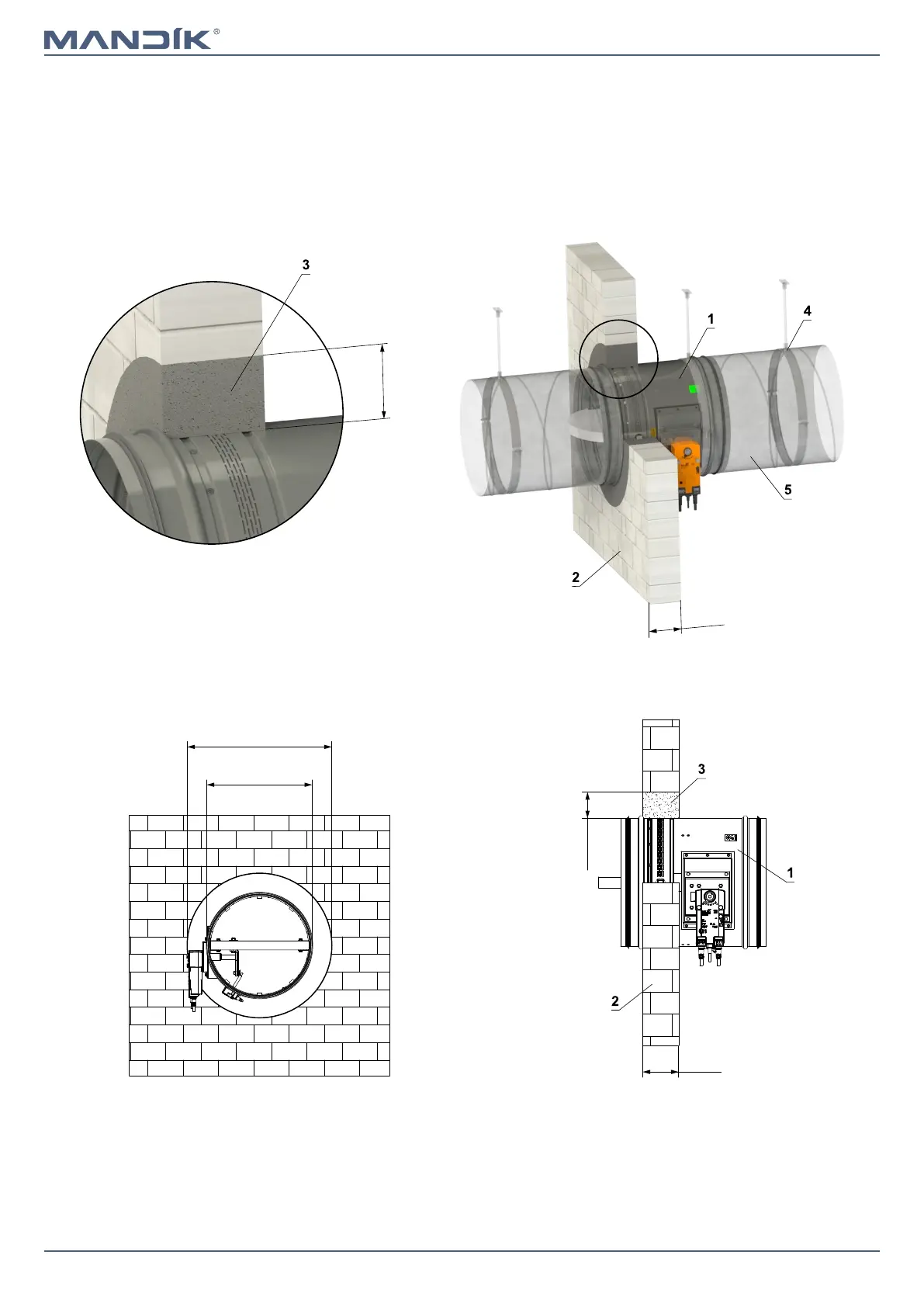

In solid wall construction
1 FDMR
2 Solid wall construction
3 Mortar or gypsum
4 Clamp with threaded rod → see pages 87 to 89
5 Duct
In solid wall construction - mortar or gypsum
■ For connection of following duct → see page 90
X
X
≥ 100
40...150
40...150
≥ 100
ØD
min. ØD+80
max. Ø
D+300
EIS 90
EIS 120
EIS 120 - 500 Pa
up to diameter DN 315 mm
