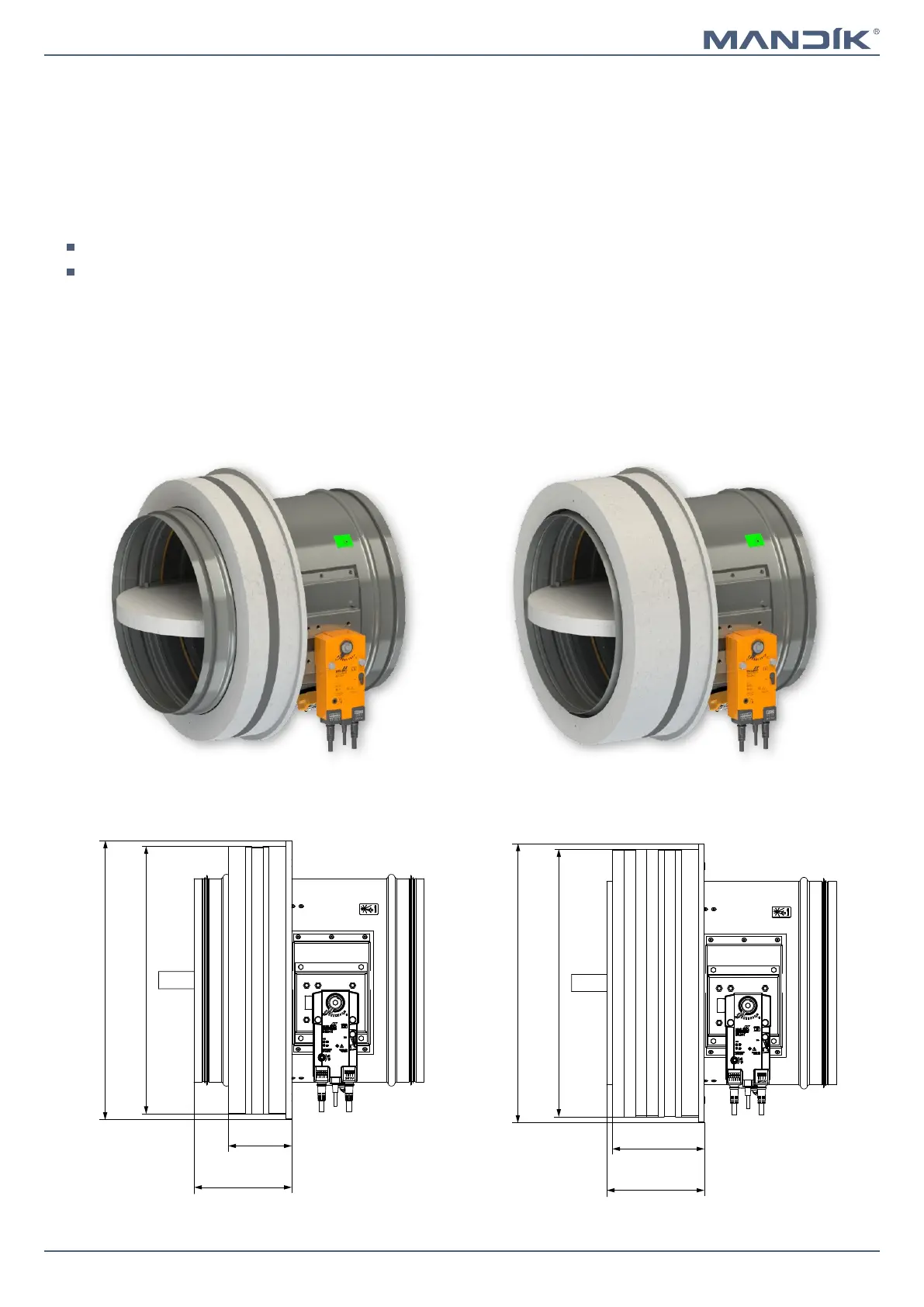

Installation frame R3, R4
■ Installation frames R3, R4 are designed for installation without additional sealing of the penetration into:
■ Solid wall construction
■ Solid ceiling construction
■ Installation frame is equipped with an intumescent sealing on the inside and outside. This sealing fills the gap between the
damper casing and frame and between the frame and construction in the event of a fire
Installation frame R3 - solid wall th. 100 mm or solid ceiling th. 110 mm
Installation frame R4 - solid wall th. 150 mm or solid ceiling th. 150 mm
■ Material:
■ Installation frame - cement-lime boards
■ Fasteners - galvanized steel
Installation frame R3 Installation frame R4
110
170
160
170
ØD+110
ØD+130
ØD+110
ØD+130
