Mandik FDMR - Installation in Solid Ceilings

Page 53Version 2023-06-15 Fire damper - FDMR
TPM 140/19
40...150
X
X
≥
110 *
40...150
Ø
D
min. Ø
D+80
max. Ø
D+300
* min. 110 mm - Concrete - for EIS 90
min. 125 mm - Aerated concrete - for EIS 90 and EIS 120
min. 150 mm - Concrete - for EIS 120
≥ 110 *

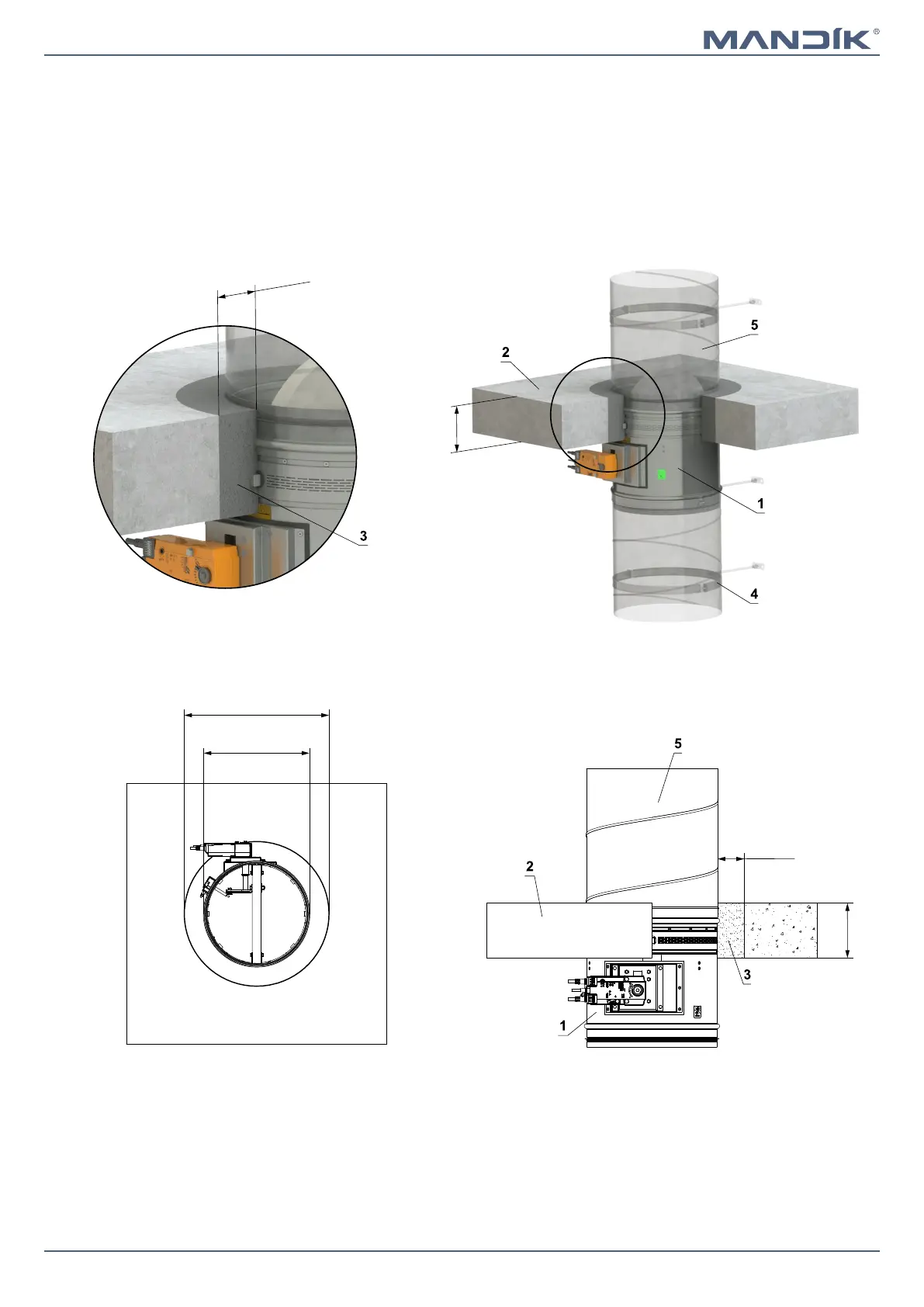

In solid ceiling construction
In solid ceiling construction - mortar or gypsum
■ For connection of following duct → see page 90
EIS 90
EIS 120
EIS 120 - 500 Pa
up to diameter DN 315 mm
1 FDMR
2 Solid ceiling construction
3 Mortar or gypsum
4 Clamp with threaded rod → see pages 87 to 89
5 Duct
