Mandik FDMR - Page 52

Fire damper - FDMRPage 52 Version 2023-06-15
TPM 140/19
1 FDMR
2 Installation frame R1
3 Bracket with fasteners (delivered with frame)*
4 Fill the gaps with glue PROMAT K84
5 Fire-resistant board th. 20 mm Rigips Glasroc F Ridurit
6 Screw Rigips Ridurit TX 3,5x35 mm
7 Additional fire-resistant board th. 20 mm Rigips Glasroc F Ridurit

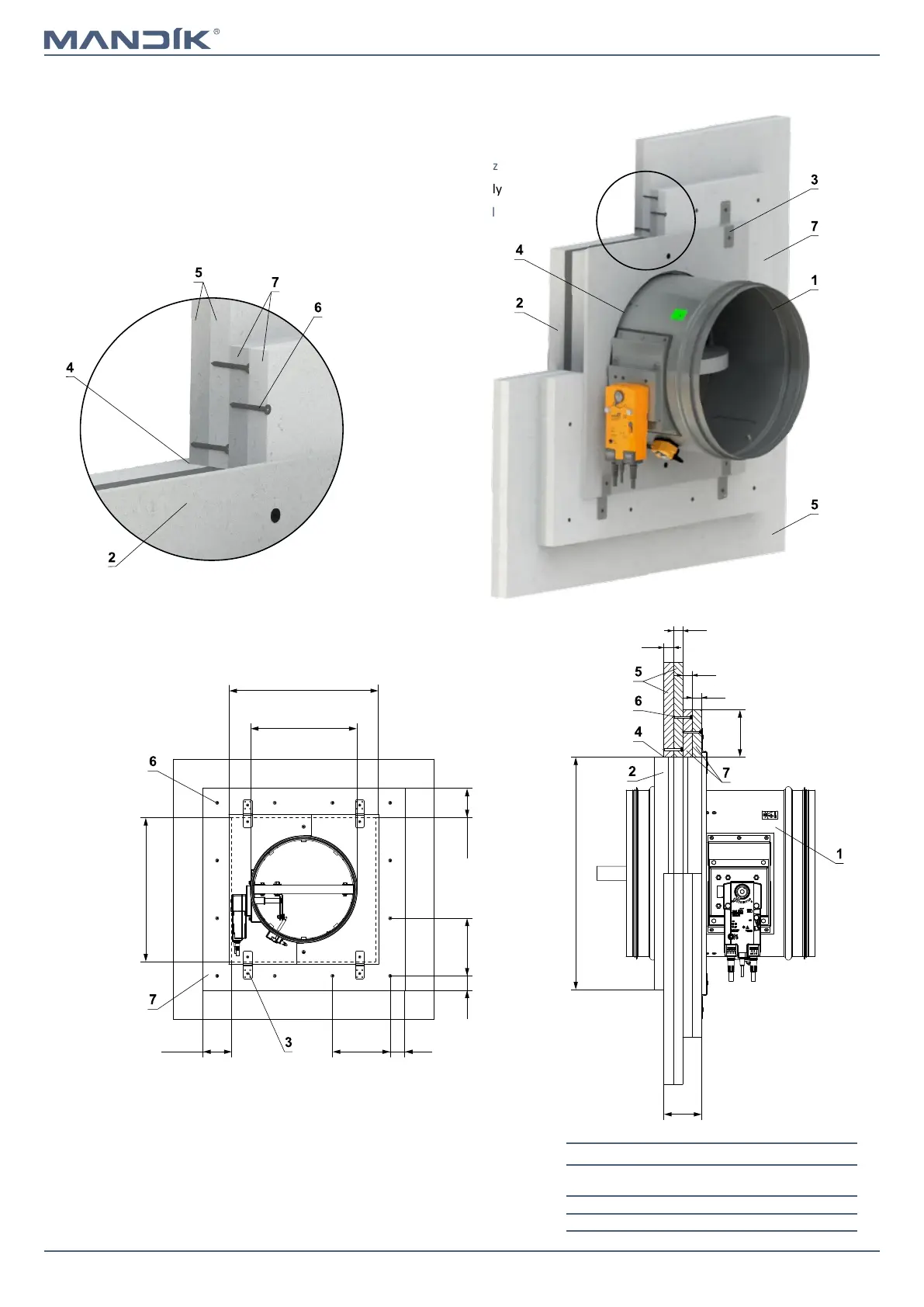

In shaft wall Rigips - installation frame R1
■ For connection of following duct → see page 90
■ Follow shaft wall manufacturer's instructions
■ All technical specifications and conditions can be found at www.rigips.cz
■ Installation frame can be installed on the damper or delivered separately
■ Installation procedure of the installation frame for FDMR → see manual
■ For more R1 frame details → see page 62
Ø
D
Ø
D+160
≤ 250
50
≤ 250 50
≥ 100
≥ 100
X
80
20
20
20
≥ 100
EIS 90
* Bracket with fasteners for 1 damper
FDMR diameter
Number of
brackets
Number of
screws
D ≤ 400 4 8
400 < D ≤ 800 8 16
ØD+145
+3
(installation opening)
20
X
Ø
D+145
+3
(installation opening
)
