Fire damper - FDMRPage 90 Version 2023-06-15
TPM 140/19

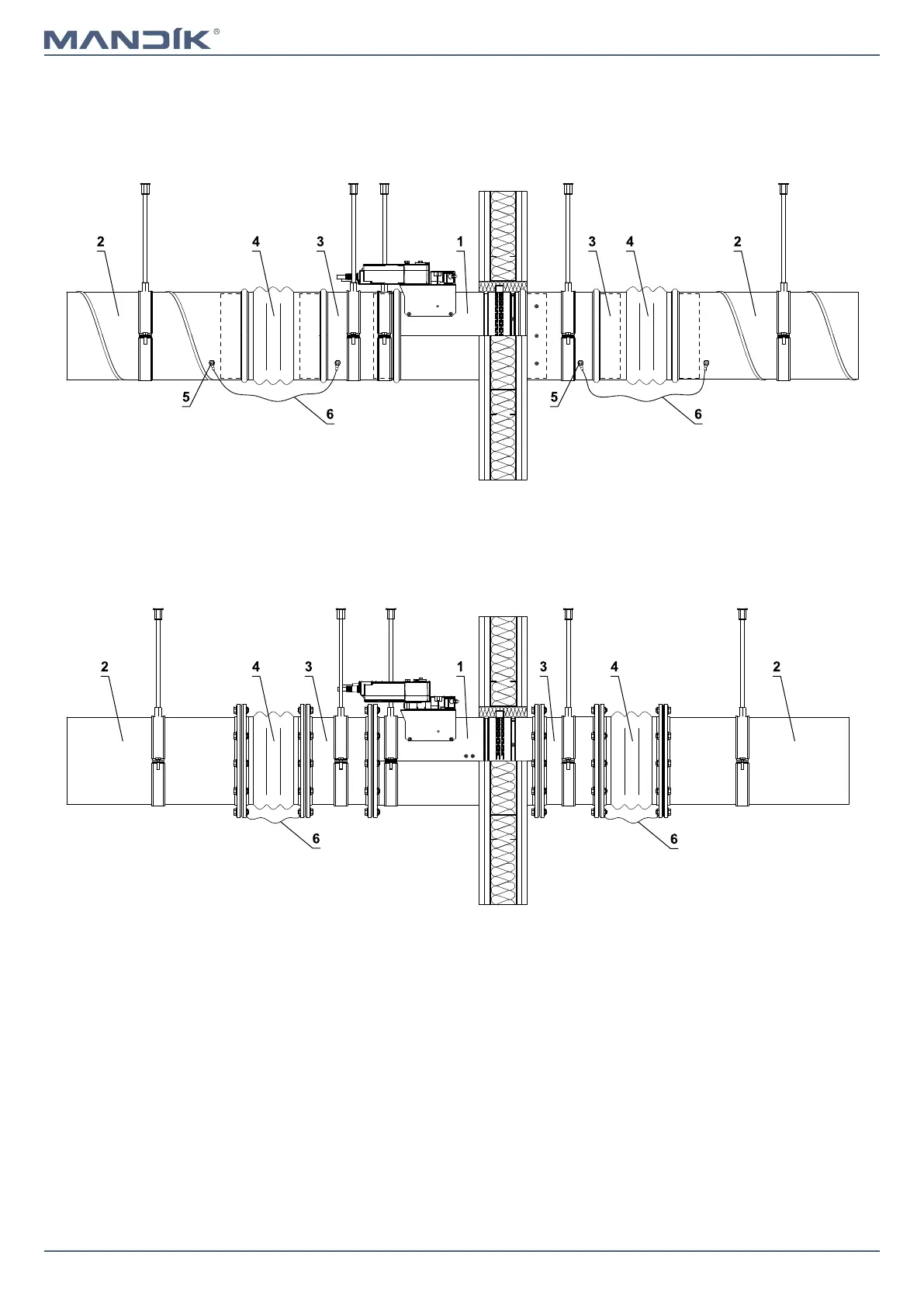

Example of duct connection
1 FDMR
2 Duct
3 Extension piece (if required)
4 Damping pad
5 Bolt assembly M8 (bolt M8x20 mm, 2 pcs large washer M8, nut M8)
6 Electrically conductive connection of the damping pad with extension piece and duct
SPIRO design
FLANGE design
