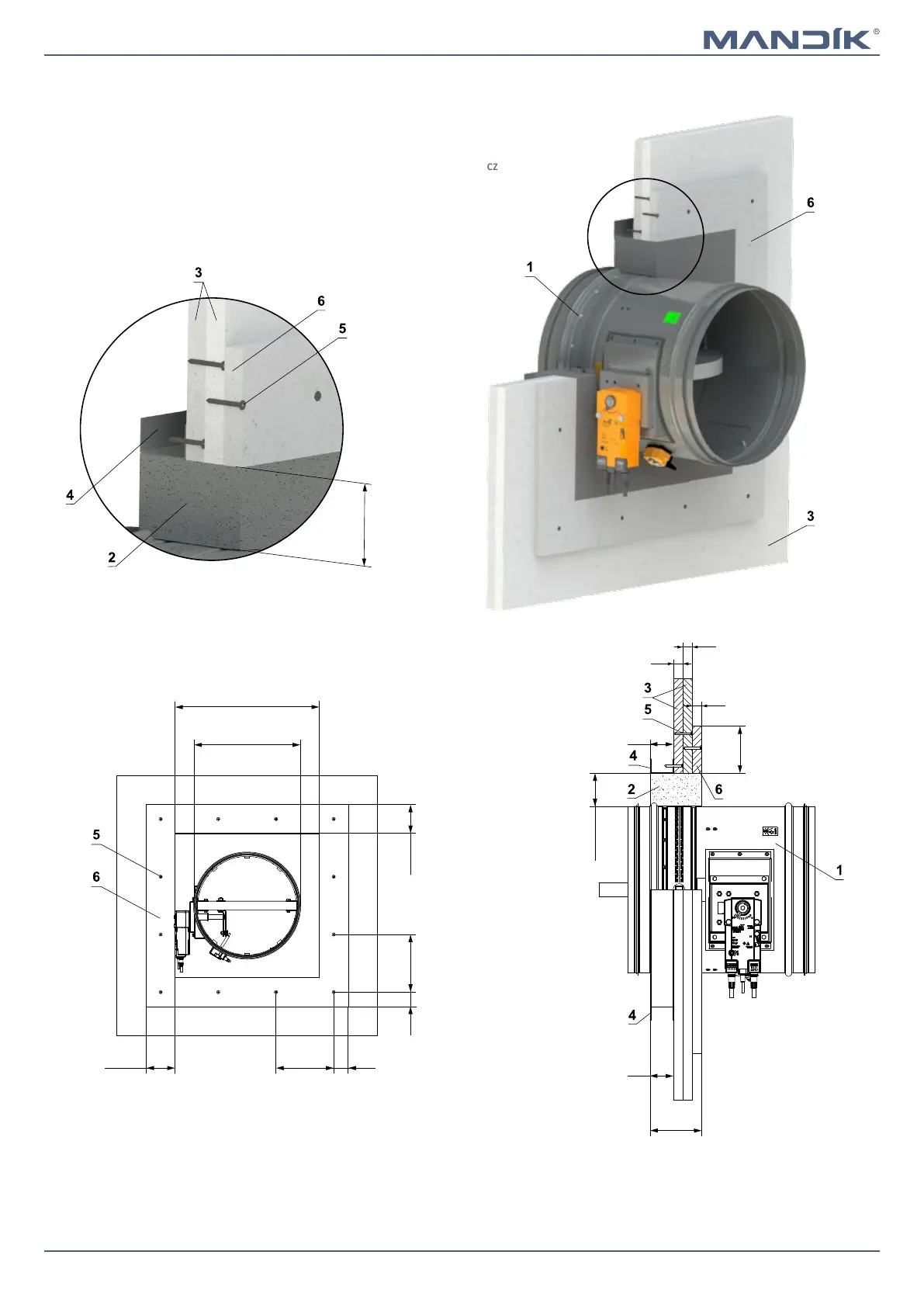

Page 51Version 2023-06-15 Fire damper - FDMR
TPM 140/19
1 FDMR
2 Mortar or gypsum
3 Fire-resistant board th. 20 mm Rigips Glasroc F Ridurit
4 Steel U-profile Rigips R-UW 50 or Rigips R-CW 50
5 Screw Rigips Ridurit TX 3,5x35 mm
6 Additional fire-resistant board tl. 20 mm Rigips Glasroc F Ridurit
In shaft wall Rigips - mortar or gypsum
EIS 90
■ For connection of following duct → see page 90
■ Follow shaft wall manufacturer's instructions
■ All technical specifications and conditions can be found at www.rigips.cz
40...150
ØD
min. ØD+80
max. Ø
D+300
≤ 250
50
≤ 250 50
≥ 100
X
40...150
110
50
20
20
20
50
≥ 100
X
≥ 100
