Fire damper - FDMRPage 72 Version 2023-06-15
TPM 140/19
EIS 90
ØD
Ø
D+130
Ø
D+115
+3
(installation opening
)
≥ 100 (R3)
≥ 150 (R4)
Ø
D+115
+3
(installation opening)
* Bracket with fasteners for 1 damper
FDMR diameter
Number of
brackets
Number of
screws
D ≤ 400 4 8
400 < D ≤ 800 8 16
1 FDMR
2 Installation frame
3 Bracket with fasteners (delivered with frame)*
4 Fill the gaps with glue PROMAT K84
5 Duct
6 Clamp with threaded rod → see pages 87 to 89
7 Solid wall construction

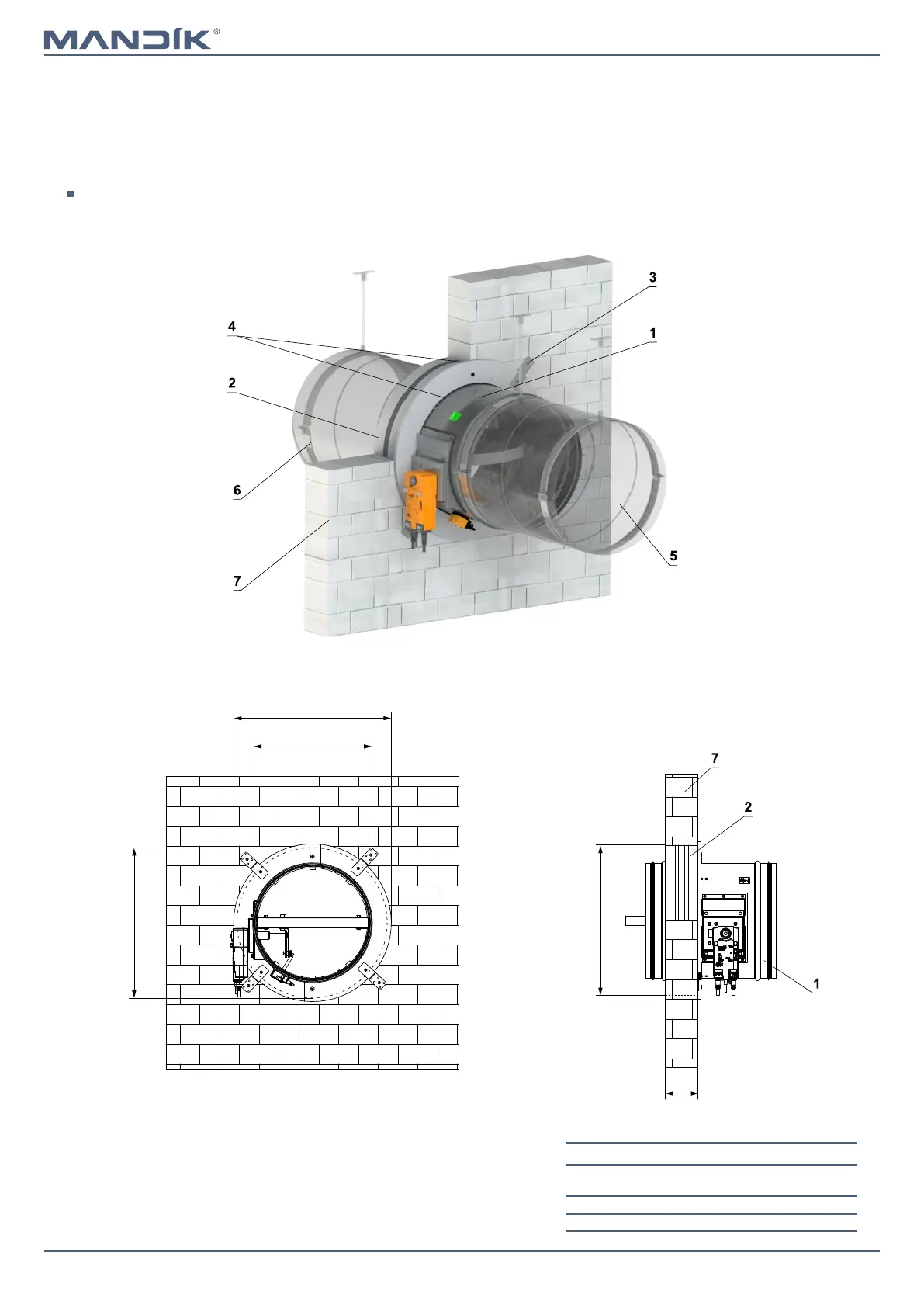

In solid wall construction - installation frame R3, R4
■ For connection of following duct → see page 90
■ Installation frame can be installed on the damper or delivered separately
■ Installation procedure of the installation frame for FDMR → see manual
Installation frame R3 - wall th. 100 mm
■ Installation frame R4 - wall th. 150 mm
