Page 85Version 2023-06-15 Fire damper - FDMR
TPM 140/19
In gypsum wall construction - flexible ceiling - installation frame R7
■ Detailed instructions for installation R7 frame → see manual
■ For connection of following duct → see page 90
■ Installation frame can be installed on the damper or delivered separately
■ Installation procedure of the installation frame for FDMR → see manual
■ Gypsum construction must be made in accordance with the specifications of the wall system manufacturer
EIS 90

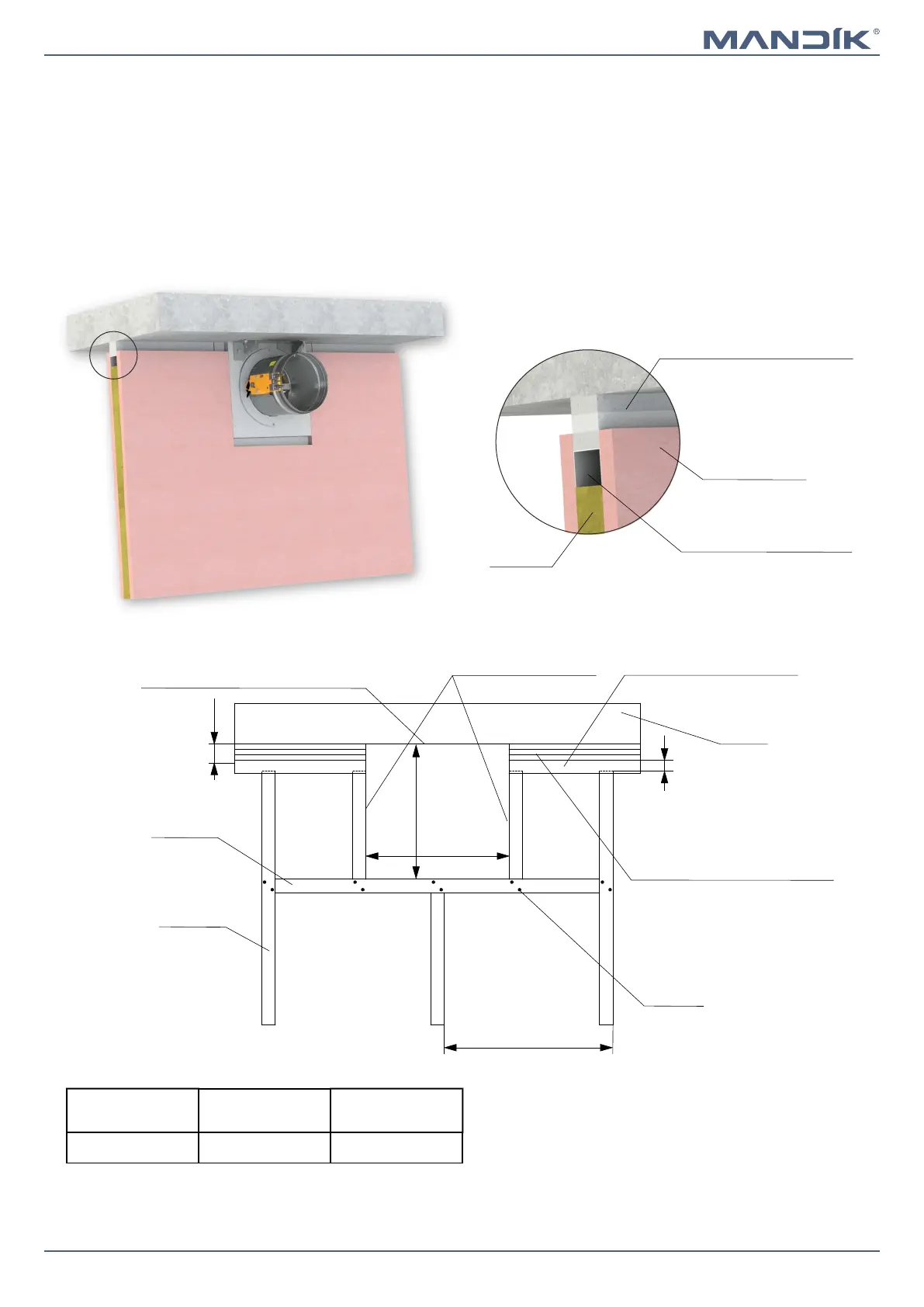

Installation directly on the ceiling
Connection of the flexible ceiling
according to wall specifications
UW-profile (screwed to the
connection of the flexible
ceiling)
Gypsum boards
Insulation
UW-Profile
CW-Profile
≤ 625
2x screw
Connection of the flexible ceiling
according to wall specifications
Ceiling
X
UW-profile (screwed to the
connection of the flexible
ceiling)
Apply intumescent sealant between
the ceiling and frame
(e.g. Hilti CP611A, Promaseal-AG)
Closed sides of profile
X+20
Z
W
■ X = ceiling movement = 10 to 40 mm
■ F = gap between frame (promaseal) and profile = 2 to 5 mm
Installation frame
W
[mm]
Z
[mm]
R7
ØD + 208 + X + F ØD + 276 + (2 x F)
