Page 39Version 2023-06-15 Fire damper - FDMR
TPM 140/19
EIS 90
Y
X
≥ 100
X
40...150
≥ 100
Ø
D
min.
Ø
D+80
max.
Ø
D+300
2xØ
D+30…120
min. 2xØD+30+80
max. 2x
Ø
D+120+300
A
A
Y
40...150
min. 2xØ
D+30+80
max. 2x
ØD+120+300
2xØD+30…120
B
Ø
D
min. ØD+80
max. ØD+300
B
B-B
≥ 100
40...150
≥ 100
A-A
40...150
30...120
30...120
1 FDMR
2 Gypsum wall construction
3 Mortar or gypsum
4 Clamp with threaded rod → see pages 87 to 89
5 Duct

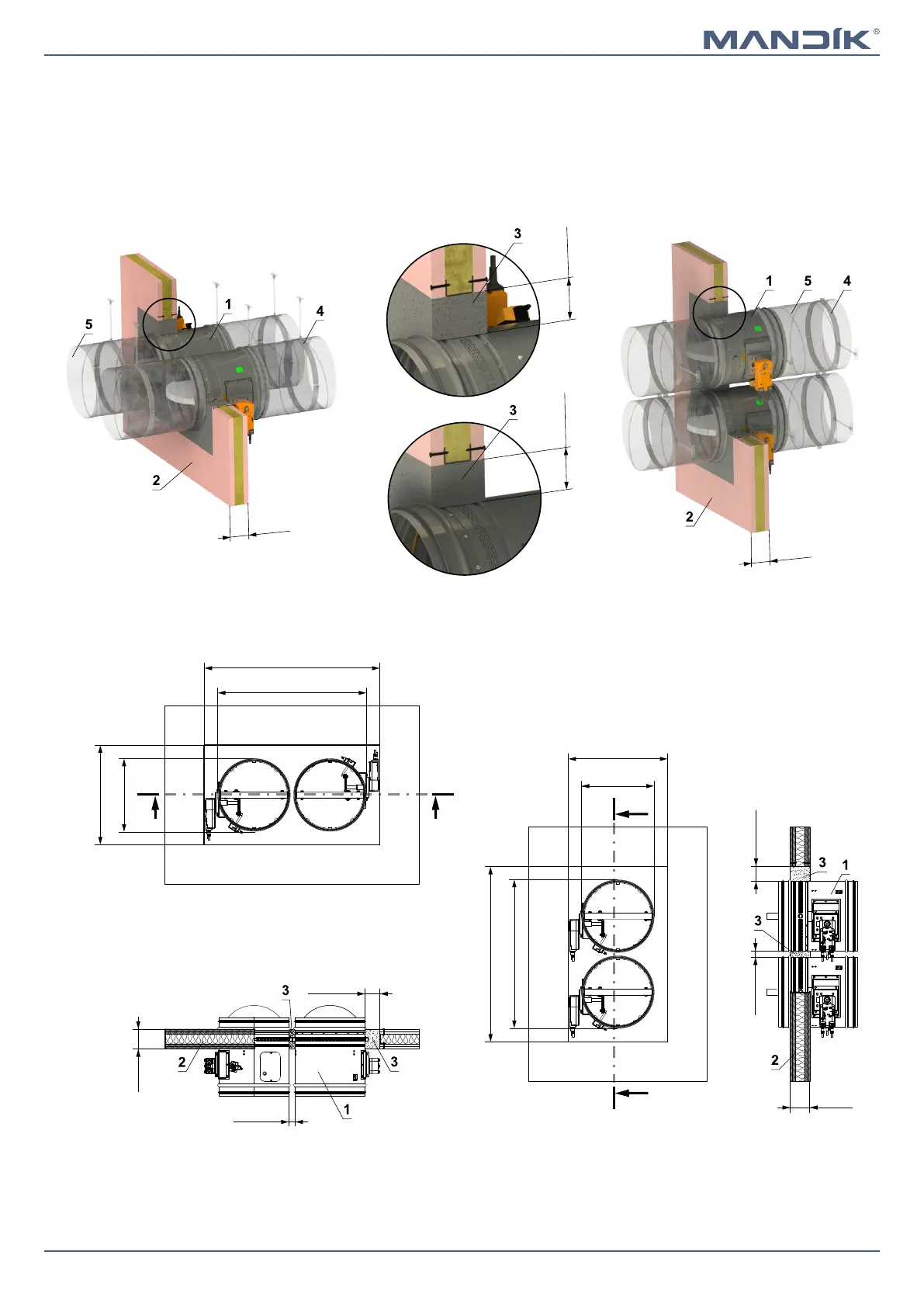

In gypsum wall construction - 2 dampers in one opening - mortar or gypsum
■ For connection of following duct → see page 90
■ The gap between the damper and construction is filled with mortar or gypsum
■ It is possible to install up to 4 dampers symmetrically in one opening
