Page 45Version 2023-06-15 Fire damper - FDMR
TPM 140/19
≥ 100
A
A
A-A
35...150
35...150
35...150
min.
Ø
D+70
max.
Ø
D+300
Ø
D

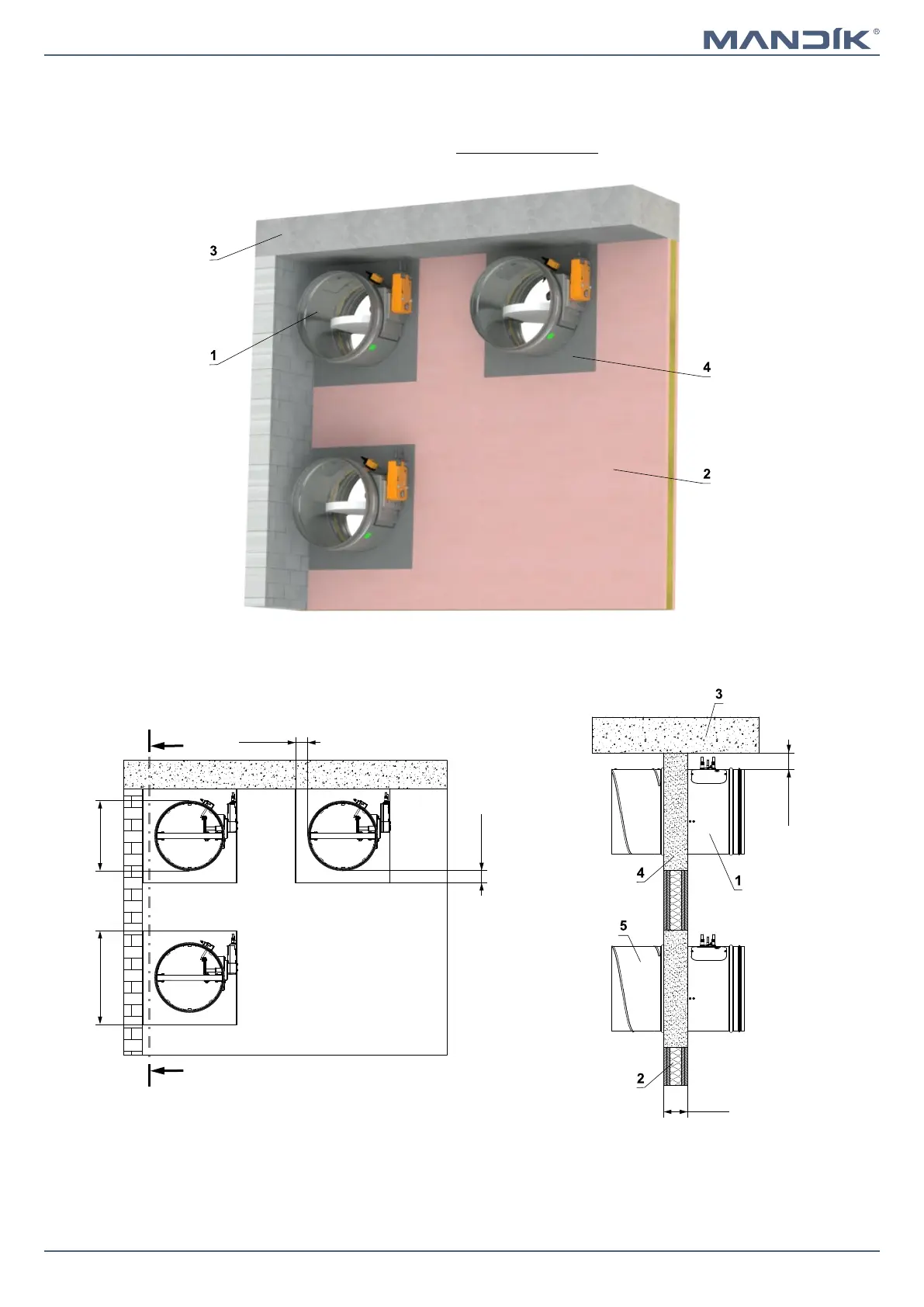

In gypsum wall construction - installation next to the wall/ceiling - mortar or gypsum
■ For connection of following duct → see page 90
■ Conditions of this installation are also valid for the installation in Solid ceiling construction
EIS 90
1 FDMR
2 Gypsum wall construction
3 Solid ceiling construction
4 Mortar or gypsum
5 Duct
