Page 5Version 2023-06-15 Fire damper - FDMR
TPM 140/19
Nominal voltage and maximal current AC 230V / 5A
Class of protection IP 67
Working temperature
-25°C … +120°C

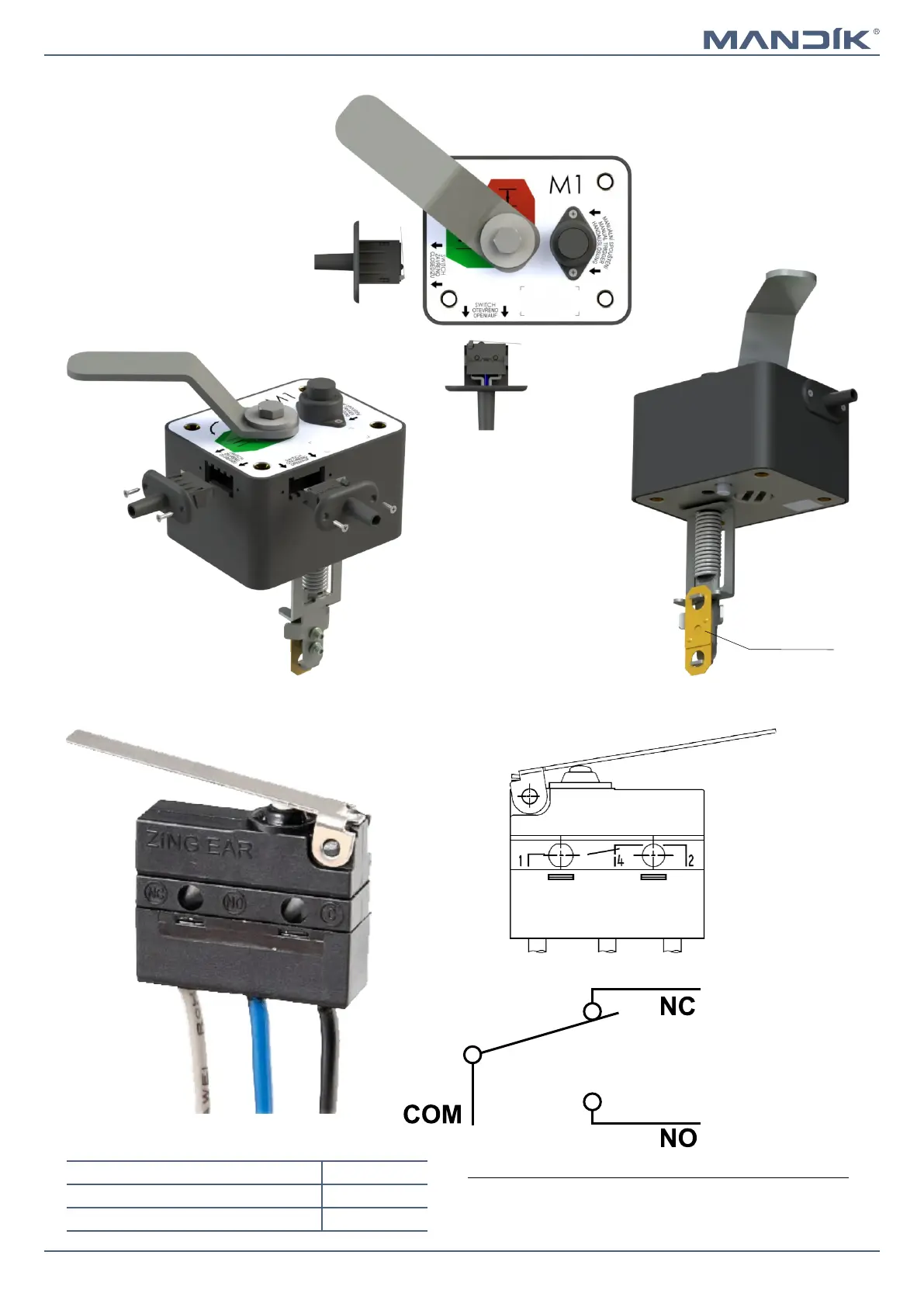

Limit switch G905-300E03W1
This limit switch is possible to connect in two following ways
■ CUT-OFF if the arm is moving … connect wire 1+2
■ SWITCH-ON if the arm is moving … connect wire 1+4
1(COM) - black wire
2(NC) - gray wire
4(NO) - blue wire
Manual control
Thermal fuse
