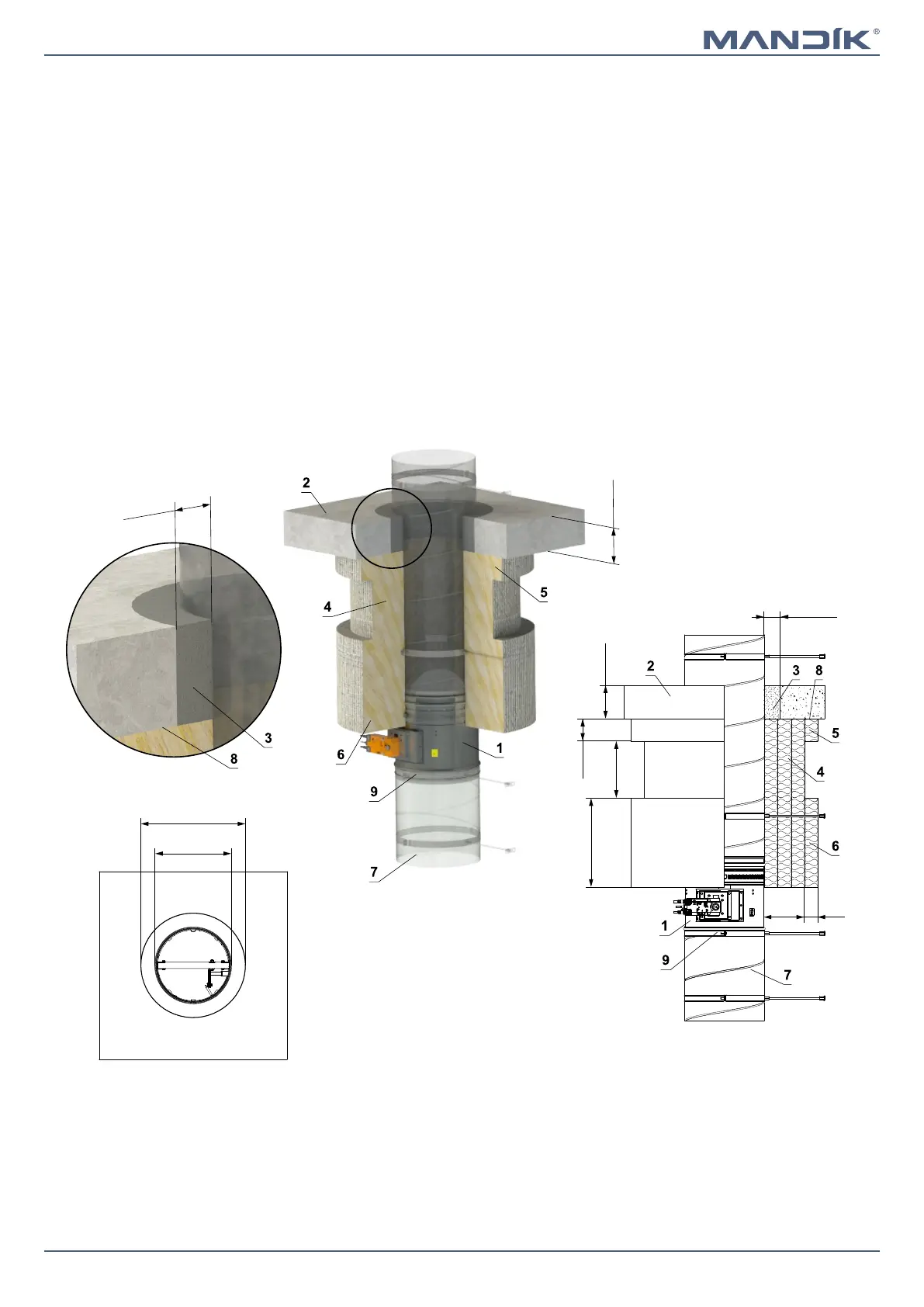

Page 59Version 2023-06-15 Fire damper - FDMR
TPM 140/19
ØD
min. ØD+80
max. ØD+300
≥ 110 *
X
X
40...150
≥ 110*
40...150
6
Insulation collar of the damper and duct connection - th. 60 mm (System
ROCKWOOL Wired Mat 105 Alu)
7
Standard air duct, made of galvanized sheet metal min. thickness 0,8 mm
8
ROCKWOOL Firepro glue - apply on the insulation and fix it to the fire
separation construction
9 Clamp with threaded rod → see pages 87 to 89
1 FDMR
2 Solid ceiling construction
3 Mortar or gypsum
4
Insulation board made of mineral wool, with a surface treatment of
aluminum foil - thickness 180 mm (3x60 mm), min. density 105 kg/m³ -
(ROCKWOOL System Wired Mat 105 Alu)
5
Duct penetration insulation collar - th. 60 mm (System ROCKWOOL
Wired Mat 105 Alu) - glued (pos. 8) and fixed with screws to the wall
construction
variable
≥ 400
≥ 100
60180
EIS 90
* min. 110 mm - Conrete
min. 125 mm - Aerated concrete
Outside solid ceiling constrution - mineral wool ROCKWOOL - mortar or gypsum
■ For connection of following duct → see page 90
■ Minimum and maximum distance between the wall and fire damper is unlimited
■ When installing the insulation, follow the ROCKWOOL manufacturer's instructions
■ The damper and the duct must be suspended separately
■ The duct must be suspended on both sides of damper acc. to national rules
■ Duct between fire damper and fire separating construction must be suspended by using threaded rods and mounting profiles, or another
mounting system acc. to national standards
■ Load of the suspension system depends on weight of the fire damper and duct system → see page 87
■ Max. distance between two suspension systems is 1500 mm
■ Following air-conditioning duct must be suspended or supported so that all load transfer from the following duct to the fire damper is
absolutely excluded. Adjacent duct must be suspended or supported, as required by the duct suppliers
■ If the threaded rod is located inside the duct insulation, distance between threaded rod and duct is max 30 mm
■ If the threaded rod is located outside the duct isolation, distance between threaded rod and isolation is max. 40 mm
