Leveling the Pallets

M&R Printing Equipment, Inc. - Glen Ellyn, Illinois

113

10. Now bring the pallet back up and move the head back

and forward, (by hand), and adjust the base pallet frame so

that surface of the pallet is one business card (.010") from

the edge of the flood bar, throughout the length of the print

stroke of the head. (See Fig. 12 and 12 A)

11. Repeat Step #10 with all the remaining pallets.

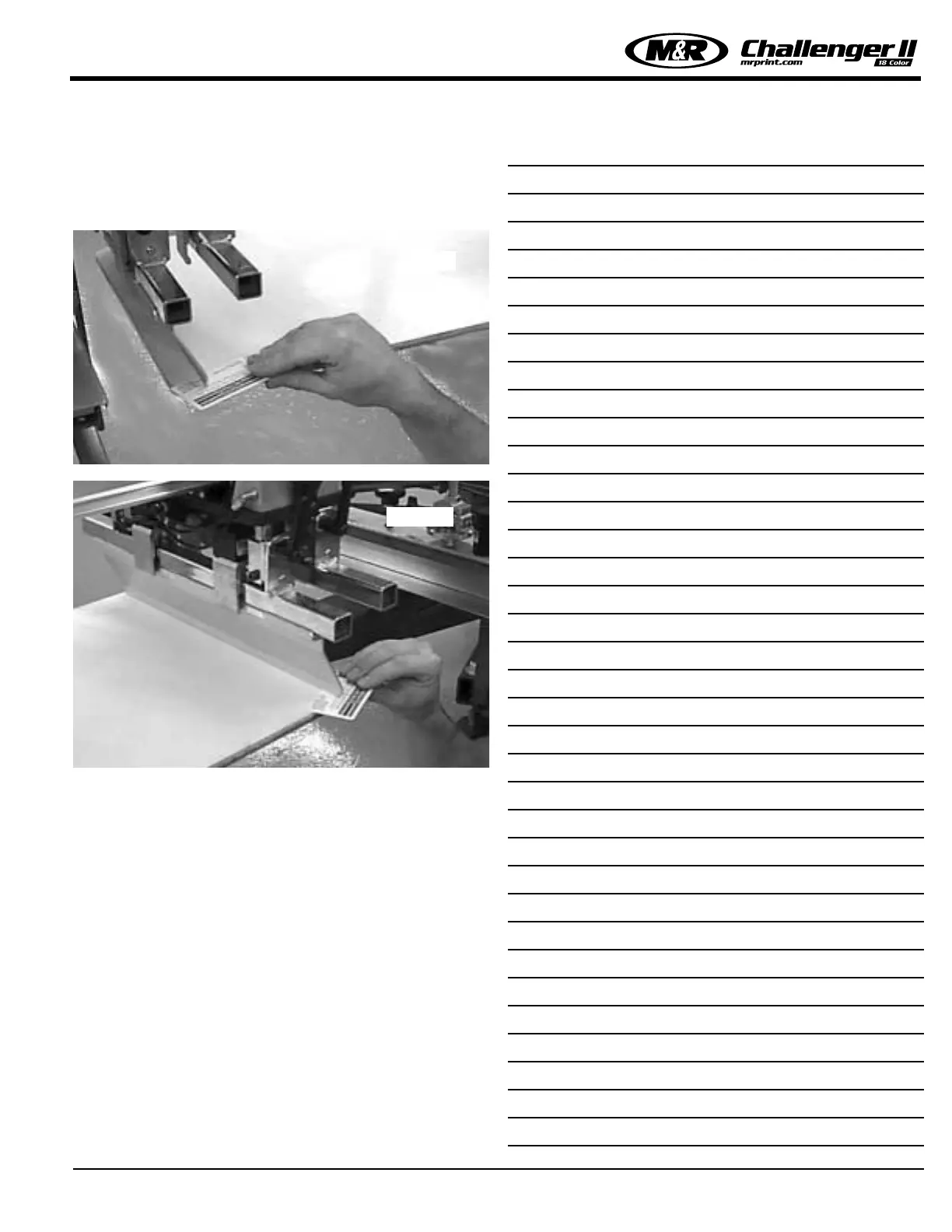

Fig. 12A

Fig. 12
