The “Quartz” timer is used to select the time interval in

which the Quartz Flash unit is activated to flash cure print-

ed garments. The time interval settings are adjusted in the

same manner as described for “Index” timers described

previously. Press the “ARROW DOWN” key until the flash-

ing frame is located around the box used for the Quartz

dwell time. Now use the numerical keys to enter your selec-

tion for Quartz flash dwell time. Be aware that the “Quartz

Flash” timer allows a maximum setting of “15” seconds,

and a minimum of “0” seconds for flash dwell time. Now

press the “ENTER” key to enter your selection into the PLC

memory.

The “Pre-Heat” time interval is used to set the pre-heat

time for the Quartz heating elements. This pre-heat time is

required at the start of the production day when the Quartz

heating elements are at room (ambient) temperature. As

with the “Quartz” timer described above, the maximum

“Pre-Heat” time interval is “15” seconds, with a minimum

of “0” seconds. To pre-heat the Quartz lamps, use the

“ARROW” keys to place the flashing frame around the box

for the “Pre-Heat” indication, now press the “ENTER” key.

Quartz Flash Operation

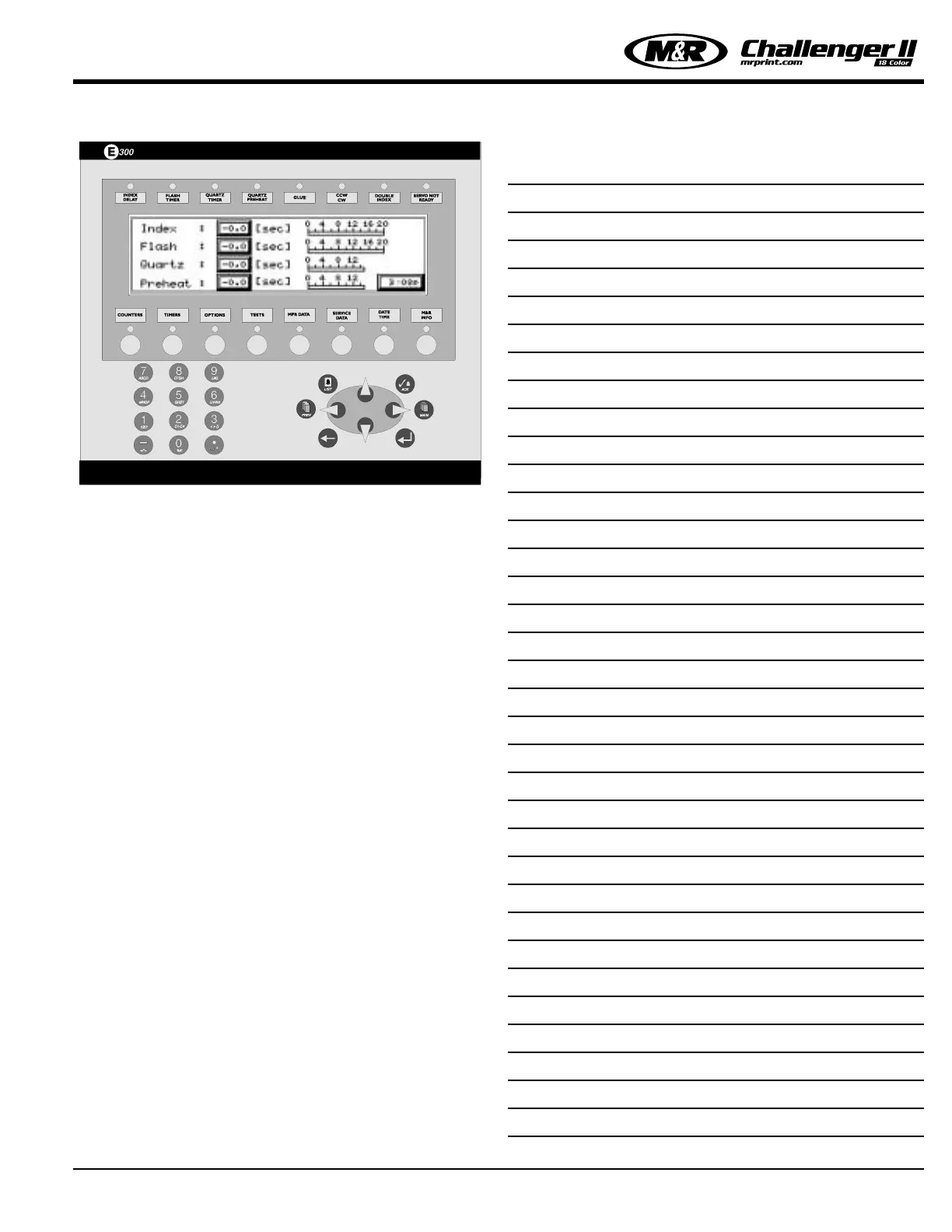

Fig. 11
