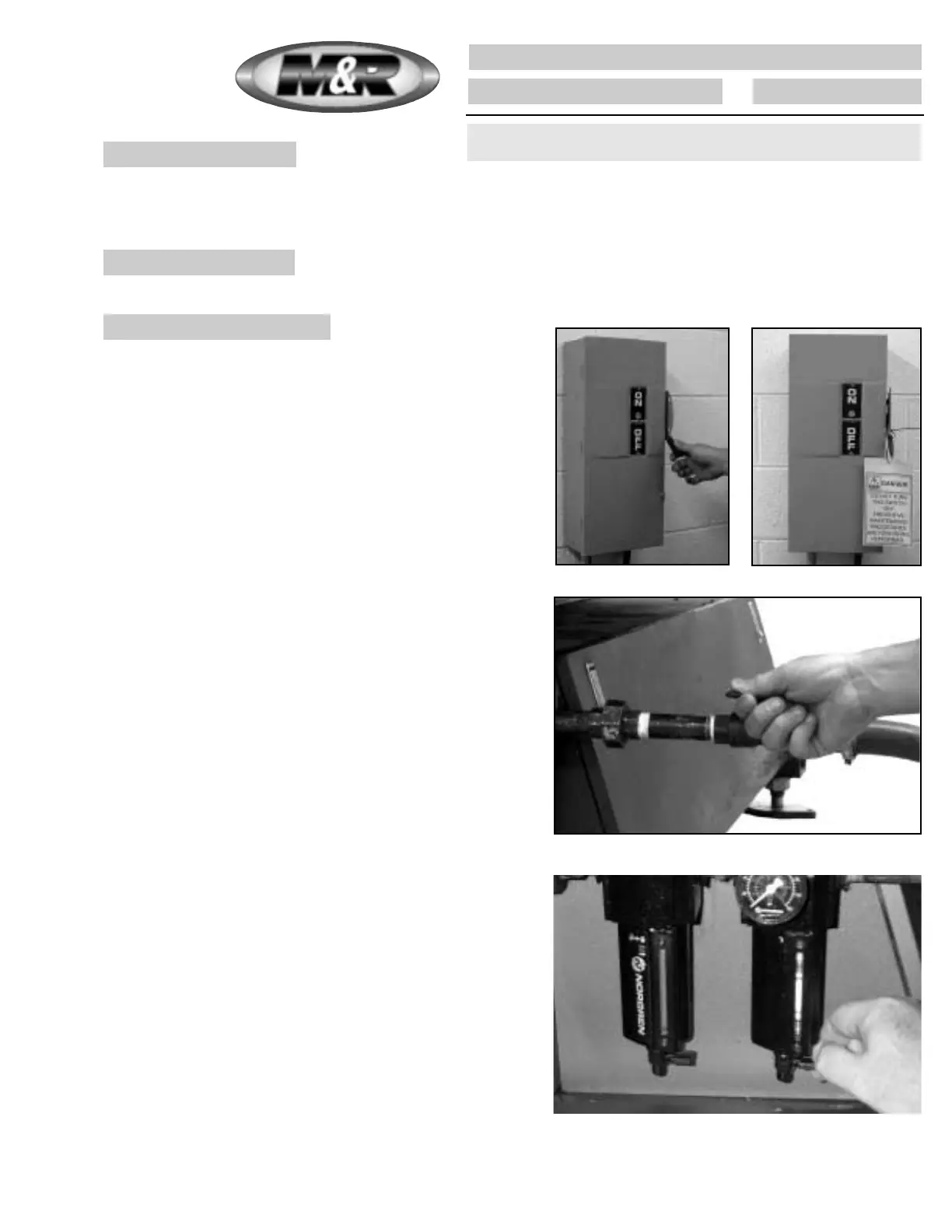

PREVENTIVE MAINTENANCE PROCEDURE

CHALLENGER Series II Bulletin No. PH5

Maintenance Point

Frequency Interval

Procedure Information

Clean away old grease dirt or lint and apply a fresh coat of white lithium grease (M&R Part No. 7018017) to the inside

“U” shaped index drive capture fork.

Monthly

Tools required:1 - M&R Part No. 7018017 White Lithium

Grease

1 - Small Painter’s Brush

1. Disconnect, lock out and tag the electrical and pneumatic

power from the equipment.

2. Disconnect the compressed air supply from the equip-

ment by closing the manual shut-off valve. The manual shut-

off valve is closed when the handle is positioned across the

air supply pipe/hose. (See illustration at right)

3. Bleed off any compressed air which may remain in the

system by opening the small pet-cock valve (turn handle

counterclockwise to open valve) at the bottom of the mois-

ture trap assembly. Allow any compressed air to completely

evacuate the system before closing (turn handle clockwise to

close) the pet-cock valve.

081200MS

The frequency of the following preventive maintenance procedure is

based on a 8 hour daily production shift or 40 hour work week.
