PREVENTIVE MAINTENANCE PROCEDURE

CHALLENGER Series II Bulletin No. PH4

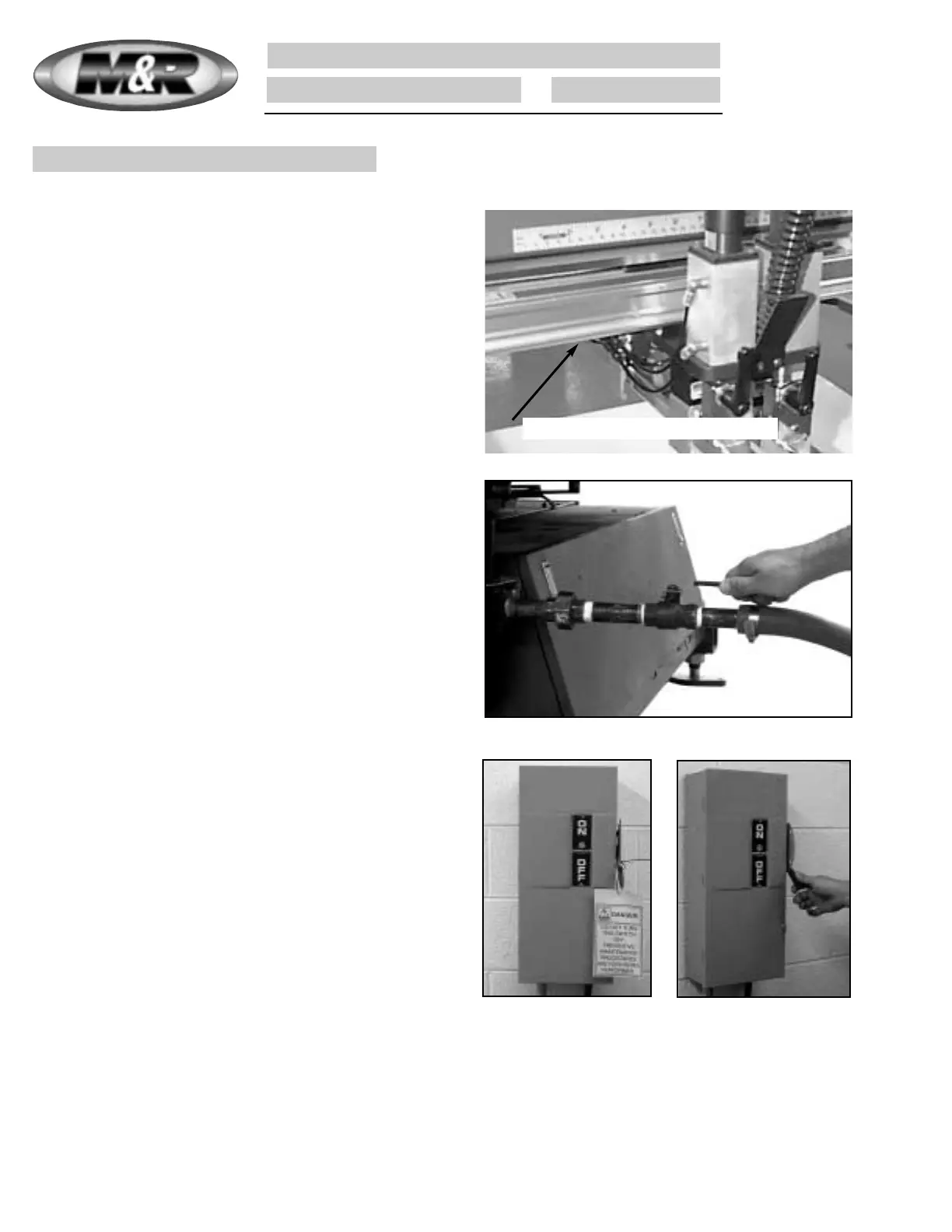

Procedure Information (Cont.)

5. Be sure pet-cock valve on moisture trap assembly is

closed. (See Step No. 3) Open manual shut-off valve for

compressed air supply to the equipment. The manual shut-

off valve is open when the handle is aligned with the incom-

ing compressed air supply line pipe or hose. (See illustration

at right)

6. Remove lock-out tag from electrical disconnect and turn

disconnect switch back “ON” to supply electrical power to

the equipment. (See illustration at right)

4. Using a suitable wiper of cloth shop towel remove the old

oil from the outside surface of the print carriage stroke cylin-

der on each print station. Using a cloth wiper, apply 10 wt.

non-detergent oil along the length of each stroke cylinder.

Only a small amount of oil is required. Excessive application

of oil will only serve to attract lint and other air borne conta-

minant’s to the stroke cylinder surface.

Apply oil along bottom cylinder surface.
