Manfrotto MVG300XM - Balancing the Roll Axis; Balancing the Pan Axis

- 12 -

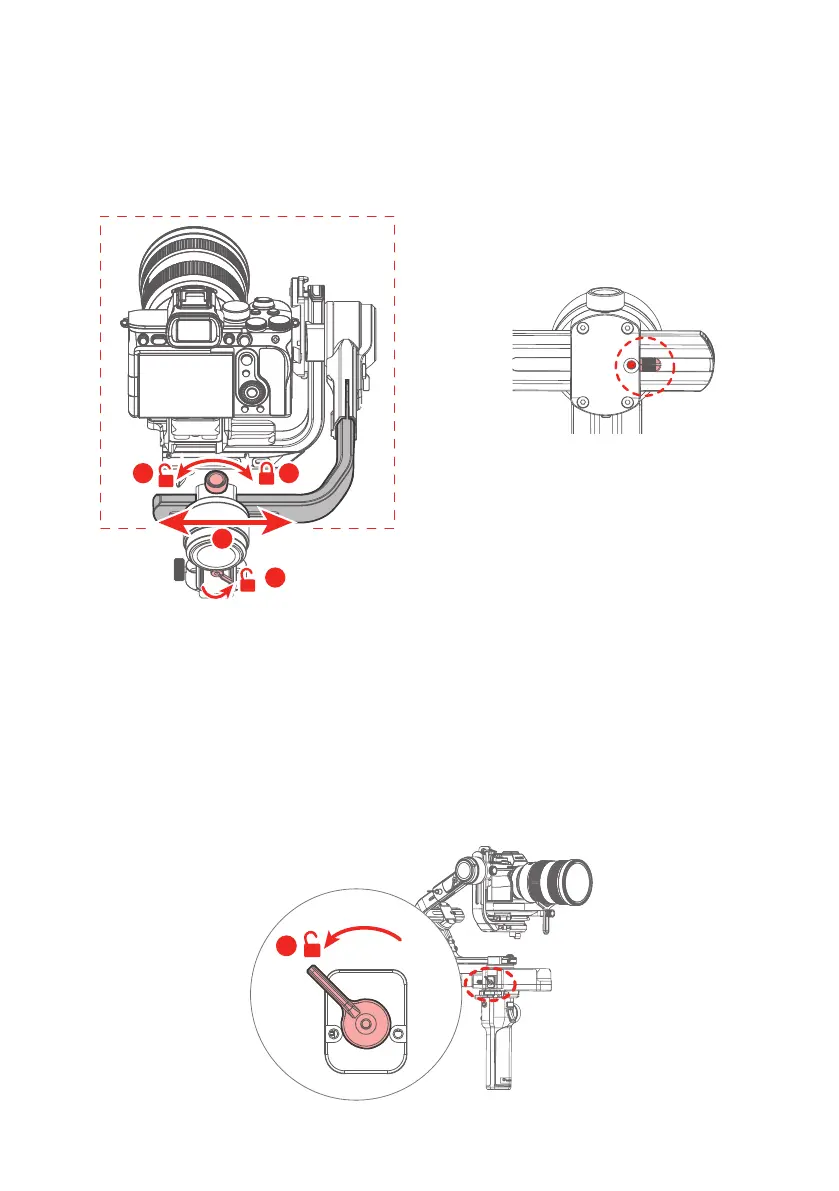

4.2 Balancing the roll axis
① Unlock the roll axis motor lock.
② Unscrew the cross arm screw.
③ Move the cross arm to the balancing position.
④ Tighten the cross arm screw.
2
1
4
3
Use the red memory dot
to mark the balancing
position
4.3 Balancing the pan axis
① Unlock the pan axis motor lock.
② Hold the handle and tilt it (＞15°), position the vertical arm horizontally, unscrew the
vertical arm screw.
③ Move the vertical arm to the balancing position.
④ Tighten the vertical arm screw.
1
