- 6 -

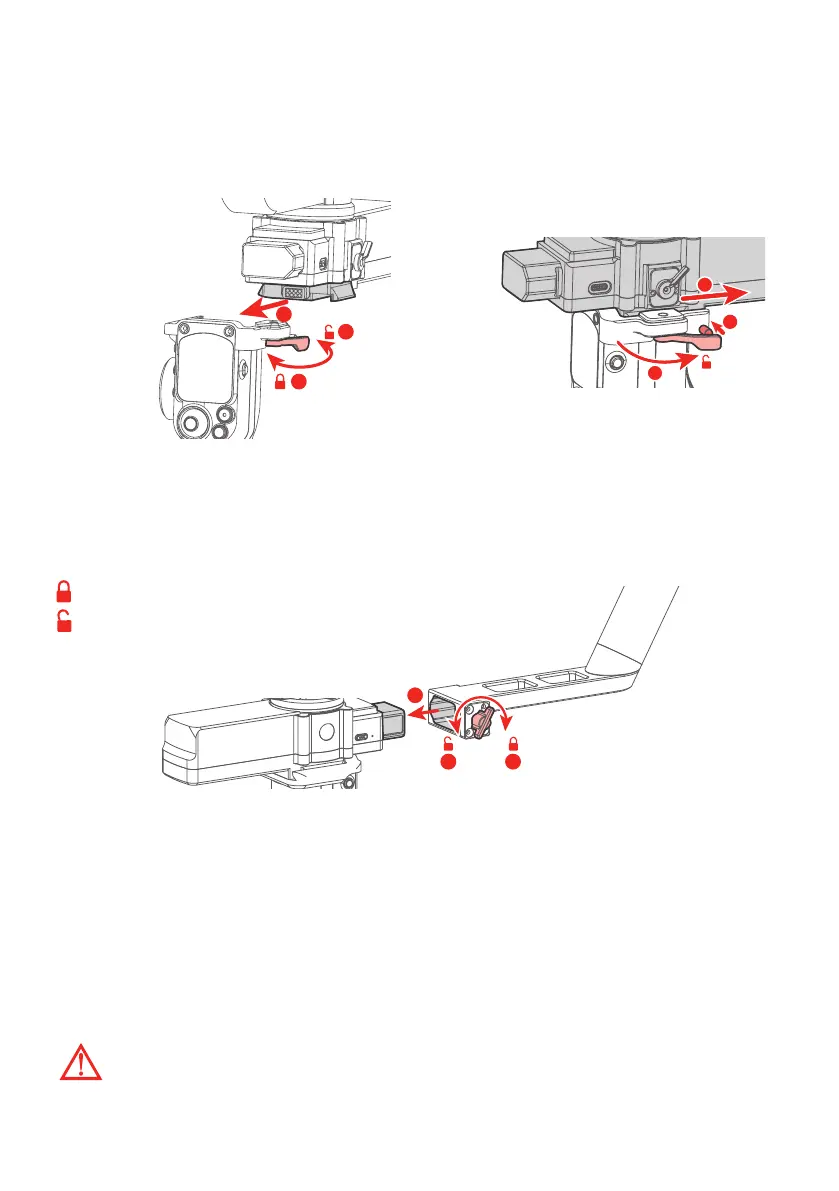

2.3 Installing the handle (remote control)
Slide the metal contact part at the bottom of the gimbal part toward the handle and tighten
the handle safety lock after sliding it into the corresponding groove.
When unloading the handle, unlock the safety lock, release the anti-detachment column, and
slowly push out the gimbal.
Install:
3
1
2
Unload:
1
3
2
2.4 Installing the versatile handle
Unlock the versatile handle screw, insert the versatile handle into the base of the gimbal
(proceed as shown in the gure), then tighten the setting screw.
1
3
2
Lock: clockwise direction
Unlock: counterclockwise direction
2.5 Motor lock
Each of the three rotating axes has one positioning lock for convenient positioning and
storage purposes.
The gimbal is folded by default, please toggle the tilt lock, roll lock, and pan lock levers to the
unlocked position and adjust the gimbal position to Balanced lock status (see Figure 2.5-1),
and then toggle the three locks to the locked position.
Be sure to unlock them before using the gimbal.
