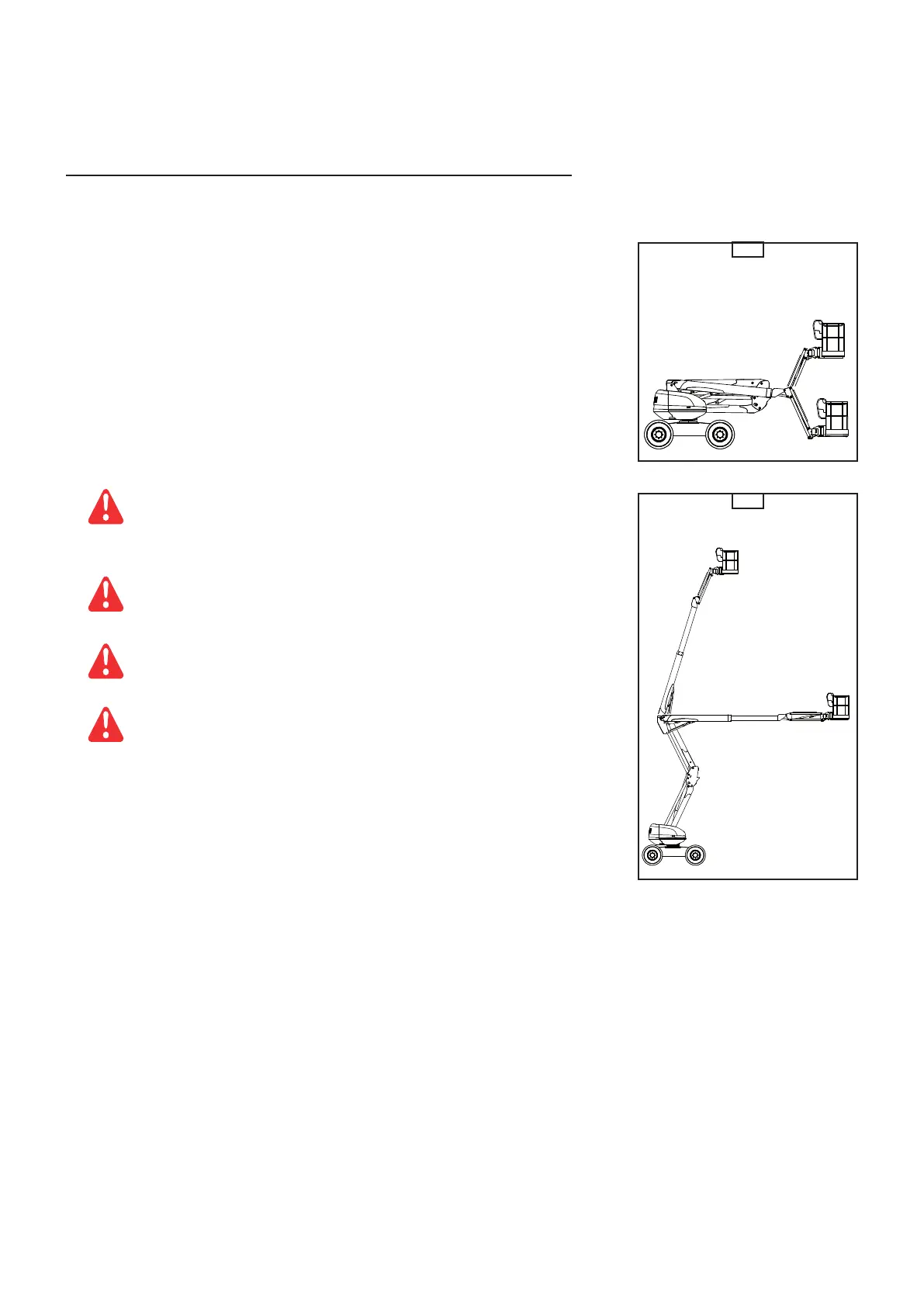

MOVEMENT IN TRANSPORT / WORK MODE
- Before moving or using the machine, remove the turret lock Rep. 15 (see Fig. A).
- The lifting platform has two separate movement modes: Transport mode (Fig. D) and
Work mode (Fig. E) (direction of forward movement (Fig. C)).
- Transport mode: the lifting platform’s arms are in the Low position and the telescope
is retracted; the pendular arm may be raised completely. This mode enables you
to move at high speed and operate beyond the tilt limit of the machine (See the
CHARACTERISTICS section) (Fig. D).
- Work mode : one or more of the lifting platform’s arms are raised and/or the telescope
is extended. In this mode, translations are made at slow speed and the safety systems
for tilt and overload are active (Fig. E).
NB: You must use Ramp speed (full power with the speed restricted to 2 km/h) to cross over
steep slopes or move over very broken ground. This can prove very useful, for instance, if
an access ramp must be borrowed to move the lifting platform onto a truck bed.
In Work mode, any movement over broken ground, loose
sur
faces
, slopes greater than the authorised level of tilt (see the
CHARACTERISTICS section) likely to overturn or unbalance the
lifting platform is PROHIBITED.
The turret must be in the lifting platform’s axis when making a
translation in Hare mode.
Before driving the lifting platform, ensure that the turret is correctly
oriented with respect to the chassis, i.e. in the translation direction
(black and white arrows).
In the case of a steep slope: - no load in the basket;
TRANSPORT MODE
D
WORK MODE
E
