RESCUE PROCEDURE
676992
- This paragraph describes the procedures to follow, the controls to use in the event of
a problem (breakdown of the lifting platform or someone trapped in the basket) while
the lifting platform is working.
- When taking over the machine and regularly afterwards, the details of this procedure
must be read and fully understood by the operator and everyone whose duties are
centred on activities in contact with the machine.
IN THE EVENT OF THE OPERATOR FALLING ILL – PRIORITY SYSTEM
- In the case where the user is taken ill or finds themselves unable to manoeuvre, the
person on the ground can take control of the nacelle from the backup and maintenance
control panel.
- Follow the instructions below.

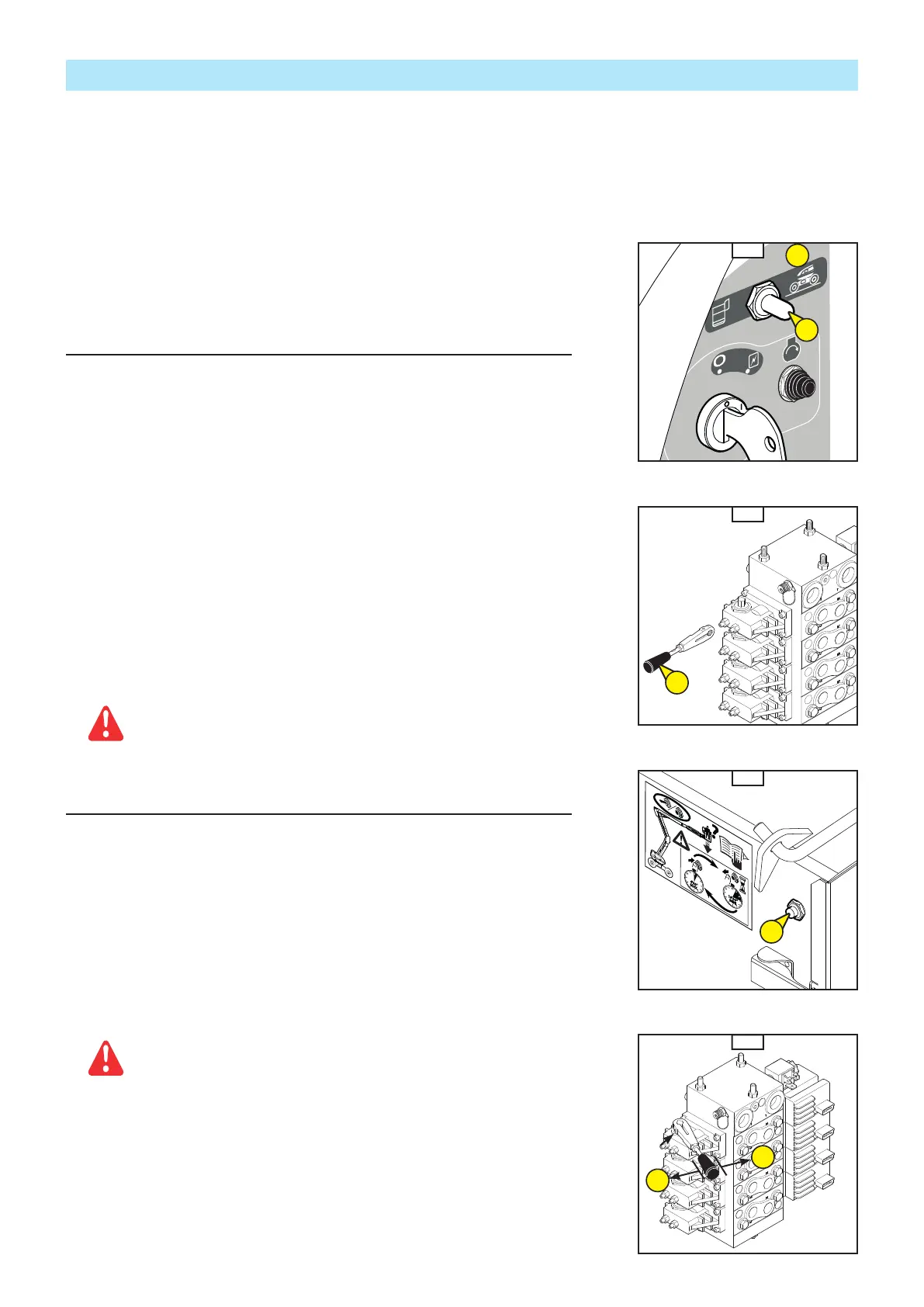

- Switch the contactor 1 (Fig. A) to Position A and hold it down to recover control of the
platform’s movements.
- Proceed to lower the platform using the base controls.
• FROM THE LIFTING PLATFORM NO. 951 458 AND THE LIFTING PLATFORM NO. 950 552
- In the case where the user accidently triggers the basket emergency stop, the person
on the ground can take control of the nacelle from the backup and maintenance
control panel.
- Follow the instructions below.
- Switch the contactor 1 (Fig. A) to Position A and hold it down to recover control of the
platform’s movements.
- Restart the engine 2 (Fig. A).
- Proceed to lower the platform using the base controls.
Pay attention to any constructions or objects that may be under the
lifting platform.
IN THE EVENT OF AN ACCIDENT OR MACHINE BREAKDOWN – EMERGENCY SYSTEM
ELECTRICAL BREAKDOWN
- When an accident occurs or a breakdown makes the electrical control boxes unusable,
the machine is provided with systems for manually performing all the lifting platform’s
movements.
- Lift the turret’s right-hand cover.
- Grasp the control lever 2 (Fig. B) and position it on one of the elements to perform the
desired movement (Figs. D-E-F-G).
During these operations the system does not control:
- T
he Tilt
safety system.
- The Basket Overload safety system.
- To raise and lower the lower arms (set the lever to I).
- Press button 3 (Fig. C) to activate the emergency pump and, at the same time, push
the lever (Fig. D) to:
• A - to lower the lower arms
• B - to raise the lower arms
A
B
C
D
I
1
A
2
3
A
B
