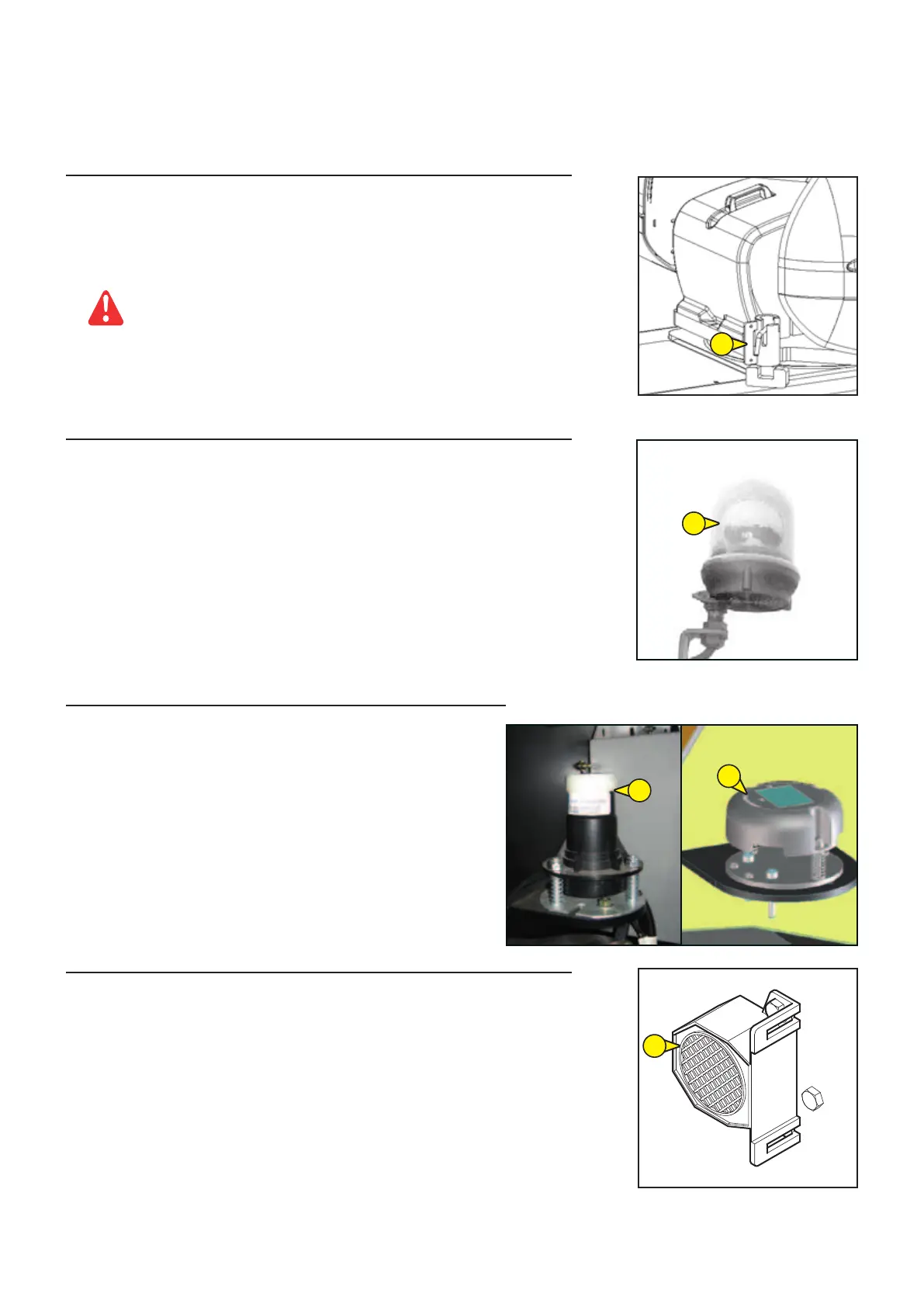

15 - BLOCKING TURRET ROTATION
- This pin must be used when the lifting platform is being transported by truck or some
other means of transport (train, etc...), to prevent the turret from rotating.
- Swivel the pin to the left.
- Push the pin into the hole in the turret provided for this purpose.
Remember to remove it when using the lifting platform.e.
16 - FLASHING LIGHT
- The flashing light illuminates automatically when the lifting platform is in translation
or making a movement.
17 - TILT SENSOR
- This sensor controls the safety buzzer 41 when the lifting platform
has reached the maximum authorised level of tilt. The buzzer sounds
intermittently (see the “SAFETIES” section).
- Two LEDs located under the tilt sensor 17A show its operating status:
• Red LED lit: maximum permissible tilt not yet reached.
• Yellow and red LEDs lit: maximum permissible tilt reached.
18 - BUZZER
- This buzzer (fixed on the outside of the hydraulic box, next to the telescopic arm) is
activated when you press push-button 29 on the basket control station.
15
16
18
17A
17B
647414 EN (27/05/2015)
