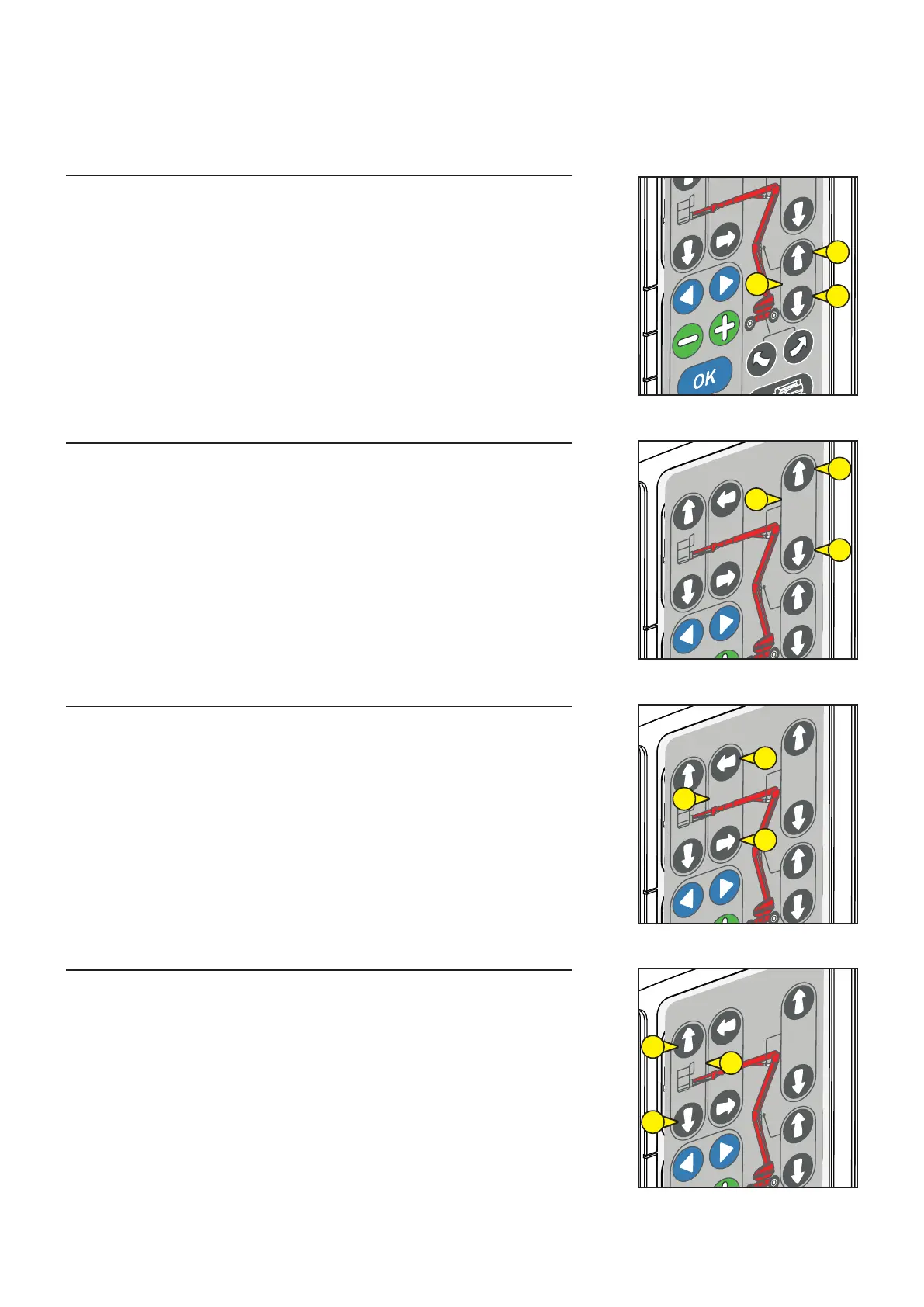

11 - LOWER ARM LIFTING AND LOWERING KEYS
- Using these keys at the same time as pressing button 8 to the Dead Man’s position
enables the lower arms to be lifted and lowered.
A : LIFTING THE LOWER ARMS
- Hold down the Dead Man’s function 8 and press key 11A.
B: LOWERING THE LOWER ARMS
- Hold down the Dead Man’s function 8 and press key 11B.
12 - UPPER ARM LIFTING AND LOWERING KEYS
- Using these keys at the same time as pressing button 8 to the Dead Man’s position
enables the upper arm to be lifted and lowered.
A : LIFTING THE UPPER ARM
- Hold down the Dead Man’s function 8 and press key 12A.
B: LOWERING THE UPPER ARM
- Hold down the Dead Man’s function 8 and press key 12B.
13 - TELESCOPE EXTENSION AND RETRACTION KEYS
- Using these keys at the same time as pressing button 8 to the Dead Man’s position
enables the telescope to be extended and retracted.
A : EXTENDING THE TELESCOPE
- Hold down the Dead Man’s function 8 and press key 13A.
B : RETRACTING THE TELESCOPE
- Hold down the Dead Man’s function 8 and press key 13B.
14 - PENDULAR ARM LIFTING AND LOWERING KEYS
- Using these keys at the same time as pressing button 8 to the Dead Man’s position
enables the pendular arm to be lifted and lowered.
A : LIFTING THE PENDULAR ARM
- Hold down the Dead Man’s function 8 and press key 14A.
B: LOWERING THE PENDULAR ARM
- Hold down the Dead Man’s function 8 and press key 1
11
11A
11B
12
12A
12B
13
13B
14A
14
14B
13A
647414 EN (27/05/2015)
